Product Details:
|
| Name: | Liquid Flow Switches | Warranty: | 1 Year |
|---|---|---|---|
| Customized Support: | OEM | Protection: | IP65 |
| Certification: | CE | Contact Arrangement: | SPDT |
| Electrical Rating: | 15(8)A 24/250VAC | Permissible Temperature: | Paddle（-20 ~ 120℃） |
| Installation: | Vertical Installation | Delivery: | 3-5 Working Days |
| Cable: | M18 | Sensing Element: | Paddle |
| High Light: | 250V flow switch for chiller,24v flow switch for chiller,15a chiller flow switch |
||

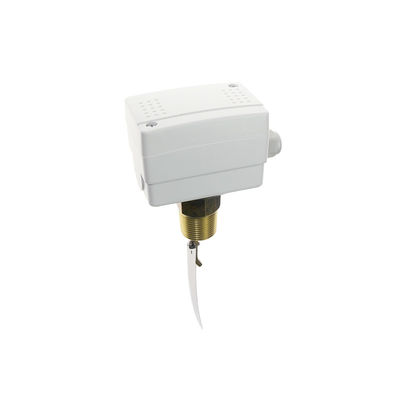

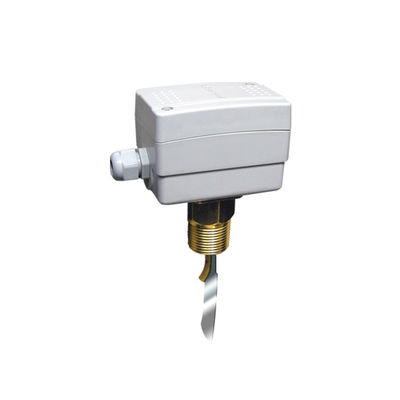

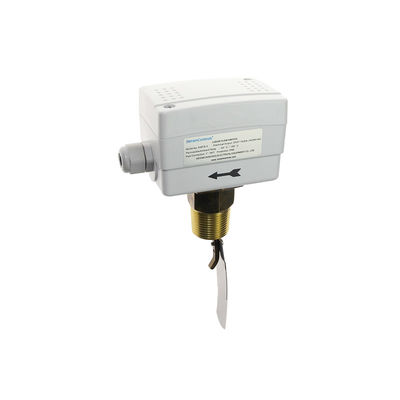

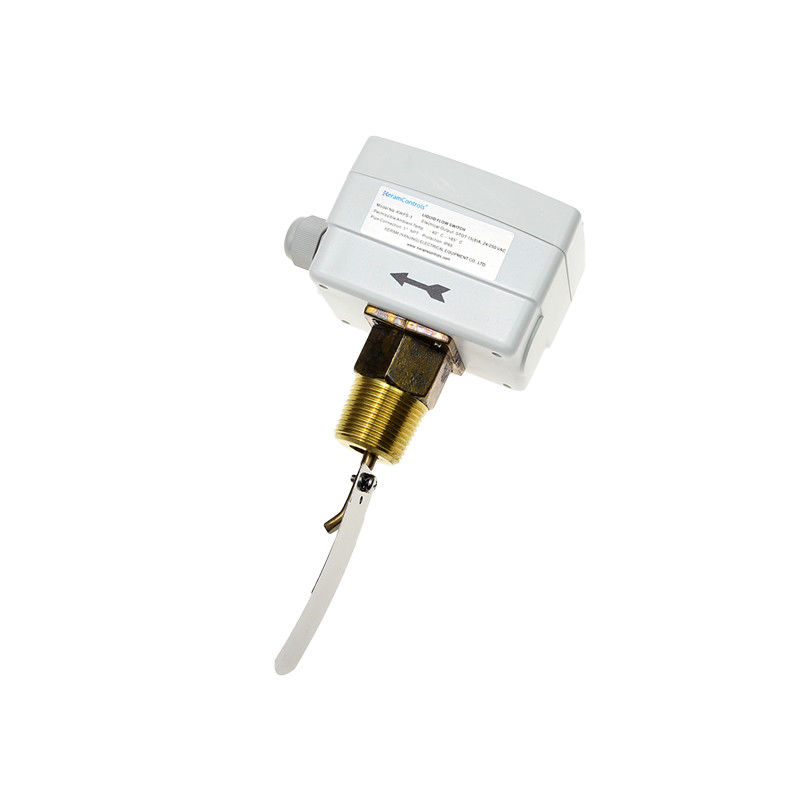

The KWFS series liquid flow paddle switch, suited for pipes of industrial plants: heating and air conditioning, refrigeration systems and heat pumps. Flow control of water and normal media.
The KWFS series liquid flow paddle switch offers an economical flow proving solution.
The paddles are adjustable to fit 1 to 8" size pipe.
| Model | KWFS |
| Type of peration | On/Off, single-stage, mircro switch |
| Output | SPDT 15(8A) 24/250VAC |
| Flow rates | see flow rate table |
| Flow rate setting | Internal srew |
| Sensing element | Paddle |
| Liquid applications | Hot, chilled, well, pool and sea water, brine or ethylene glycol |
| Parts material in contact with fluid | Brass |
| Paddle material | Stainless steel |
| Liquid temperature | -20 ~ 120℃ |
| Permissible ambient temperature | -40 ~ 85℃ |
| Permissible ambient humidity | 10~90%RH |
| cable galnd | M18 |
| Housing material | Fire Resistance ABS or PC |
| Protection | IP65 |
| Color | White |
| Weight | 1.0KG |
