Product Details:
|
| Name: | Air Differential Pressure Transmitter | Certification: | CE |
|---|---|---|---|
| Warranty: | 1 Year | Customized Support: | OEM |
| Protection: | IP65 | Accuracy: | 1.0% FS |
| Pressure Range: | 0~100...1,000Pa...10,000Pa | Power Supply: | 16-30Vac/dc |
| Output Signal: | 4-20mA, 0-10V, 0-5V, RS485 | Operation Temperature: | -20~+80℃ |
| Meida: | Air And Neutral Gases | Material: | ABC+PC |
| High Light: | 20mA Digital Differential Pressure Transducer,4mA Digital Differential Pressure Transducer,IP65 pressure transmitter with display |
||

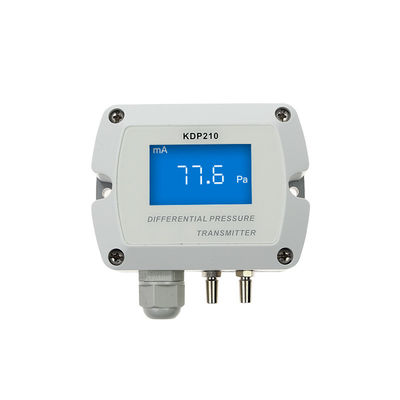

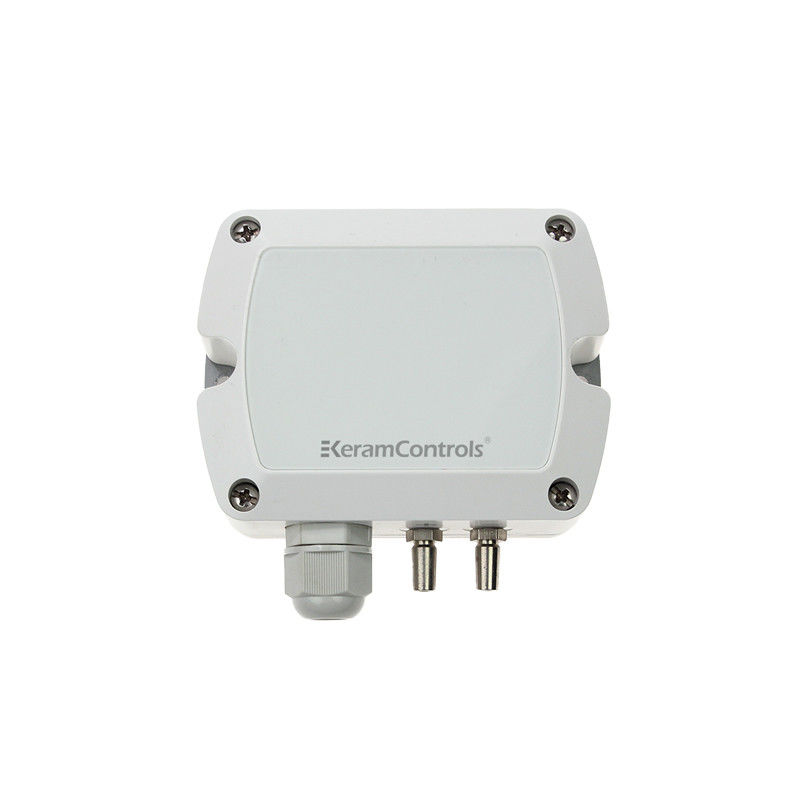

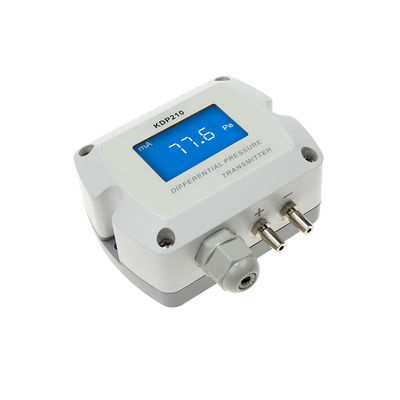

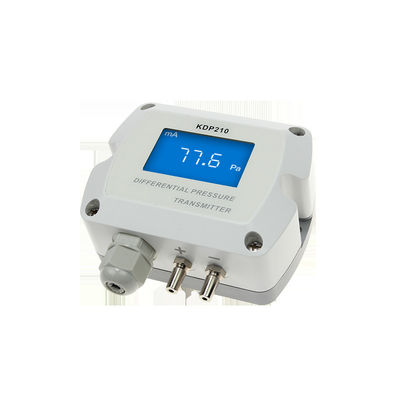

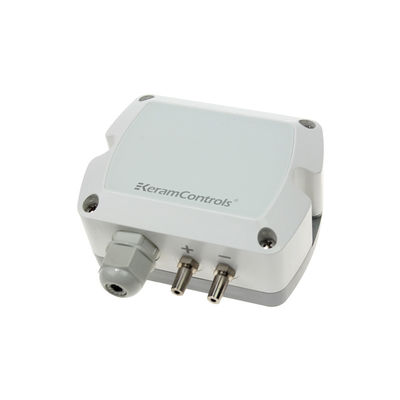

Industry Automation DPT Differential Pressure Transmitter 4-20mA Output
The KDP210 differential pressure transmitter has high accuracy, ultra-low & adjustable range, fast response characteristics, widely used in clean electronics and pharmaceutical factories, as well as large commercial buildings, medical centers and transportation hub.
KDP210 transmitters are engineered for building automation in the HVAC/R industry. The most technologically advanced transmitters on the market measuring static and differential pressure, with field selectable units, range and output, all in a single device.
Range from ±100Pa ~ ±10000Pa (according to models)
Manual zero
Input voltage:16~30Vac/Vdc
0-10, 0-5V, 4-20mA, RS485 signal output
LCD backlight display
Standard accuracy < 1% FS
IP house protection
| Model | KDP210 |
| Measurement units | Pa, mmH2O, inHG, KPa, mbar |
| Accuracy |
<1% FS |
| Response time | 0.1s, 0.5s, 1s, 2s |
| Repeatbality | ±0.01% FS / year |
| Resolution | 1 Pa, 1 mmH2O, 0.04inHG, 0.01KPa, 0.01mbar |
| Media | AIr and neutral gases |
|
Operating temp |
-20 to 80℃ |
| Stroage temp | -40 to 80℃ |
| Power consumption | <3W |
| Tolerated overpressure | x 15 FS |
| Power supply | 16-30VAC/DC |
| Housing material | Polycarbonate & ABS, UL94V-0 |
| Protection | IP65 |
| Display | LCD backlight |
| Cable gland | M16*1.5 |
