3 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA

3 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA
3 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA
3 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA 3 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA 3 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA 3 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA

Large Image :  3 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KLDP
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: USD90-120/piece EXW factory
Packaging Details: Carton
Delivery Time: 30 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 pcs per month

3 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA

Description
Name: Liquid Differential Pressure Transmitter Customized: OEM
Measurement Unit: Mbar Certification: CE
Accuracy: <0.25% FS Response: 1s
Media: Air, Oil, Water Operating Temp: -20 To 80℃
Storage Temp: -40 To 80℃ Tolerated Overpressure: X15
Power Supply: 24Vac/dc Output: 4-20mA 0-10V
Housing Metrial: Brass, SS Protection: IP65
High Light:

4mA 5V Liquid Differential Pressure Transmitter

,

4mA Liquid Differential Pressure Transmitter

,

Keram Controls transmitter pressure sensor

3 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA



Description

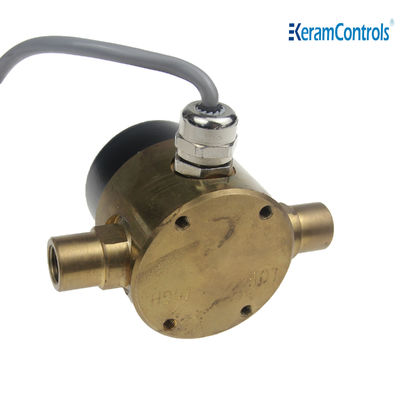

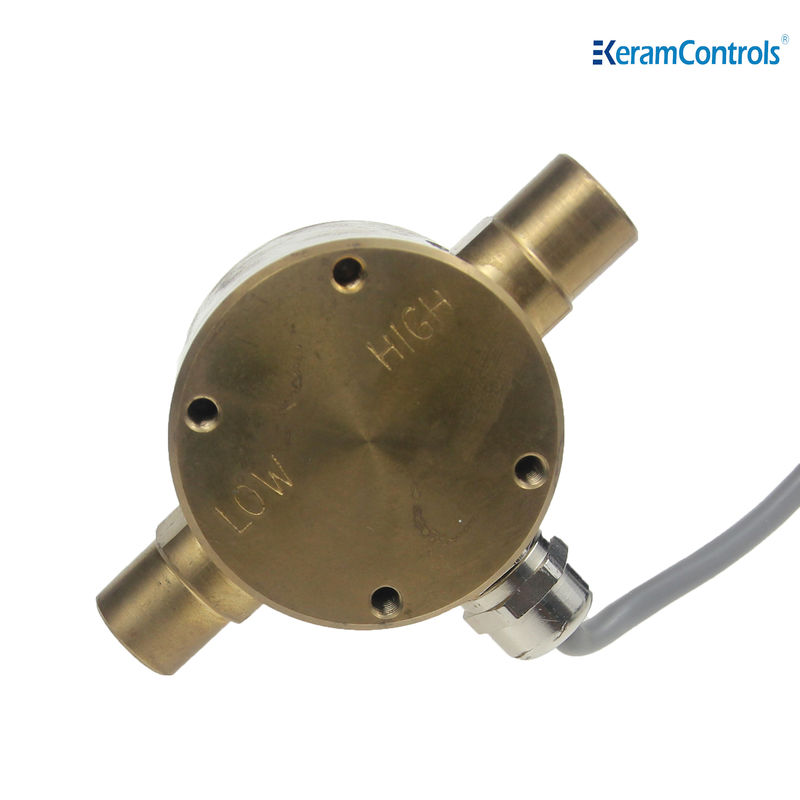

KLDP Series DPT

Liquid Differential Pressure Transmitter 0-5V 3 Wire Output IP65



The KLDP series differential pressure transmitter use a piezo-resistive sensor and incorporate zero and span adjustment.

For all applications where air, oil or water are to be monitored.

They are ideal for use in areas requiring exact pressure measurement, 0.25% high accuracy, low hysteresis and long term stability.


Features



  • Ranges from 0 to 35 mbar to 0 to 17 bar (according to models)
  • Voltage, current output
  • Standard accuracy <±0.25% FS
  • IP65 house protection
  • Repeatability 0.1% FS/Year typical
  • Temperature Range -20 to +80°C
  • Pressure Connection 1/8” BSP Female Brass
  • Line Pressure 34 Bar G

Application



KLDP series pressure transmitters are suitable for measuring pressure in all applications

where air, oil or water are to be monitored. Also compatible with refrigerants. They are

suitable for all kind of tasks in air-conditioning, heating and water systems.


Technical Data



Model KLDP
Measurement units mbar
Accuracy <±0..25%FS
Response time 1s
Repeatability ±0.1% at FS/year
Media Air, oil or water
Operating temperature -20 to +80℃
Storage temperature -40 to +80°C
Tolerated over pressure x15
Power Supply 24Vac/dc
output signal 4-20mA(2wires)
0-5/0-10VDC (3 wires)
Housing material Brass/Stainless steel
Protection class I65/NEMA4




































Dimensions(mm)



3 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA 0


Ordering Guide



KLDP-Ranges-Output-House material



Model Range Output House Material
KLDP 0 to 35 mbar (1) 4-20mA(2 wires) (E) Brass (B)
0 to 70 mbar (2) 0-5/0-10VDC (3 wires) (F) Stainless Steel (C)
0to 350 mbar (3)
0 to 1 bar (4)
0 to 2 bar (5)
0 to 7 bar (6)
o to 17 bar (7)






















Order examples



KLDP-3-E-B



Model KLDP differential pressure transmitter
Ranges 0 to 350 mbar
Output 4-20mA(2 wire)
House material Brass



3 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA 1

3 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA 23 Wire 0-5V Liquid Differential Pressure Transmitter 4-20mA 3



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
