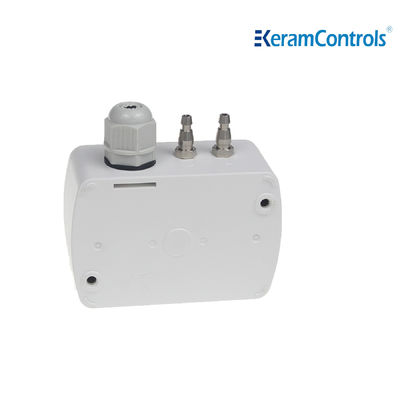

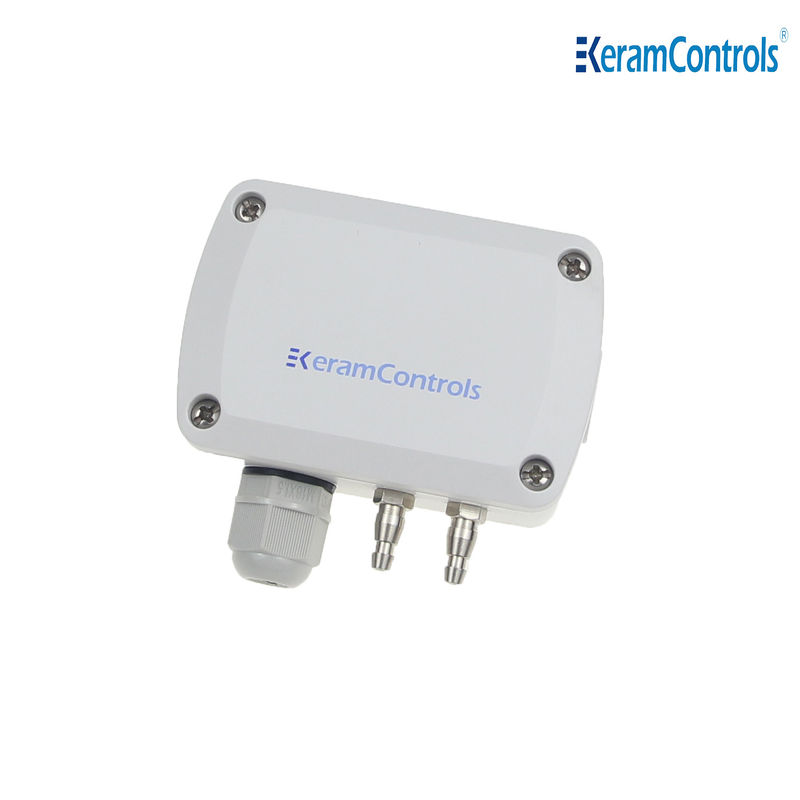

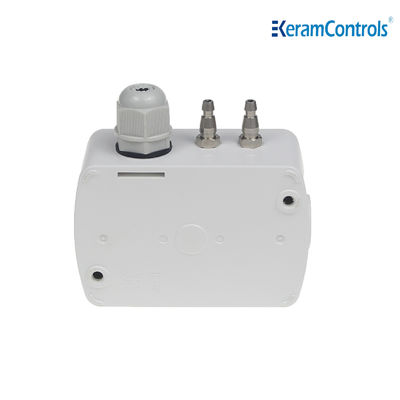

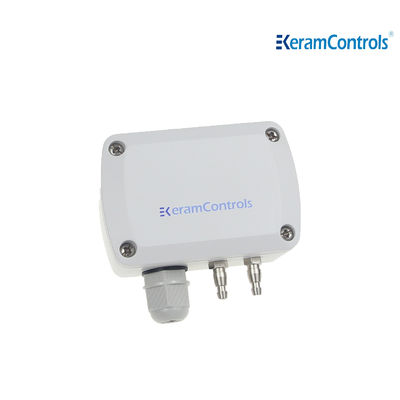

Two Wire DPT Differential Pressure Transmitter Sensor HVAC System

Two Wire DPT Differential Pressure Transmitter Sensor HVAC System
Two Wire DPT Differential Pressure Transmitter Sensor HVAC System
Two Wire DPT Differential Pressure Transmitter Sensor HVAC System Two Wire DPT Differential Pressure Transmitter Sensor HVAC System Two Wire DPT Differential Pressure Transmitter Sensor HVAC System Two Wire DPT Differential Pressure Transmitter Sensor HVAC System Two Wire DPT Differential Pressure Transmitter Sensor HVAC System

Large Image :  Two Wire DPT Differential Pressure Transmitter Sensor HVAC System

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

Two Wire DPT Differential Pressure Transmitter Sensor HVAC System

Description
Model: KDP110 Measurement Units: Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy: <±1% FS@-5 To +65℃
Highlight:

white DPT Differential Pressure Transmitter

,

two Wire DPT Differential Pressure Transmitter

,

differential pressure sensor hvac

100pa -1000pa 4-20ma 2 Wire DPT Differential Pressure Transmitter Sensor HVAC



Description

KDP110 difffferential pressure transmitter has the characteristics of high accuracy,ultra-low adjustable range and fast response. It is widely used in the clean rooms of electronic and pharmaceutical factories, as well as the automatic control system of commercial buildings, HVAC air conditioning processor system,medical centers and transportation hubs.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection
  • When ≤100Pa,accuracy<±3%FS±2Pa

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP110
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Cable Gland M16*1.5

Dimension



Two Wire DPT Differential Pressure Transmitter Sensor HVAC System 0Two Wire DPT Differential Pressure Transmitter Sensor HVAC System 1


Measuring range adjustment



Two Wire DPT Differential Pressure Transmitter Sensor HVAC System 2


Output setting(3 wire Model)



Two Wire DPT Differential Pressure Transmitter Sensor HVAC System 3

Two Wire DPT Differential Pressure Transmitter Sensor HVAC System 4


Manual Zero-point correction



Two Wire DPT Differential Pressure Transmitter Sensor HVAC System 5


Ordering guide



KDP110-Range-Output



Model Range Output
KDP110 -100~+100Pa (1) 4-20mA(2 wire) (E)
-1000~+1000Pa (2) 4-20mA(3 wire) (F)
-2000~+2000Pa (3) 0-5/0-10V(3 wire) (G)
-10000~+10000Pa (4) RS-485 (H)
    Customized



Two Wire DPT Differential Pressure Transmitter Sensor HVAC System 6

Two Wire DPT Differential Pressure Transmitter Sensor HVAC System 7

Two Wire DPT Differential Pressure Transmitter Sensor HVAC System 8



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
