2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms

2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms
2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms
2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms 2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms 2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms 2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms 2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms

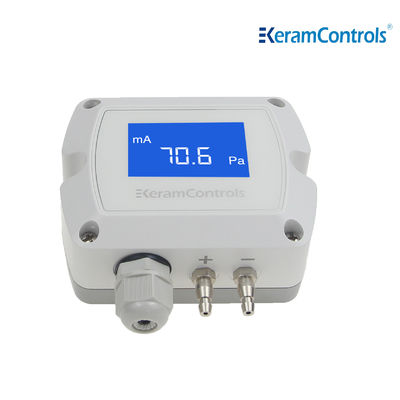

Large Image :  2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms

Description
Model: KDP210 Measurement Units: Pa,mmH2O,inWG,mmHG,KPa,mbar
Media: Air And Neutral Gases
High Light:

4-20ma abb differential pressure transmitter

,

2 wire abb differential pressure transmitter

,

Pharmaceutical digital differential pressure sensor

2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms



Description



The differential pressure transmitter is a transmitter that measures the pressure difference between the two ends of the transmitter, and outputs standard signals (such as 4~20mA, 0~5V). Differential pressure transmitters are different from general pressure transmitters in that they have 2 pressure interfaces. Differential pressure transmitters are generally divided into positive pressure ends and negative pressure ends. Under normal circumstances, differential pressure transmitters have positive pressure The pressure at the end should be greater than the pressure in the negative pressure section to measure.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display
Cable Gland M16*1.5

Dimension(mm)



2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms 0

2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms 1


Measuring range adjustment



2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms 2


Output setting(3 wire Model)



2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms 3

2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms 4


Manual Zero-point correction



2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms 62 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms 7

2 Wire 4-20mA ABB Differential Pressure Transmitter Sensor For Pharmaceutical Clean Rooms 8



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
