Product Details:
|
| Power Supply: | 16-30VDC(2wire 4-20mA)/16-30V AC Or V DC (0-5V/0-10V/4-20mA/RS-485 ) | Output: | 4-20mA |
|---|---|---|---|
| Measurement Range: | 0...100%RH | Accuracy: | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Temperature Dependence: | ±0.01℃/℃ | Stability In Typical HVAC Applications: | ±0.01RH/Year |
| Highlight: | KTH500 humidity temperature pressure sensor,4-20mA humidity temperature pressure sensor,HVAC temperature & humidity transmitter |
||

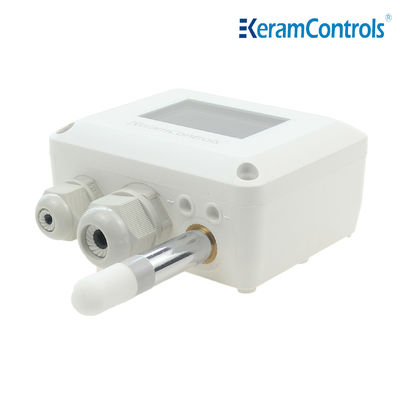

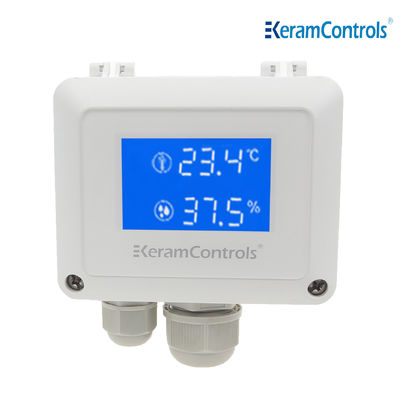

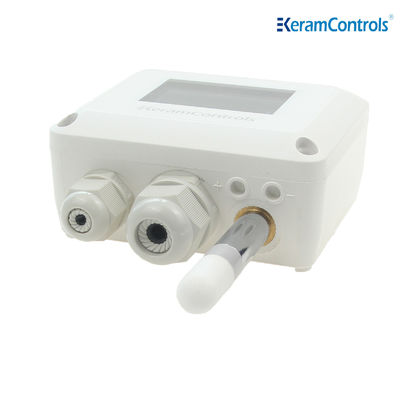

KTH500 is a relative humidity transmitter with temperature output installed in air ventilation duct. In addition to these measured values, KTH500 calculates various parameters such as dew point, mixing ratio, enthalpy and absolute humidity. Illuminated display ensures easy readability also from a distance. KTH500 has a screwless lid and an easily adjustable mounting flange that make the installation of the device easy.
Large size backlight display
More convenient wiring and setting
Cable size φ5…12mm
Prevent the pollution of the shell surface in harsh environment
| Model | KTH500 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Display | LCD |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
