Product Details:
|
| Model: | KTS100 | Operating Temperature: | -40...+70°C |
|---|---|---|---|
| Media: | Air Or Liquid | Protection Class: | IP65 |
| High Light: | KSV electromagnetic solenoid valve,CE electromagnetic solenoid valve,shock proof electromagnetic hydraulic valve |
||

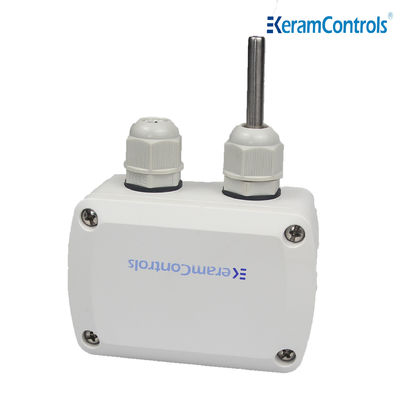

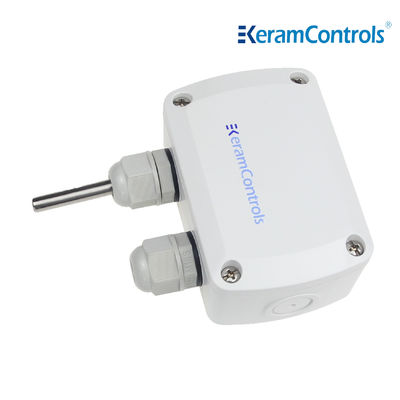

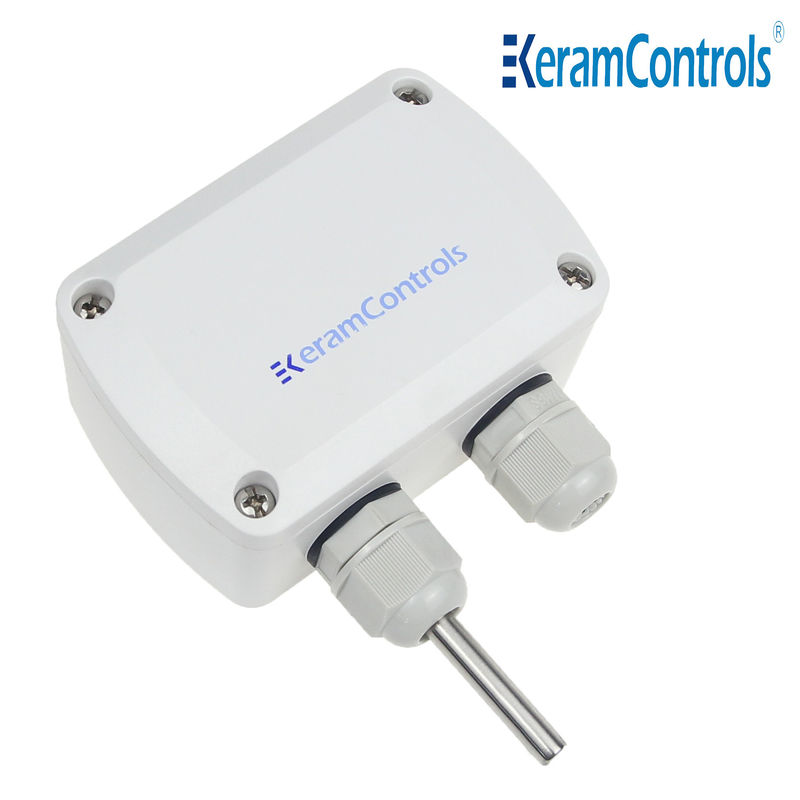

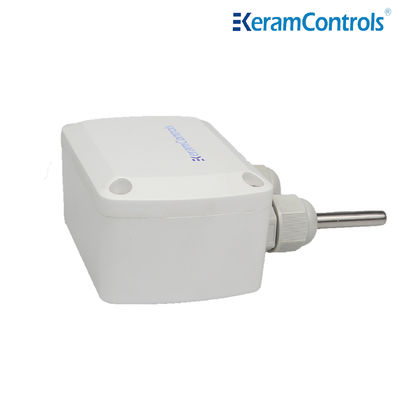

KTS100 series temperature sensor is a high-precision sensor, can accurately measure temperature changes, while its shell using PC and ABS composite materials, can be used in relatively harsh environments, so that its life extension, reduce customer costs.
KTS100 temperature transmitter used for temperature measurement in heating,
ventilation and air conditioning systems enabling weather-dependent
temperature regulation.
| Model | KTS100 |
| Temperature Sensitive Element | PT100 Class A Accuracy ±(0.15+0.002t) |
| PT 1000 Class A Accuracy ±(0.15+0.002t) | |
| NTC 10k B3950 Accuracy B:3989K±1% | |
| NTC 10k B3435 Accuracy B:3435K±1% | |
| NTC 1k Accuracy B:3500K±1% | |
| NTC 2k Accuracy B:3977K±0.3% | |
| Response Time | <1min |
| Element Connection | 2-wire |
| Media | Air or liquid |
| Operating Temperature | -40...+70°C |
| Storage Temperature | -30...+70°C |
| Measuring Range | -40...+200°C |
| Housing Material | PC & ABS, UL94-V0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
KTS100-Range-Element
| Model | Range | Element |
| KTS100 | PT100 Class A | (1) |
| PT1000 Class A | (2) | |
| NTC 10k B395 | (3) | |
| NTC 10k B3435 | (4) | |
| NTC 1k | (5) | |
| NTC 2k | (6) |
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
