-40~+200℃ PC And ABS Plastic Temperature Sensor For Heating
| Temperature Sensitive Element: | NTC 10k B3950 Accuracy B:3989K±1% | Operating Temperature: | -30...+ 70℃ (body) / -30...+ 200℃(probe) |
|---|---|---|---|
| Highlight |
200deg ABS Plastic Temperature Sensor,IP65 PC Plastic Temperature Sensor |
||

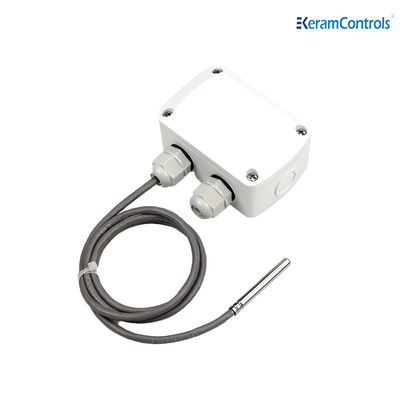

-40~+200℃ PC and ABS plastic temperature Sensor for heating
Description
KTS120 is a cost-effective temperature sensor, which is specially designed for temperature measurement and can be adapted to various environments.
Feature
- Range from -40 to +200°C
- Resistance output
- Standard accuracy, see table
- Protection class: IP65 / NEMA 4
Application
KTS120 temperature transmitter used for temperature measurement in heating, ventilation and air conditioning systems enabling weather-dependent temperature regulation.
Technical Data
| Model | KTS120 |
| Temperature Sensitive Element | PT100 Class A Accuracy ±(0.15+0.002t) |
| PT 1000 Class A Accuracy ±(0.15+0.002t) | |
| NTC 10k B3950 Accuracy B:3989K±1% | |
| NTC 10k B3435 Accuracy B:3435K±1% | |
| NTC 1k Accuracy B:3500K±1% | |
| NTC 2k Accuracy B:3977K±0.3% | |
| Response Time | <1min / < 30s, measuring the liquid in the pipeline |
| Element Connection | 2-wire |
| Media | Air or liquid |
| Operating Temperature | -30...+ 70℃ (body) / -30...+ 200℃(probe) |
| Storage Temperature | -30...+70°C |
| Measuring Range | -40...+200°C |
| Housing Material | PC & ABS, UL94-V0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
Notes On Disposal
Product Certification
Additional Instructions
Temperature compensation
| Probe length | Cable resistance | Temperature compensation |
| 0.5m | 0.086Ω | 0.22℃ |
| 2m | 0.344Ω | 0.88℃ |
| 3m | 0.516Ω | 1.32℃ |
*When the temperature resistance of high resistance value (R>1000Ω), the temperature compensation can be ignored
Dimensions(mm)
Ordering Guide
KTS120- Element-Probe length
| Model | Element | Probe length | ||
| KTS120 | PT100 Class A | (1) | 0.5m | (A) |
| PT1000 Class A | (2) | 2m | (B) | |
| NTC 10k B395 | (3) | 3m | (C) | |
| NTC 10k B3435 | (4) | |||
| NTC 1k | (5) | |||
| NTC 2k | (6) | |||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
