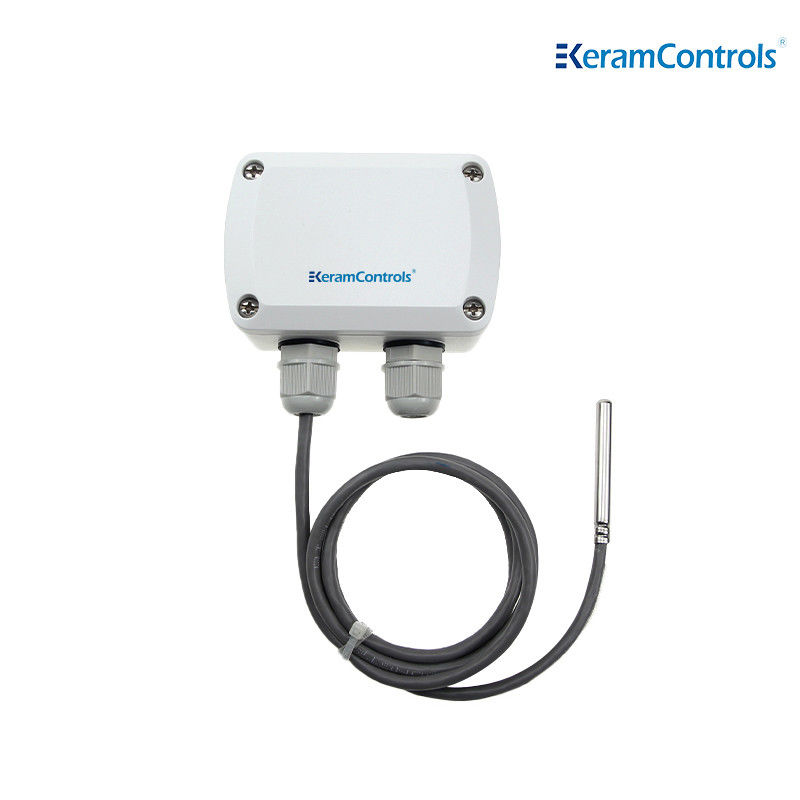

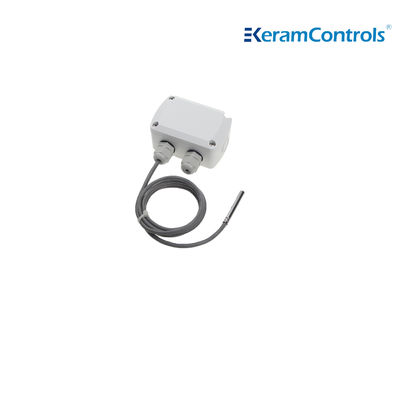

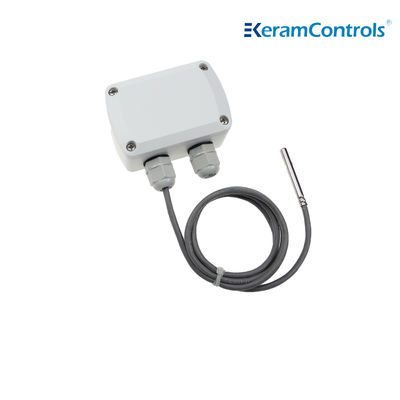

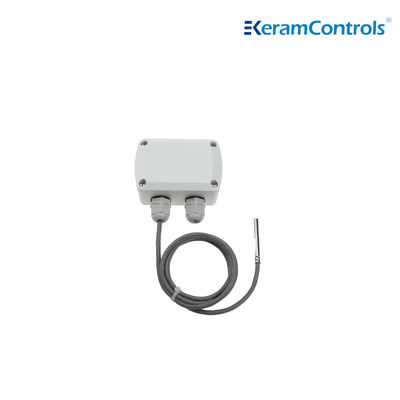

0.5m Probe Length Temperature Sensor For Air Condition

0.5m Probe Length Temperature Sensor For Air Condition
0.5m Probe Length Temperature Sensor For Air Condition
0.5m Probe Length Temperature Sensor For Air Condition 0.5m Probe Length Temperature Sensor For Air Condition 0.5m Probe Length Temperature Sensor For Air Condition 0.5m Probe Length Temperature Sensor For Air Condition 0.5m Probe Length Temperature Sensor For Air Condition

Large Image :  0.5m Probe Length Temperature Sensor For Air Condition

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTS120
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

0.5m Probe Length Temperature Sensor For Air Condition

Description
Temperature Sensitive Element: NTC 1k Accuracy B:3500K±1% Measuring Range: -40...+200°C
Operating Temperature: -30...+ 70℃ (body) / -30...+ 200℃(probe)
High Light:

0.5m Probe Length Temperature Sensor

,

IP65 Air Condition Temperature Sensor

0.5m probe length temperature Sensor for air condition



Description



KTS120 cable temperature sensor can provide different lengths of cable to meet different working requirements. Customers can purchase according to their own needs, and there are many different temperature sensors to choose.


Feature



  • Range from -40 to +200°C
  • Resistance output
  • Standard accuracy, see table
  • Protection class: IP65 / NEMA 4

Application



KTS120 temperature transmitter used for temperature measurement in heating, ventilation and air conditioning systems enabling weather-dependent temperature regulation.


Technical Data



Model KTS120
Temperature Sensitive Element PT100 Class A Accuracy ±(0.15+0.002t)
PT 1000 Class A Accuracy ±(0.15+0.002t)
NTC 10k B3950 Accuracy B:3989K±1%
NTC 10k B3435 Accuracy B:3435K±1%
NTC 1k Accuracy B:3500K±1%
NTC 2k Accuracy B:3977K±0.3%
Response Time <1min / < 30s, measuring the liquid in the pipeline
Element Connection 2-wire
Media Air or liquid
Operating Temperature -30...+ 70℃ (body) / -30...+ 200℃(probe)
Storage Temperature -30...+70°C
Measuring Range -40...+200°C
Housing Material PC & ABS, UL94-V0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5




Notes On Disposal

0.5m Probe Length Temperature Sensor For Air Condition 0

Product Certification

0.5m Probe Length Temperature Sensor For Air Condition 1


Additional Instructions



Temperature compensation

Probe length Cable resistance Temperature compensation
0.5m 0.086Ω 0.22℃
2m 0.344Ω 0.88℃
3m 0.516Ω 1.32℃

*When the temperature resistance of high resistance value (R>1000Ω), the temperature compensation can be ignored


Dimensions(mm)



0.5m Probe Length Temperature Sensor For Air Condition 2


Ordering Guide



KTS120- Element-Probe length



Model Element Probe length
KTS120 PT100 Class A (1) 0.5m (A)
PT1000 Class A (2) 2m (B)
NTC 10k B395 (3) 3m (C)
NTC 10k B3435 (4)
NTC 1k (5)
NTC 2k (6)



0.5m Probe Length Temperature Sensor For Air Condition 3

0.5m Probe Length Temperature Sensor For Air Condition 40.5m Probe Length Temperature Sensor For Air Condition 5



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
