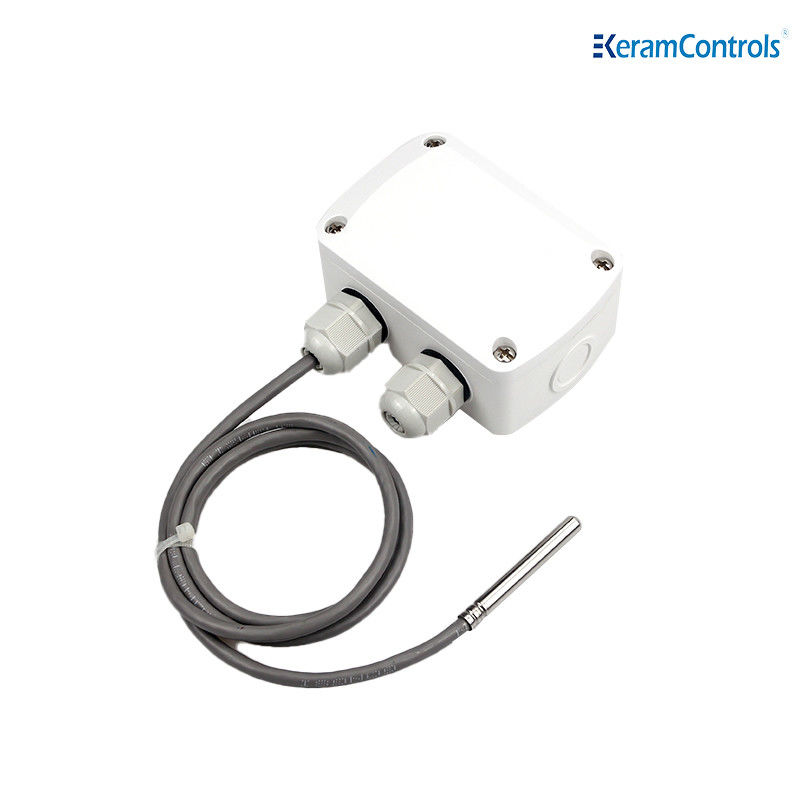

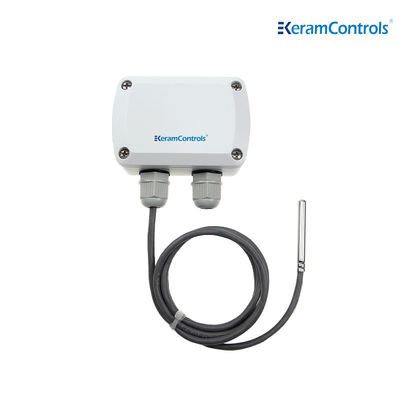

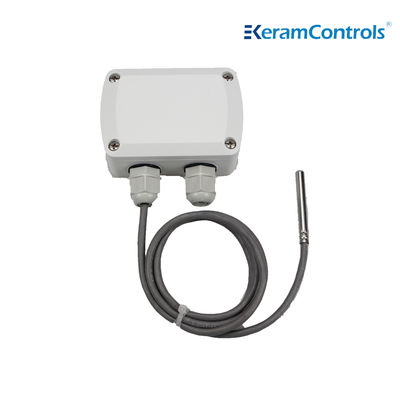

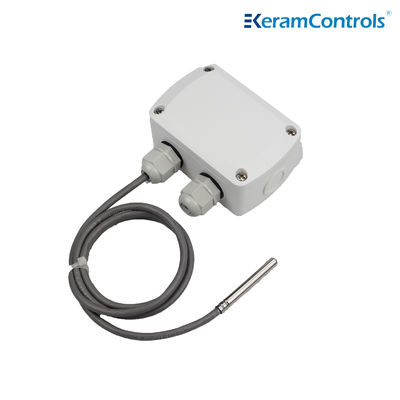

PT100 Class A Temperature Sensor For Ventilation

PT100 Class A Temperature Sensor For Ventilation
PT100 Class A Temperature Sensor For Ventilation
PT100 Class A Temperature Sensor For Ventilation PT100 Class A Temperature Sensor For Ventilation PT100 Class A Temperature Sensor For Ventilation PT100 Class A Temperature Sensor For Ventilation PT100 Class A Temperature Sensor For Ventilation

Large Image :  PT100 Class A Temperature Sensor For Ventilation

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTS120
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

PT100 Class A Temperature Sensor For Ventilation

Description
Temperature Sensitive Element: PT100 Class A Accuracy ±(0.15+0.002t) Protection Class: IP65/NEMA 4
Cable Gland: M16*1.5
High Light:

PT100 Class A Temperature Sensor

,

IP65 Ventilation Temperature Sensor

PT100 Class A temperature Sensor for ventilation



Description



KTS120 cable type temperature sensor can be used to measure liquid or gas, the measurement temperature range is -40~+200℃, excellent response speed, response time <1min/<30s, so that users can quickly get feedback information, thus more accurate control of medium temperature.


Feature



  • Range from -40 to +200°C
  • Resistance output
  • Standard accuracy, see table
  • Protection class: IP65 / NEMA 4

Application



KTS120 temperature transmitter used for temperature measurement in heating, ventilation and air conditioning systems enabling weather-dependent temperature regulation.


Technical Data



Model KTS120
Temperature Sensitive Element PT100 Class A Accuracy ±(0.15+0.002t)
PT 1000 Class A Accuracy ±(0.15+0.002t)
NTC 10k B3950 Accuracy B:3989K±1%
NTC 10k B3435 Accuracy B:3435K±1%
NTC 1k Accuracy B:3500K±1%
NTC 2k Accuracy B:3977K±0.3%
Response Time <1min / < 30s, measuring the liquid in the pipeline
Element Connection 2-wire
Media Air or liquid
Operating Temperature -30...+ 70℃ (body) / -30...+ 200℃(probe)
Storage Temperature -30...+70°C
Measuring Range -40...+200°C
Housing Material PC & ABS, UL94-V0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5




Notes On Disposal

PT100 Class A Temperature Sensor For Ventilation 0

Product Certification

PT100 Class A Temperature Sensor For Ventilation 1


Additional Instructions



Temperature compensation

Probe length Cable resistance Temperature compensation
0.5m 0.086Ω 0.22℃
2m 0.344Ω 0.88℃
3m 0.516Ω 1.32℃

*When the temperature resistance of high resistance value (R>1000Ω), the temperature compensation can be ignored


Dimensions(mm)



PT100 Class A Temperature Sensor For Ventilation 2


Ordering Guide



KTS120- Element-Probe length



Model Element Probe length
KTS120 PT100 Class A (1) 0.5m (A)
PT1000 Class A (2) 2m (B)
NTC 10k B395 (3) 3m (C)
NTC 10k B3435 (4)
NTC 1k (5)
NTC 2k (6)



PT100 Class A Temperature Sensor For Ventilation 3

PT100 Class A Temperature Sensor For Ventilation 4PT100 Class A Temperature Sensor For Ventilation 5



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
