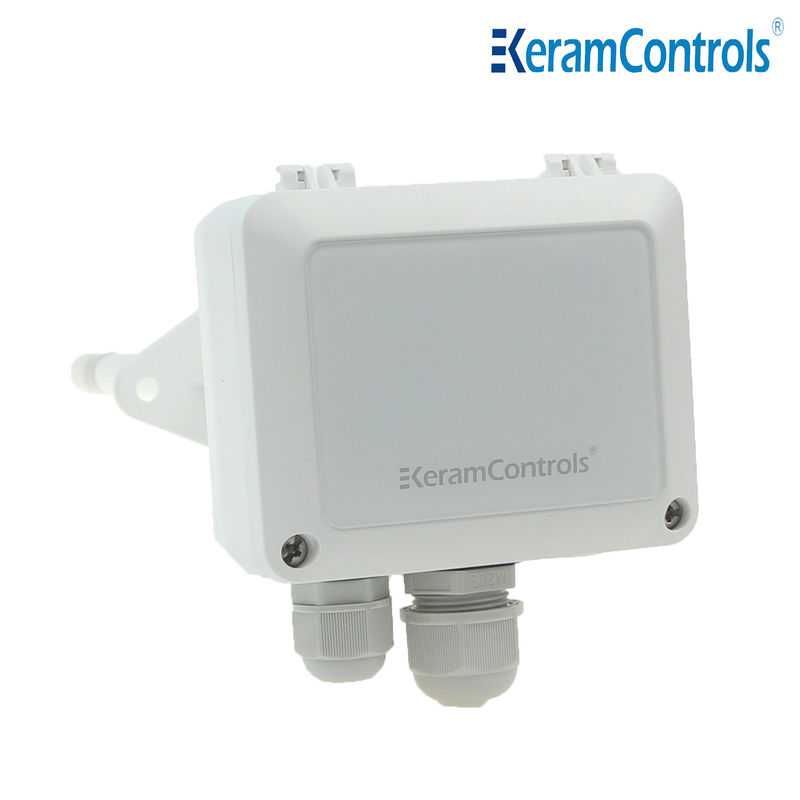

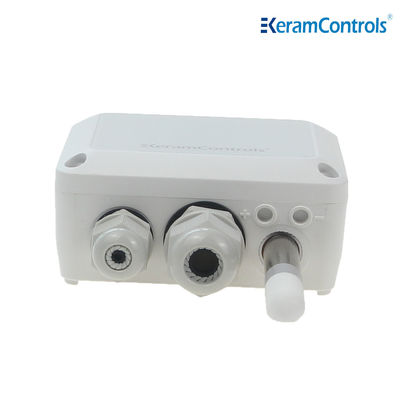

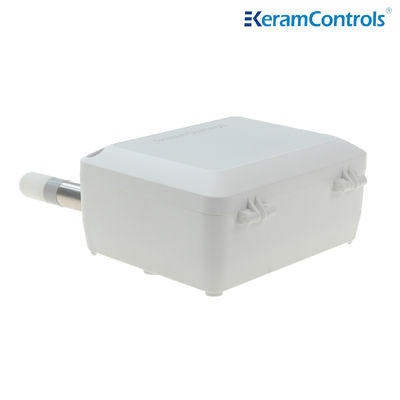

Wall Mounted Temperature And Humidity Transmitter For Clean Room
| Model: | KTH510 | Output: | 4-20mA/0-5V/0-10V/RS-485 |
|---|---|---|---|
| Storage Temperature: | -40…+60℃ | ||
| Highlight |
M16x1.5 Temperature And Humidity Transmitter,IP65 Wall Mounted Temperature Humidity Transmitter,CE Clean Room Humidity Transmitter |
||
Wall-mounted temperature and humidity transmitter for clean room
Description
KTH510 series is a temperature and humidity transmitter without display. It is similar to our KTH500. It is specially designed for customers who do not need display and with favorable price, and can also meet the different requirements of customers for output.
It is widely used in communication rooms, warehouse buildings and automatic control and other places that require temperature monitoring. Using standard industrial interface 4~20mA/0~10V/0~5V/RS-485 analog signal output, it can be connected to on-site digital display, PLC, inverter, industrial control host and other equipment, safe and reliable, and easy to install.
Feature
- Shell connected by hinge
More convenient wiring and setting
- M16 M20 double cable gland
Cable size φ5…12mm
- Smooth and flflat surface
Prevent the pollution of the shell surface in harsh environment
- IP65/NEMA4
Application
- HVAC system
- Greenhouse
- Food transportation
- Cold storage and refrigeration
- Clean room environment monitoring
Technical Data
| Model | KTH510 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
Dimension(mm)
Measuring range adjustment
Ordering guide
KTH510——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH510 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |

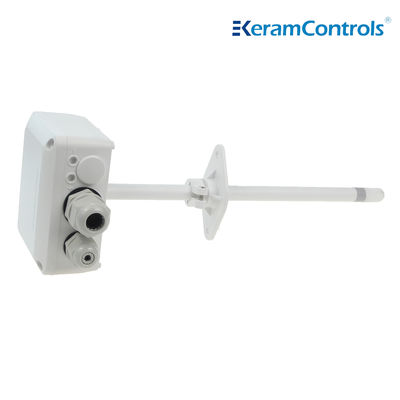

| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
