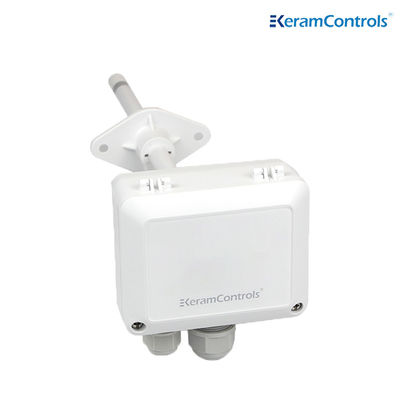

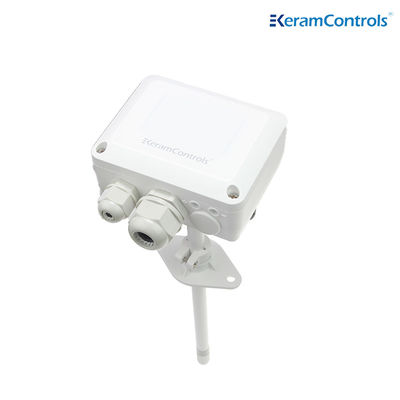

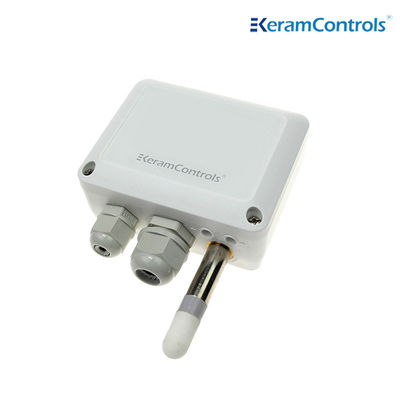

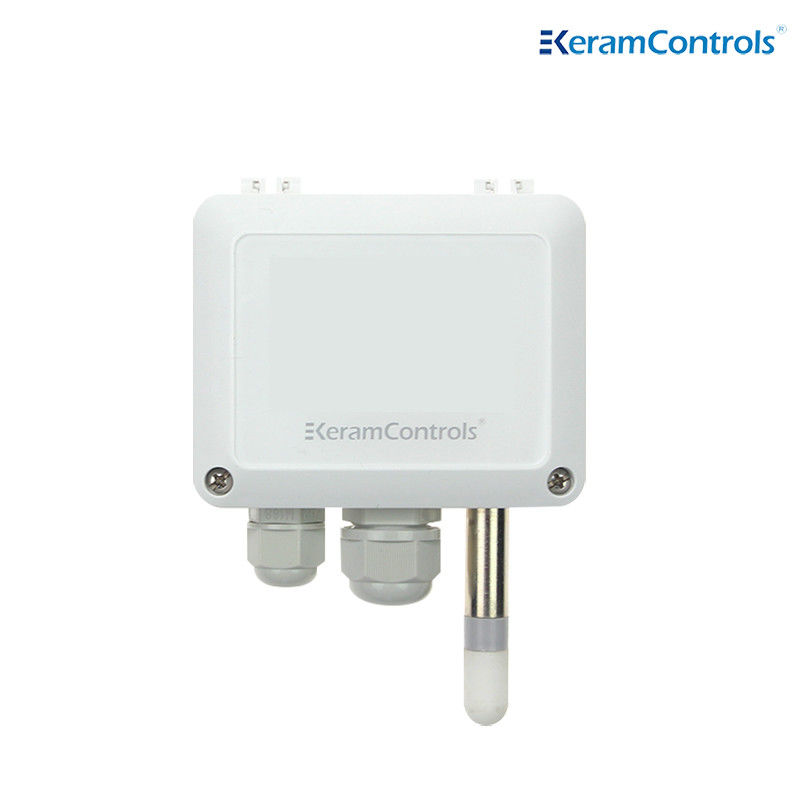

PC And ABS Temperature And Humidity Transmitter For HVAC System

PC And ABS Temperature And Humidity Transmitter For HVAC System
PC And ABS Temperature And Humidity Transmitter For HVAC System
PC And ABS Temperature And Humidity Transmitter For HVAC System PC And ABS Temperature And Humidity Transmitter For HVAC System PC And ABS Temperature And Humidity Transmitter For HVAC System PC And ABS Temperature And Humidity Transmitter For HVAC System PC And ABS Temperature And Humidity Transmitter For HVAC System

Large Image :  PC And ABS Temperature And Humidity Transmitter For HVAC System

Product Details:
Place of Origin: China
Brand Name: Keramcontrols
Certification: CE
Model Number: KTH510
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $51-$69/pic
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 1000pics/month

PC And ABS Temperature And Humidity Transmitter For HVAC System

Description
Operating Humidity: 0...100%RH Operating Temperature: -30…+70℃
Cable Gland: M16*1.5/M20*1.5
High Light:

ABS Temperature And Humidity Transmitter

,

PC Temperature And Humidity Transmitter

,

PC ABS Temperature Humidity Transmitter



PC and ABS temperature and humidity transmitter for HVAC system



Description



KTH510 series temperature and humidity transmitter can adjust the power supply mode and output mode according to customer needs, and has a DIP switch to adjust the temperature measurement range to meet different usage scenarios and requirements. During operation, if the ambient temperature is used And the humidity should reach -35~70℃ and 0-100%RH.


Feature



  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH510
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



PC And ABS Temperature And Humidity Transmitter For HVAC System 0PC And ABS Temperature And Humidity Transmitter For HVAC System 1


Measuring range adjustment



PC And ABS Temperature And Humidity Transmitter For HVAC System 2


Output setting(3 wire Model)



PC And ABS Temperature And Humidity Transmitter For HVAC System 3


Ordering guide



KTH510——Output——Installation——Filter



Model Output Installation Filter
KTH510 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



PC And ABS Temperature And Humidity Transmitter For HVAC System 4

PC And ABS Temperature And Humidity Transmitter For HVAC System 5

FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
