IP65 Temperature Transmitters Optional Head Mounted For HVAC
| Temperature Sensor: | Pt1000 R0：1000Ω | Operating Temperature: | -35 To +150°C |
|---|---|---|---|
| Storage Temperature: | -30 To +70°C | ||
| Highlight |
IP65 Temperature Transmitters,HVAC Digital Temperature Transmitters,IP65 HVAC Temperature Transmitters |
||

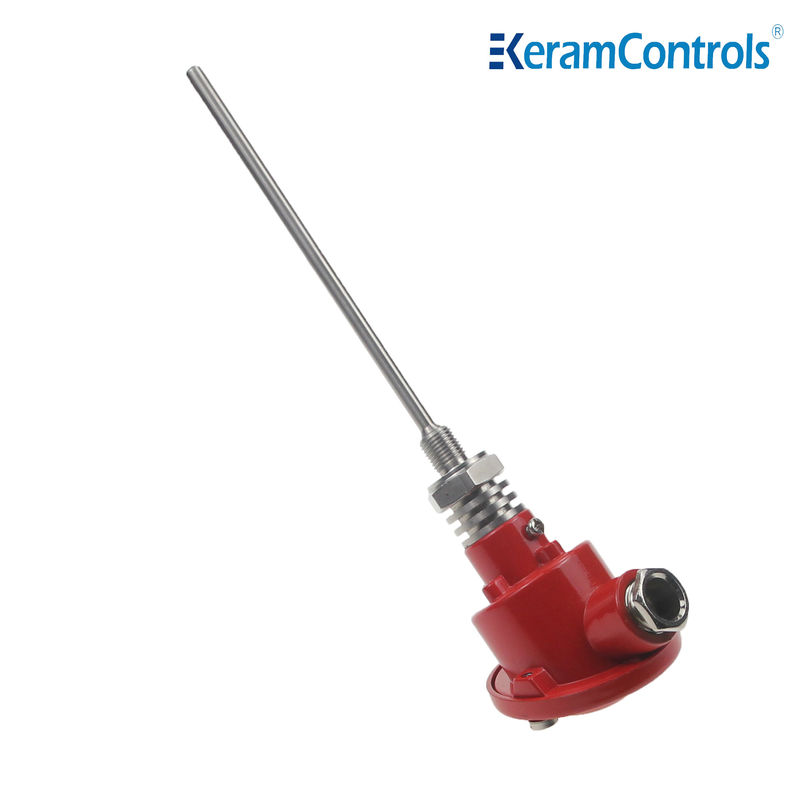

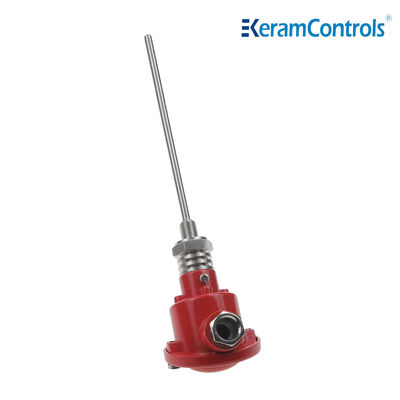

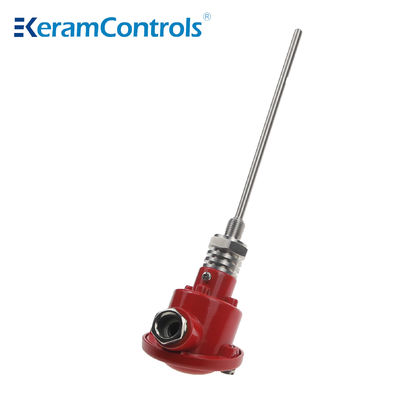

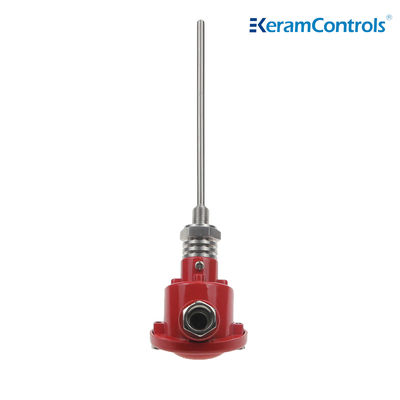

IP65 temperature transmitters for HVAC
Description
KTP110 series temperature sensors can be matched with different thermowells, which makes users more convenient and quicker. Different thermowells can be selected to suit different test environments and requirements.
Features
- Temperature range from -70...+500 °C
- Different heads available, up to IP65
- Optional head-mounted transmitter
- Inserts sheath material stainless steel
- Suitable for most common thermowells
Application
HVAC system
Green houses
Refrigeration system measuring
Indoor pools
Technical Data
| Model | KTP110 |
| Temperature sensor | Element Standard resistance |
| NTC10K B3435 R25:10KΩ±1% | |
| Pt100 R0:100Ω | |
| Pt1000 R0:1000Ω | |
| Element connection | 2-wire |
| 4-wire optional | |
| Dimensions | See dimensional drawing |
| Connection head | Aluminium |
| Ambient temperature -20 to +100°C | |
| Protective tube | SS316 |
| φ: 6mm | |
| Inserted length (EL) 50mm-400mm (see table) | |
| Protection class | IP65 |
| Operating temperature | -35 to +150°C |
| Storage temperature | -30 to +70°C |
| Humidity | <95% RH, non-precipitating air |
| F-06 | Mounting flange |
| Galvanized steel | |
| φ: 32mm | |
| Tmax: 700°C | |
| A-B/xx | Immersion sleeve, brass, nickel-plated |
| φ: 8mm | |
| Tmax: 150°C | |
| Pmax: 10 bar | |
| A-Sxx | Immersion sleeve, stainless steel |
| φ: 8mm | |
| Tmax: 600°C | |
| Pmax: 40 bar |
Dimensions(mm)
Ordering Guide
KTP110-E-I
| Model | Element | Inserted length(EL) | ||
| KTP110 | NTC10K | (E) | 50mm | (I) |
| Pt100 | (F) | 100mm | (K) | |
| Pt1000 | (G) | 150mm | (L) | |
| 200mm | (M) | |||
| 250mm | (N) | |||
| 300mm | (O) | |||
| 400mm | (P) | |||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
