Product Details:
|
| Mounting Position: | Diaphragm In Any Vertical Plane | Degree Of Protection: | IP54(with Cover) |
|---|---|---|---|
| Operating Temperature: | -40℃to 85℃ | ||
| Highlight: | 250V Air Conditioner Differential Pressure Switch,IP54 Differential Pressure Switch |
||

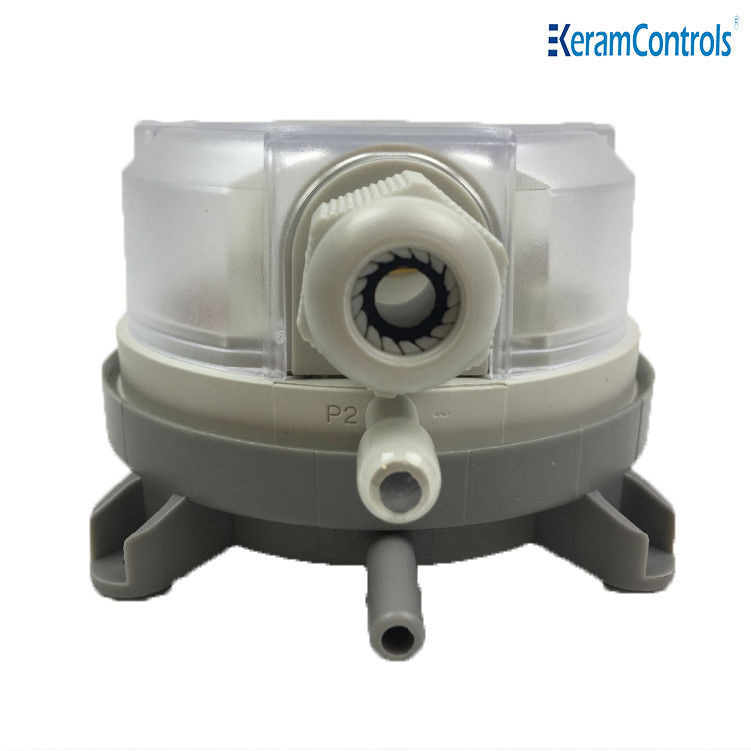

QAD series air differential pressure switch is widely used for monitoring gas, non-corrosive medium, measuring absolute pressure, gauge pressure and absolute pressure. The medium and ambient temperature is from -20~85°C, and the storage temperature is -40~85°C. The switch pressure should be specified for vertical installation. We recommend using the pipe connection facing down. If the switch is installed horizontally with an AMP connector, the switch value may be 20Pa higher than the actual value.
| Model | QAD |
| Media | Air,non-combustible and non-aggressive gasses |
| Max Operating Pressure | 10kPa |
| Mounting Position | Diaphragm in any vertical plane |
| Degree of protection | IP54(with cover) |
| Operating Temperature | -40℃to 85℃ |
| Contact Arrangement | SPDT |
| Electrical Rating | Resistance: Initial: < 50 milliohms; |
| Current1.5A resistive(0.4A inductive) 250V | |
| Electric Connection | 6.3x0.8 blade 46244 or screw terminals |
| Material | Housing:ABS |
| Duct connectors: ABS | |
| Membrane: Silicone | |
| Cable sleeve:PVC | |
| Weight | 0.15kg(0.35kg with flexible pipe) |
| Connection | φ6.0mm for tube connection |
| Approval | UL,CE,RoHS |
QAD series air pressure controls is factory-calibrated for vertical position. If installed horizontally, this will affect the switching point as following:
• with cover facing upwards, switching point is 15Pa higher than scale;
• with cover facing downwards, switching point is 15Pa lower than scale.
Note: Do not install upside down with trip pressures of less than 50pa!
| Model | Pressure Range | Differential | Tolerance |
| QAD-1 | 20~200Pa | 10Pa | ±15% |
| QAD-2 | 30~300Pa | 10Pa | ±15% |
| QAD-3 | 40~400Pa | 20Pa | ±15% |
| QAD-4 | 50~500Pa | 20Pa | ±15% |
| QAD-5 | 200~1000Pa | 100Pa | ±15% |
| QAD-6 | 500~2500Pa | 150Pa | ±15% |
| QAD-7 | 1000~5000Pa | 250Pa | ±15% |
