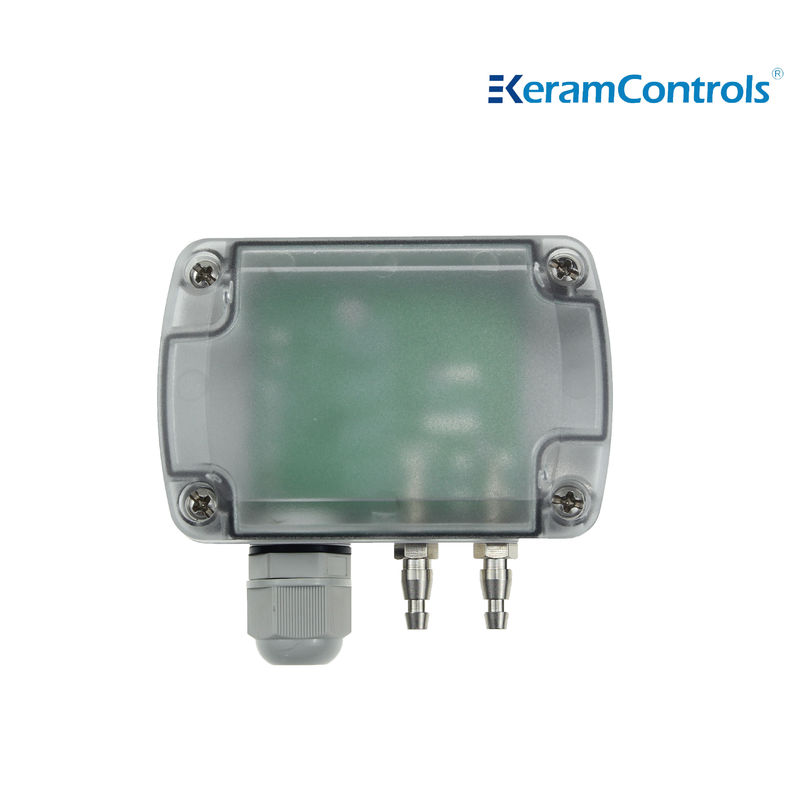

0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts

0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts
0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts
0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts 0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts 0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts 0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts 0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts

Large Image :  0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts

Description
Response Time: 0.5s Output Signal: 4-20mA(2wire)
Protection Class: IP65/NEMA 4
High Light:

20mA Differential Pressure Sensor

,

5000pa Differential Pressure Sensor

,

Air Conditioning Ducts Differential Pressure Transmitter

0-±5000pa and 4-20mA differential pressure sensor for air Conditioning Ducts



Description

The KDP110 differential pressure transmitter series is a simple transmitter. Its unit is factory set and cannot be adjusted, but the range is adjustable, which can meet the different requirements of customers. It is more solid and can avoid slipping due to shaking.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection
  • When ≤100Pa,accuracy<±3%FS±2Pa

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP110
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Cable Gland M16*1.5

Dimension



0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts 00-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts 1


Measuring range adjustment



0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts 2


Output setting(3 wire Model)



0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts 3

0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts 4


Manual Zero-point correction



0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts 5


Ordering guide



KDP110-Range-Output



Model Range Output
KDP110 -100~+100Pa (1) 4-20mA(2 wire) (E)
-1000~+1000Pa (2) 4-20mA(3 wire) (F)
-2000~+2000Pa (3) 0-5/0-10V(3 wire) (G)
-10000~+10000Pa (4) RS-485 (H)
    Customized



0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts 6

0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts 7

0-±5000pa 4-20mA Differential Pressure Sensor For Air Conditioning Ducts 8



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
