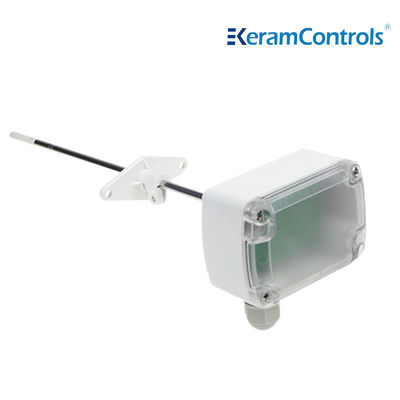

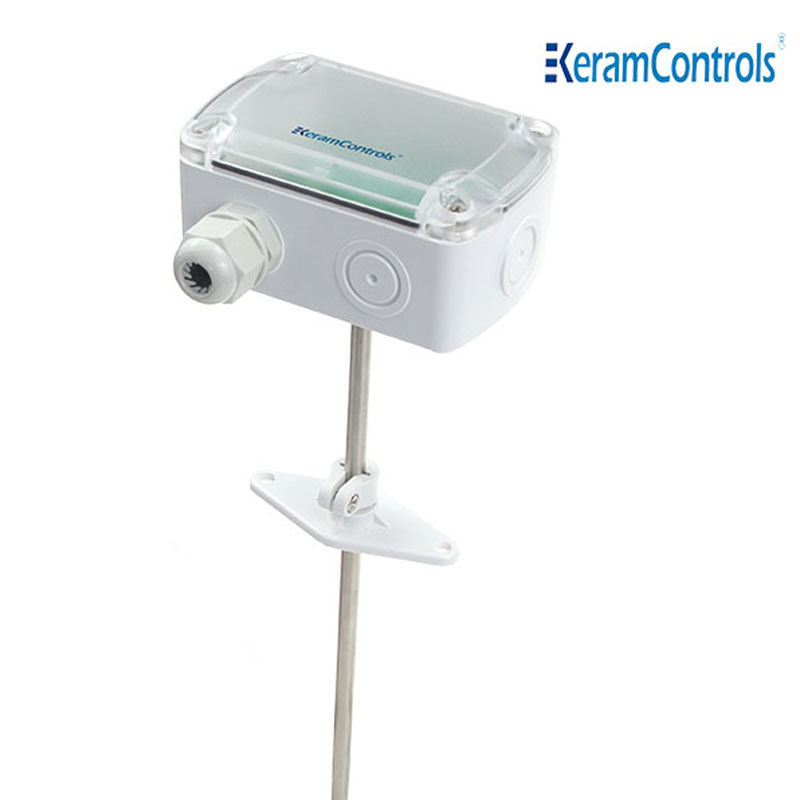

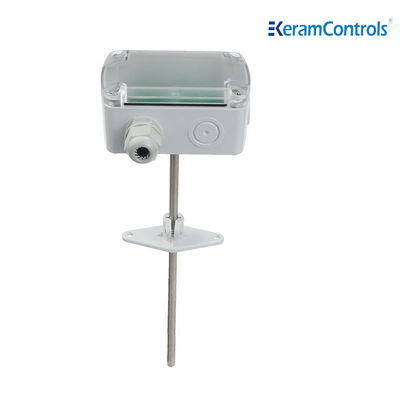

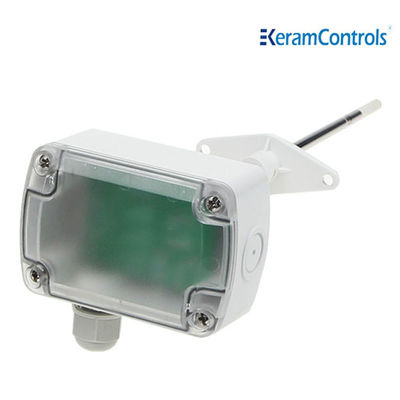

Building Automation Temperature Sensor NTC For Temperature Measurement

Building Automation Temperature Sensor NTC For Temperature Measurement
Building Automation Temperature Sensor NTC For Temperature Measurement
Building Automation Temperature Sensor NTC For Temperature Measurement Building Automation Temperature Sensor NTC For Temperature Measurement Building Automation Temperature Sensor NTC For Temperature Measurement Building Automation Temperature Sensor NTC For Temperature Measurement Building Automation Temperature Sensor NTC For Temperature Measurement

Large Image :  Building Automation Temperature Sensor NTC For Temperature Measurement

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTS110
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

Building Automation Temperature Sensor NTC For Temperature Measurement

Description
Temperature Sensitive Element: NTC 2k Accuracy B:3977K±0.3% Storage Temperature: -30...+70°C
Housing Material: PC&ABS,UL94V-0
High Light:

NTC 2k Accuracy Temperature Sensor NTC

,

UL94V-0 Building Automation Temperature Sensor NTC

,

NEMA4 Temperature Sensor Transmitters

Chinese manufacturer temperature sensor NTC for temperature measurement in building automation



Description

KTS110 temperature sensor is a sensor with exquisite design and convenient installation, which can save customers' time and cost, and can accurately measure the temperature change in the building, which can effectively make the central air conditioner work normally.


Features



  • Range from -40 to +200°C
  • Resistance output
  • Standard accuracy, see table
  • Protection class: IP65 / NEMA 4

Application



KTS110 temperature transmitter used for temperature measurement in heating,ventilation and air conditioning systems enabling weather-dependenttemperature regulation.


Technical Data



Model KTS110
Temperature Sensitive Element PT100 Class A Accuracy ±(0.15+0.002t)
PT 1000 Class A Accuracy ±(0.15+0.002t)
NTC 10k B3950 Accuracy B:3989K±1%
NTC 10k B3435 Accuracy B:3435K±1%
NTC 1k Accuracy B:3500K±1%
NTC 2k Accuracy B:3977K±0.3%
Response Time <1min, In 3m/s (590ft/min) air duct / < 30s, measuring the liquid in the pipeline
Element Connection 2-wire
Media Air or liquid
Operating Temperature -40...+110°C (Air duct) / -40...+200°C (Liquid pipeline)
Storage Temperature -30...+70°C
Measuring Range -40...+200°C
Housing Material PC & ABS, UL94-V0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5



Notes On Disposal



Building Automation Temperature Sensor NTC For Temperature Measurement 0

Product Certification



Building Automation Temperature Sensor NTC For Temperature Measurement 1


Dimensions(mm)



Building Automation Temperature Sensor NTC For Temperature Measurement 2


Ordering Guide



KTS110-Element-Probe length



Model Element Probe Length
KTS110 PT100 Class A (1) 65mm (A)
PT1000 Class A (2) 120mm (B)
NTC 10k B395 (3) 150mm (C)
NTC 10k B3435 (4) 300mm (D)
NTC 1k (5)
NTC 2k (6)



Building Automation Temperature Sensor NTC For Temperature Measurement 3

Building Automation Temperature Sensor NTC For Temperature Measurement 4Building Automation Temperature Sensor NTC For Temperature Measurement 5



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
