UL94V-0 Housing Temp Sensor Transmitters Temperature Sensor IP65

UL94V-0 Housing Temp Sensor Transmitters Temperature Sensor IP65
UL94V-0 Housing Temp Sensor Transmitters Temperature Sensor IP65
UL94V-0 Housing Temp Sensor Transmitters Temperature Sensor IP65 UL94V-0 Housing Temp Sensor Transmitters Temperature Sensor IP65 UL94V-0 Housing Temp Sensor Transmitters Temperature Sensor IP65

Large Image :  UL94V-0 Housing Temp Sensor Transmitters Temperature Sensor IP65

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KTS130
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 2000pics/month

UL94V-0 Housing Temp Sensor Transmitters Temperature Sensor IP65

Description
Temperature Sensitive Element: NTC 1k Accuracy B:3500K±1% Measuring Range: -40...+200°C
Operating Temperature: -30...+ 70℃ (body) / -30...+ 200℃(probe) Housing Material: PC&ABS,UL94V-0
Media: Air Or Liquid
High Light:

UL94V-0 Temp Sensor Transmitters

,

IP65 Temp Sensor Transmitters

,

CE PT100 Temperature Sensor

Temp sensor temperature sensor



Description

A temperature sensor is an electronic device that measures the temperature of its environment and converts the input data into electronic data to record, monitor, or signal temperature changes. There are many different types of temperature sensors. Some temperature sensors require direct contact with the physical object that is being monitored (contact temperature sensors), while others indirectly measure the temperature of an object (non-contact temperature sensors).

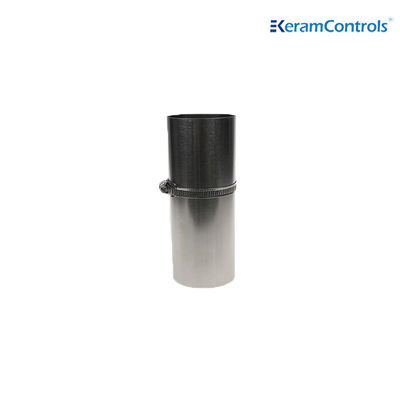

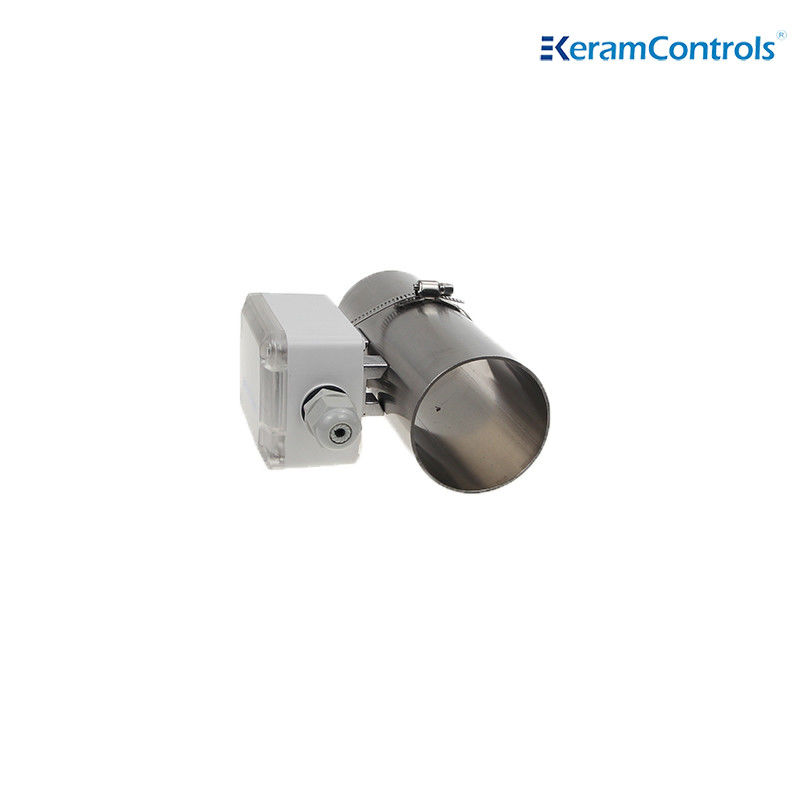

KTS130 series bundled sensor is a low-cost temperature sensor specially designed for pipeline surface temperature measurement. It is suitable for temperature measurement in various applications.


Feature



  • Range from -40 to +200°C
  • Resistance output
  • Standard accuracy, see table
  • Protection class: IP65 / NEMA 4

Application



KTS120 temperature transmitter used for temperature measurement in heating, ventilation and air conditioning systems enabling weather-dependent temperature regulation.


Technical Data



Model KTS130
Temperature Sensitive Element PT100 Class A Accuracy ±(0.15+0.002t)
PT 1000 Class A Accuracy ±(0.15+0.002t)
NTC 10k B3950 Accuracy B:3989K±1%
NTC 10k B3435 Accuracy B:3435K±1%
NTC 1k Accuracy B:3500K±1%
NTC 2k Accuracy B:3977K±0.3%
Response Time <1min / < 30s, measuring the liquid in the pipeline
Element Connection 2-wire
Media Air or liquid
Operating Temperature -30...+ 70℃ (body) / -30...+ 200℃(probe)
Storage Temperature -30...+70°C
Measuring Range -40...+200°C
Housing Material PC & ABS, UL94-V0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5




Notes On Disposal

UL94V-0 Housing Temp Sensor Transmitters Temperature Sensor IP65 0

Product Certification

UL94V-0 Housing Temp Sensor Transmitters Temperature Sensor IP65 1


Dimensions(mm)



UL94V-0 Housing Temp Sensor Transmitters Temperature Sensor IP65 2


Ordering Guide



KTS130- Element-Hous Clamp



Model Element House Clamp
KTS130 PT100 Class A (1) S-250MM (V)
PT1000 Class A (2) S-400MM (W)
NTC 10k B395 (3) S-600MM (X)
NTC 10k B3435 (4) S-800MM (Y)
NTC 1k (5) S-10000MM (Z)
NTC 2k (6)





UL94V-0 Housing Temp Sensor Transmitters Temperature Sensor IP65 3



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
