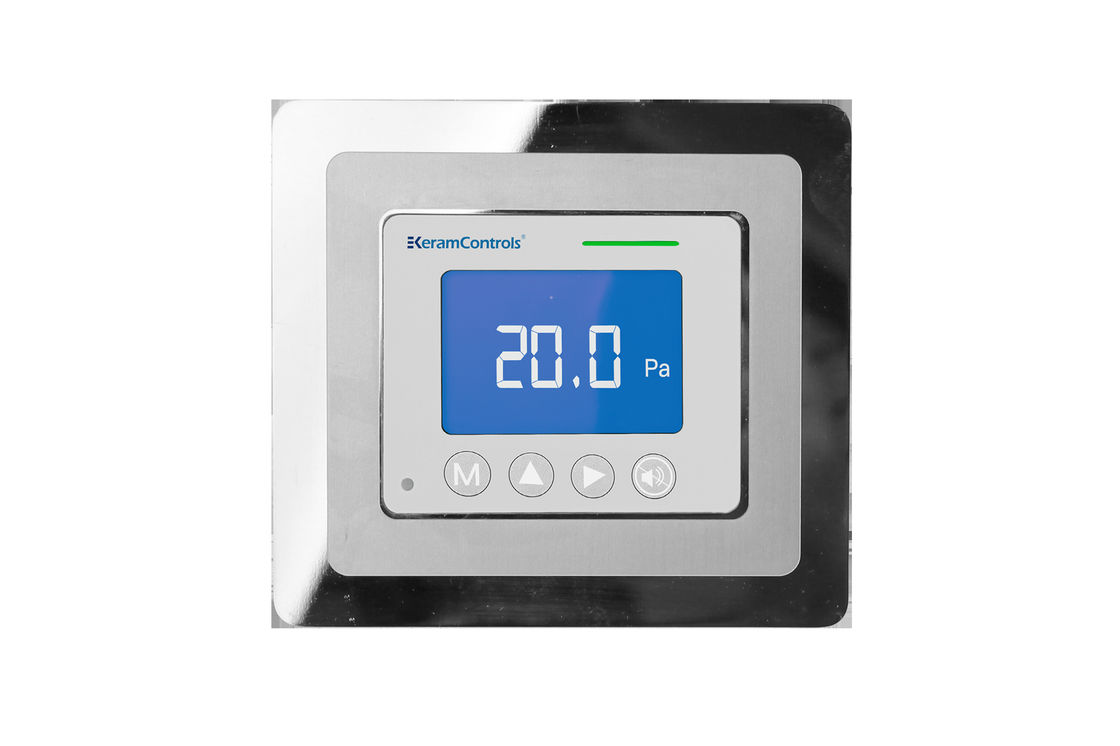

KDPM100 Differential Pressure Monitor 4-20mA (2 wire) for Protective Ward

KDPM100 Differential Pressure Monitor 4-20mA (2 wire) for Protective Ward
KDPM100 Differential Pressure Monitor 4-20mA (2 wire) for Protective Ward

Large Image :  KDPM100 Differential Pressure Monitor 4-20mA (2 wire) for Protective Ward

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDPM100
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Price: $120-$210
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T

KDPM100 Differential Pressure Monitor 4-20mA (2 wire) for Protective Ward

Description
Repeat Stability: ±0.01 % At FS /Year Storage Temperature: -40…+60℃
Auto Zero: Manual Calibration
Highlight:

Protective Ward Differential Pressure Monitor

,

2 wire Differential Pressure Monitor

,

4-20mA Differential Pressure Monitor

KDPM100 Differential Pressure Monitor 4-20mA(2 wire) for Disinfection Room



Description



KDPM100 provide a simple, accurate and economical method to measure and display the room pressure difference in real time.The pressure status in the room can clearly indicated through the device’s green or red indicator lights and an optional audible alarm. Thanks to continuous monitoring and real-time reporting status, choosing KDPM100 can reduce the frequency of preventive maintenance inspections.

Feature



  • Quick and easy installation
  • Single zone pressure status for all positive or negative pressure zones
  • Visual alarm via red/green indicator light
  • Optional audible alarm function.



Application



  • Disinfection room
  • Isolation ward
  • Sterile storage room
  • Protective ward
  • Endoscopy room
  • Observing room






Technical data



Model KDPM100
Measurement Units Pa
Accuracy <±1% Pa@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0,Stainless steel panel
Protection Class IP30
Display Backlight LCD display(4-20mA 2 wire without backlight)




Dimension(mm)



KDPM100 Differential Pressure Monitor 4-20mA (2 wire) for Protective Ward 0

Manual Zero-point correction



KDPM100 Differential Pressure Monitor 4-20mA (2 wire) for Protective Ward 1





Ordering guide



KDPM100-Range-display-output



KDPM100 Differential Pressure Monitor 4-20mA (2 wire) for Protective Ward 2









KDPM100 Differential Pressure Monitor 4-20mA (2 wire) for Protective Ward 3

KDPM100 Differential Pressure Monitor 4-20mA (2 wire) for Protective Ward 4

KDPM100 Differential Pressure Monitor 4-20mA (2 wire) for Protective Ward 5

FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
