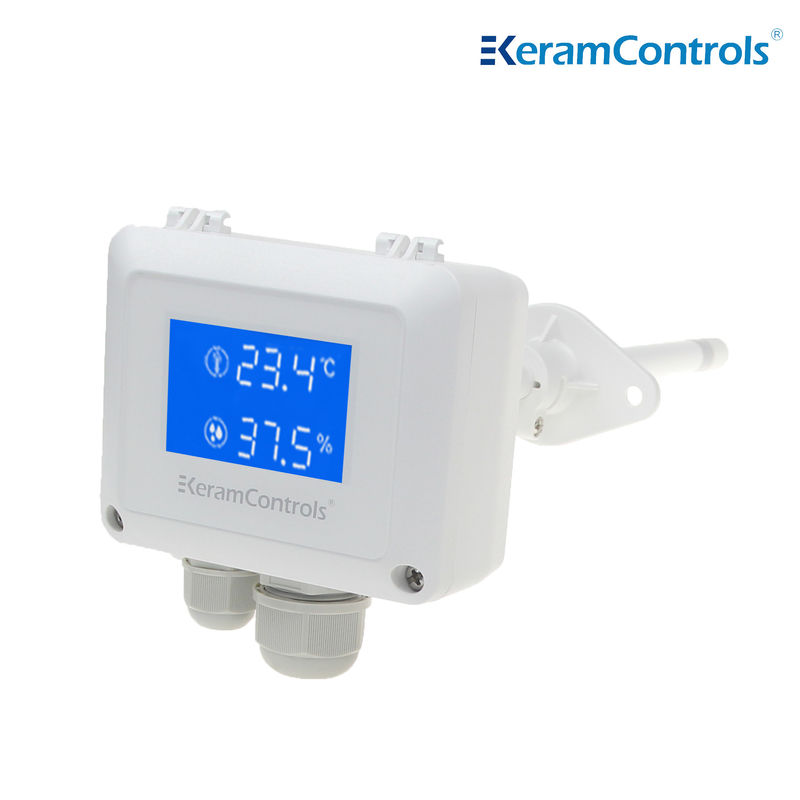

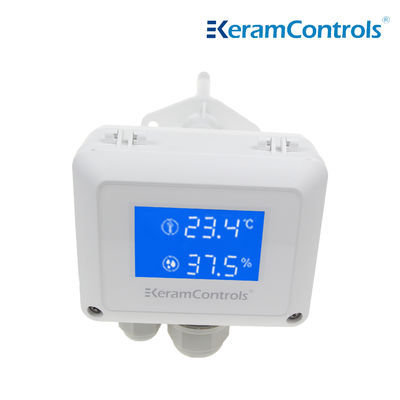

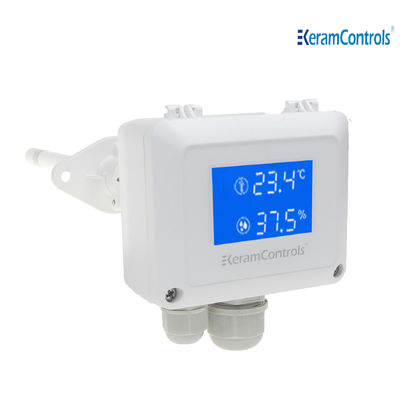

16V To 30V Temperature Humidity Transmitter RS485

16V To 30V Temperature Humidity Transmitter RS485
16V To 30V Temperature Humidity Transmitter RS485
16V To 30V Temperature Humidity Transmitter RS485 16V To 30V Temperature Humidity Transmitter RS485 16V To 30V Temperature Humidity Transmitter RS485 16V To 30V Temperature Humidity Transmitter RS485

Large Image :  16V To 30V Temperature Humidity Transmitter RS485

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KTH500
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs per month

16V To 30V Temperature Humidity Transmitter RS485

Description
Name: Temperature Humidity Transmitter Protection: IP65
Customized: OEM Certification: CE
Accuracy (Humidity): 2.0% (0-90% @ 25℃) Accuracy (Temperature): 0.1 ℃ @ 20~60℃
Operation Termperature: -35~+80℃ Power Supply: 16-30Vac/dc
Output: 4-20mA 0-10V 0-5V RS485
High Light:

30V Temperature Humidity Transmitter

,

16V Temperature Humidity Transmitter

,

RS485 humidity pressure and temperature

16V To 30V Temperature Humidity Transmitter RS485



Description



KTH500 Humidity and temperature Transmitter

Temperature Humidity Transmitter LED Display Air Duct Mounted 4-20 mA Output IP65



KTH500 temperature and humidity transmitters can be used to measure relative humidity and temperature in various HVAC applications, as well as monitor building energy management systems. This series of products includes duct-mounted transmitters,IP65 protection wall-mounted transmitter.

KTH500 has a screwless lid and an easily adjustable mounting flange that make the installation of the device easy.


Feature



  • LCD display

Large size backlight display

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH500
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Display Backlight LCD
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



16V To 30V Temperature Humidity Transmitter RS485 016V To 30V Temperature Humidity Transmitter RS485 1


Measuring range adjustment



16V To 30V Temperature Humidity Transmitter RS485 2


Output setting(3 wire Model)



16V To 30V Temperature Humidity Transmitter RS485 3


Ordering guide



KTH500——Output——Installation——Filter



Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



16V To 30V Temperature Humidity Transmitter RS485 4

16V To 30V Temperature Humidity Transmitter RS485 5



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
