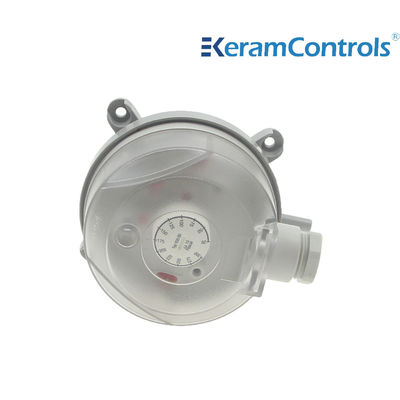

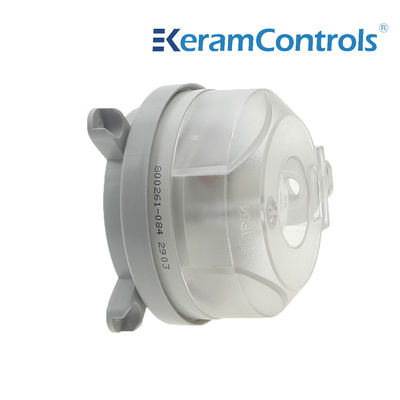

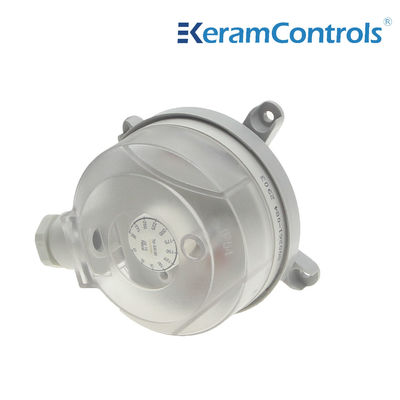

Differential pressure sensor for air flow

Differential pressure sensor for air flow
Differential pressure sensor for air flow
Differential pressure sensor for air flow Differential pressure sensor for air flow Differential pressure sensor for air flow Differential pressure sensor for air flow Differential pressure sensor for air flow

Large Image :  Differential pressure sensor for air flow

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: QAD
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: USD3-10/piece EXW factory
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs per month

Differential pressure sensor for air flow

Description
Media: Air,non-combustible And Non-aggressive Gasses Max Operating Pressure: 10kPa
Warranty: 1 Year Mounting Position: Diaphragm In Any Vertical Plane
Operating Temperature: -40℃to 85℃ Contact Arrangement: SPDT
High Light:

0.35 Mpa 24V Liquid Flow Sensors

,

0.35 Mpa 5v Liquid Flow Sensors

,

0.35 Mpa micro flow meter liquid

Differential pressure sensor for air flow



Description





QAD series gas flow switch, is a protection class up to IP54 switch, can effectively control gas flow, suitable for aerators, air conditioning and fans in the field.


Technical Specifications



Model QAD
Media Air,non-combustible and non-aggressive gasses
Max Operating Pressure 10kPa
Mounting Position Diaphragm in any vertical plane
Degree of protection IP54(with cover)
Operating Temperature -40℃to 85℃
Contact Arrangement SPDT
Electrical Rating Resistance: Initial: < 50 milliohms;
Current1.5A resistive(0.4A inductive) 250V
Electric Connection 6.3x0.8 blade 46244 or screw terminals
Material Housing:ABS
Duct connectors: ABS
Membrane: Silicone
Cable sleeve:PVC
Weight 0.15kg(0.35kg with flexible pipe)
Connection φ6.0mm for tube connection
Approval UL,CE,RoHS

Dimensions(mm)



Differential pressure sensor for air flow 0


Installation Connections



QAD series air pressure controls is factory-calibrated for vertical position. If installed horizontally, this will affect the switching point as following:

• with cover facing upwards, switching point is 15Pa higher than scale;

• with cover facing downwards, switching point is 15Pa lower than scale.



Note: Do not install upside down with trip pressures of less than 50pa!


Electric Wiring


Differential pressure sensor for air flow 1

Product Range



Model Pressure Range Differential Tolerance
QAD-1 20~200Pa 10Pa ±15%
QAD-2 30~300Pa 10Pa ±15%
QAD-3 40~400Pa 20Pa ±15%
QAD-4 50~500Pa 20Pa ±15%
QAD-5 200~1000Pa 100Pa ±15%
QAD-6 500~2500Pa 150Pa ±15%
QAD-7 1000~5000Pa 250Pa ±15%
  • The performances stated in this sheet can be modified without any prior notice due to design improvements

Differential pressure sensor for air flow 2



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
