OEM Temperature Humidity Transmitter 4-20mA IP65
| Name: | Temperature Humidity Transmitter | Customized: | OEM |
|---|---|---|---|
| Power Supply: | 16-30Vac/dc | Certification: | CE |
| Accuracy (Humidity): | 2.5% （0-90% @ 25℃） | Accuracy (Temperature): | 0.2 ℃ @ 20~60℃ |
| Operation Termperature: | -35~+70℃ | Output: | 0-10V 0-5V |
| Protection: | IP65 | ||
| Highlight |
OEM Temperature Humidity Transmitter,20mA Temperature Humidity Transmitter,IP65 humidity temperature |
||
OEM Temperature Humidity Transmitter 4-20mA IP65
Description

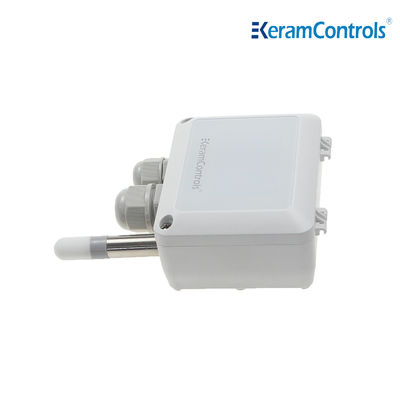

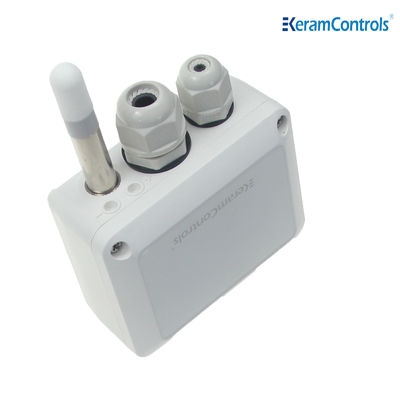

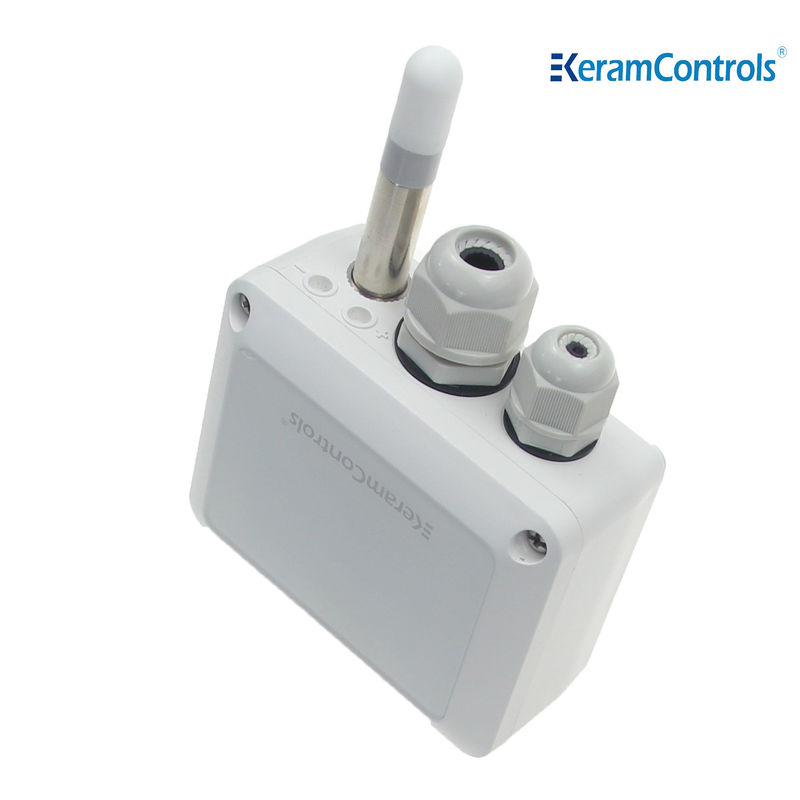

KTH510 Humidity and temperature Transmitter
OEM Air Duct Mounted Temperature Humidity Transmitter 4-20mA Output IP65
KTH510 is a relative humidity transmitter with temperature output installed in air ventilation duct. Illuminated display ensures easy readability also from a distance.
KTH510 has a screwless lid and an easily adjustable mounting flange that make the installation of the device easy.
Feature
- Shell connected by hinge
More convenient wiring and setting
- M16 M20 double cable gland
Cable size φ5…12mm
- Smooth and flat surface
Prevent the pollution of the shell surface in harsh environment
- IP65/NEMA4
Application
- HVAC system
- Greenhouse
- Food transportation
- Cold storage and refrigeration
- Clean room environment monitoring
Technical Data
| Model | KTH510 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
Dimension(mm)
Measuring range adjustment
Output setting(3 wire Model)
Ordering guide
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
