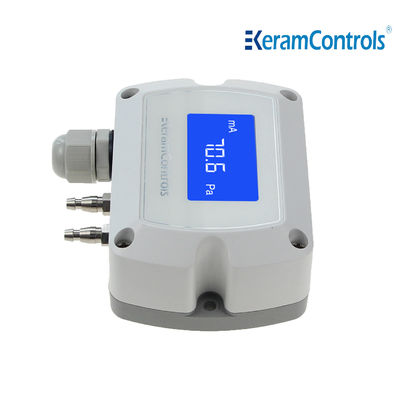

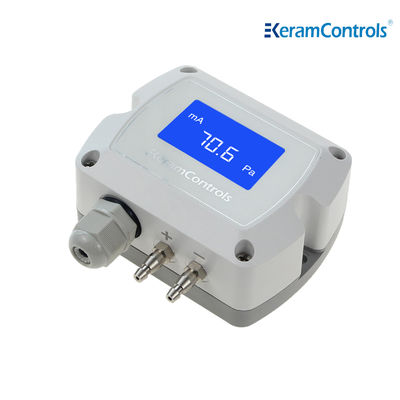

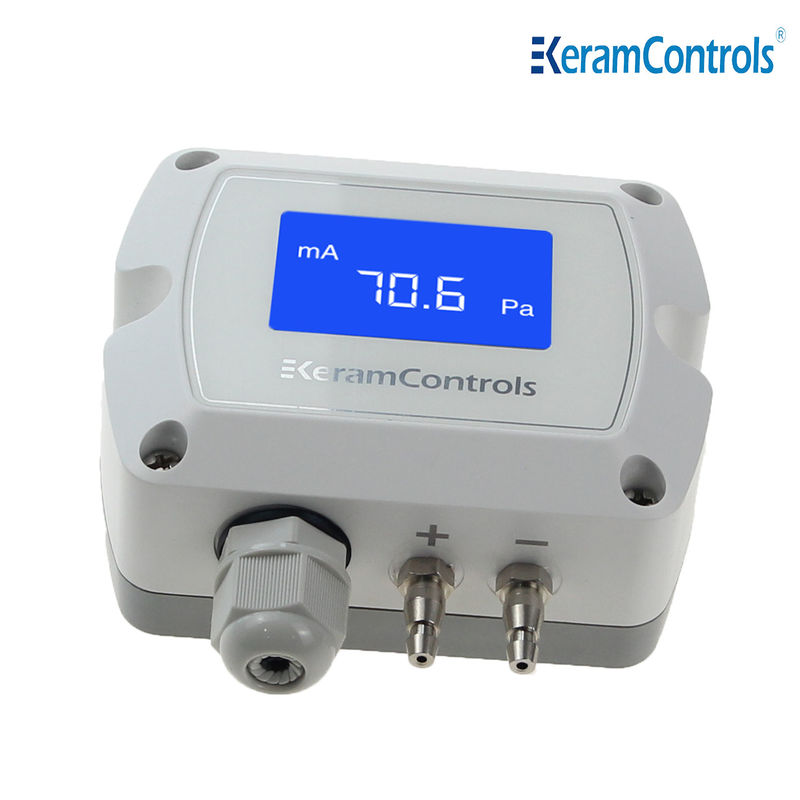

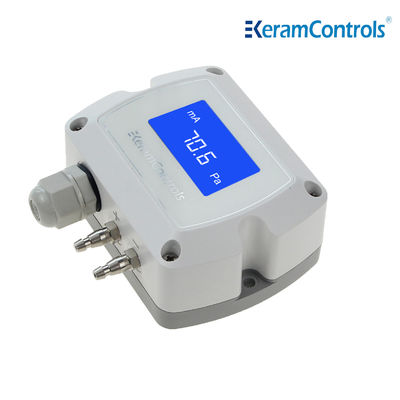

250Pa DPT Differential Pressure Transmitter 3 Wires IP65

250Pa DPT Differential Pressure Transmitter 3 Wires IP65
250Pa DPT Differential Pressure Transmitter 3 Wires IP65
250Pa DPT Differential Pressure Transmitter 3 Wires IP65 250Pa DPT Differential Pressure Transmitter 3 Wires IP65 250Pa DPT Differential Pressure Transmitter 3 Wires IP65 250Pa DPT Differential Pressure Transmitter 3 Wires IP65 250Pa DPT Differential Pressure Transmitter 3 Wires IP65

Large Image :  250Pa DPT Differential Pressure Transmitter 3 Wires IP65

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD55-70/piece EXW factory
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs per month

250Pa DPT Differential Pressure Transmitter 3 Wires IP65

Description
Name: Air Differential Pressure Transmitter Customized Support: OEM
Certification: CE Warranty: 1 Year
Accuracy: 1.0% FS Pressure Range: 0~100...1,000Pa...10,000Pa
Power Supply: 16-30Vac/dc Output Signal: 4-20mA, 0-10V, 0-5V, RS485
Operation Temperature: -20~+80℃ Meida: Air And Neutral Gases
Material: ABC+PC Protection: IP65
High Light:

250Pa DPT Differential Pressure Transmitter

,

3 Wires DPT Differential Pressure Transmitter

,

IP65 differential pressure sensor hvac

250Pa DPT Differential Pressure Transmitter 3 Wires IP65



Description



KDP210 Series Differential pressure transmitter

DPT Differential Pressure Transmitter LED Display RS485 Output IP65



The KDP210 differential pressure transmitter is a high accuracy differential pressure transmitter designed for cleanrooms and other demanding applications.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display
Cable Gland M16*1.5

Dimension(mm)



250Pa DPT Differential Pressure Transmitter 3 Wires IP65 0

250Pa DPT Differential Pressure Transmitter 3 Wires IP65 1


Measuring range adjustment



250Pa DPT Differential Pressure Transmitter 3 Wires IP65 2


Output setting(3 wire Model)



250Pa DPT Differential Pressure Transmitter 3 Wires IP65 3

250Pa DPT Differential Pressure Transmitter 3 Wires IP65 4


Manual Zero-point correction



250Pa DPT Differential Pressure Transmitter 3 Wires IP65 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



250Pa DPT Differential Pressure Transmitter 3 Wires IP65 6



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
