Product Details:
|
Name: | Air Differential Pressure Transmitter | Customized Support: | OEM |
---|---|---|---|
Certification: | CE | Warranty: | 1 Year |
Accuracy: | 1.0% FS | Pressure Range: | Customized |
Power Supply: | 16-30Vac/dc | Output Signal: | 4-20mA, 0-10V, 0-5V |
Operation Temperature: | -20~+80℃ | Meida: | Air And Neutral Gases |
Material: | ABC+PC | Protection: | IP65 |
Highlight: | IP65 Differential Level Transmitter,20mA Differential Level Transmitter,4mA differential pressure transducer |

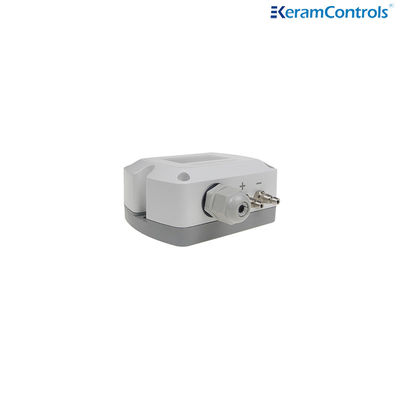

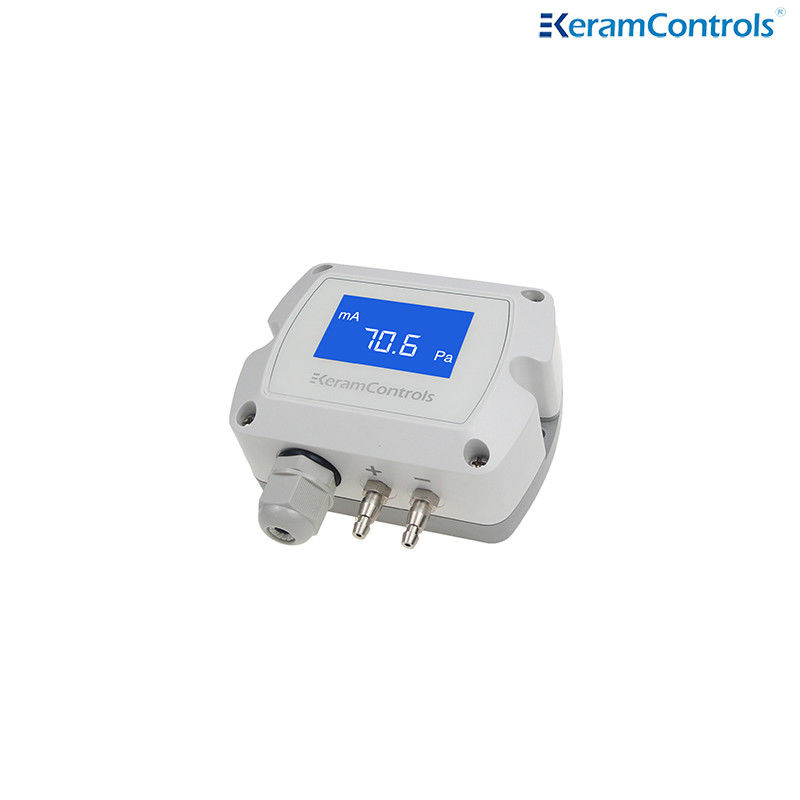

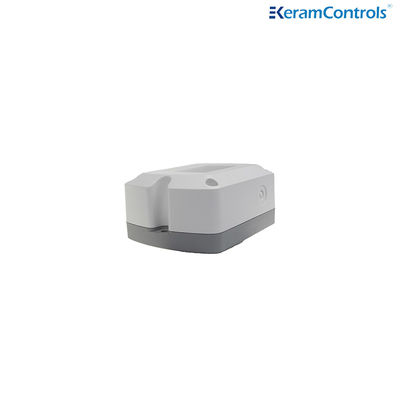

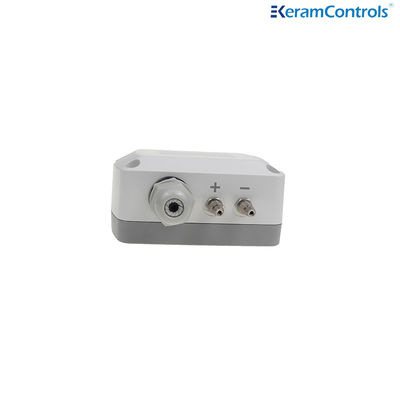

Customized KDP210 Air DPT Differential Pressure Transmitter Analog Output IP65
The KDP210 differential pressure transmitter has high accuracy, ultra-low & adjustable
range, fast response characteristics, widely used in clean electronics and pharmaceutical
factories, as well as large commercial buildings, medical centers and transportation hub.series differential pressure The KDP210 transmitters are engineered for building automation in the HVAC/R industry. The most technologically advanced transmitters on the market measuring static and differential pressure, with field selectable units, range and output, all in a single device.
Model | KDP210 |
Measurement Units | Pa,mmH2O,inWG,mmHG,KPa,mbar |
Accuracy | <±1% FS@-5 to +65℃ |
Response Time | 0.5s |
Repeat Stability | ±0.01 % at FS /Year |
Resolution | 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG |
Media | Air and neutral gases |
Operating Temperature | -20…+70℃ |
Storage Temperature | -40…+60℃ |
Power Consumption | <1.5W |
Tolerated over pressure | x15 |
Power Supply | 16~30VAC/DC (3wire) / 18~30VDC (2wire) |
Output Signal | 4-20mA(2wire) |
4-20mA(3wire) | |
0~5V/0~10VDC(3wire) | |
RS-485 | |
Customized | |
Auto Zero | Manual calibration |
Housing Material | PC&ABS,UL94V-0 |
Protection Class | IP65/NEMA4 |
Display | Backlight LCD display |
Cable Gland | M16*1.5 |
KDP210-Range-display-output
Model | Ranges | Display | output | |||
KDP210 | -100~+100Pa | (1) | LCD backlight | (D) | 4-20mA(2 wire) | (E) |
-1000~+1000Pa | (2) | 4-20mA(3 wire) | (F) | |||
-2000~+2000Pa | (3) | 0-5/0-10VDC (3 wire) | (G) | |||
-10000~+10000Pa | (4) | RS-485 | (H) | |||
Customized |
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
