0-5V Temperature Humidity And Pressure Sensor IP65 CE
| Name: | Temperature Humidity Transmitter | Customized: | OEM |
|---|---|---|---|
| Certification: | CE | Accuracy (Humidity): | 2.0% （0-90% @ 25℃） |
| Accuracy (Temperature): | 0.1 ℃ @ 20~60℃ | Operation Termperature: | -35~+80℃ |
| Power Supply: | 16-30Vac/dc | Output: | 0-10V 0-5V |
| Material: | GF+PC | Protection: | IP65 |
| Highlight |
KTH500 5V Temperature Humidity And Pressure Sensor,KTH500 IP65 Temperature Humidity And Pressure Sensor,KTH500 CE humidity room sensor |
||
0-5V Temperature Humidity And Pressure Sensor IP65 CE
Description

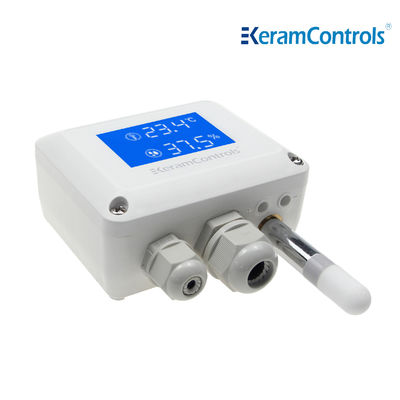

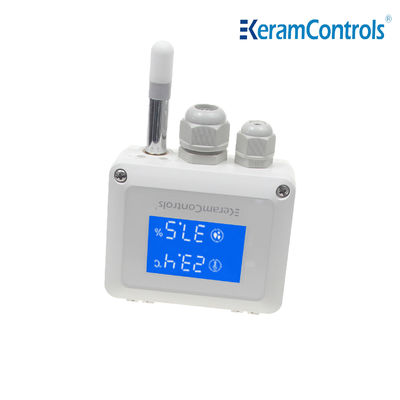

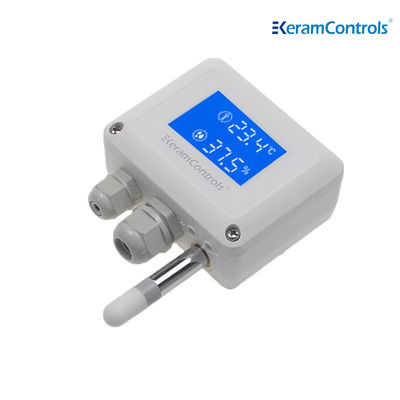

KTH500 Humidity and temperature Transmitter
IP65 LED Display HVAC Air Quality Room Temperature Humidity Transmitter Analog Output
KTH500 temperature and humidity transmitters can be used to measure relative humidity and temperature in various HVAC applications, as well as monitor building energy management systems. This series of products includes duct-mounted transmitters, IP65 protection wall-mounted transmitter.
KTH500 uses a new generation of digital sensors, with a humidity accuracy of 2%, a temperature accuracy of 0.1°C, harsh environment testing, aging testing and accuracy calibration before shipment to make the detection data more accurate and stable.
Feature
- LCD display
Large size backlight display
- Shell connected by hinge
More convenient wiring and setting

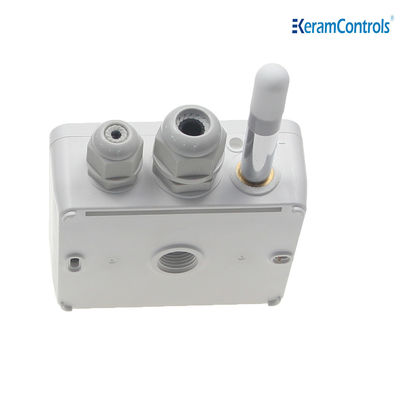

- M16 M20 double cable gland
Cable size φ5…12mm
- Smooth and flflat surface
Prevent the pollution of the shell surface in harsh environment
- IP65/NEMA4
Application
- HVAC system
- Greenhouse
- Food transportation
- Cold storage and refrigeration
- Clean room environment monitoring
Technical Data
| Model | KTH500 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Display | Backlight LCD |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
Dimension(mm)
Measuring range adjustment
Output setting(3 wire Model)
Ordering guide
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
