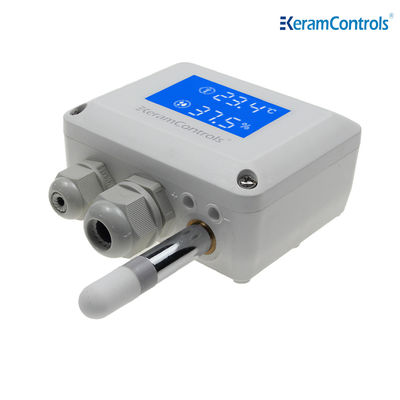

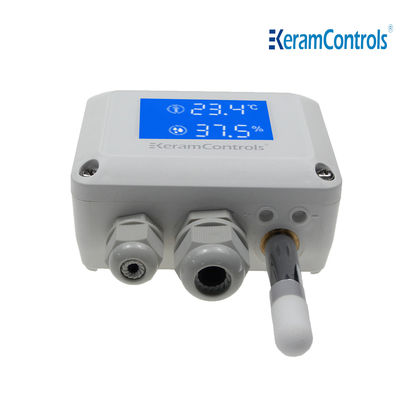

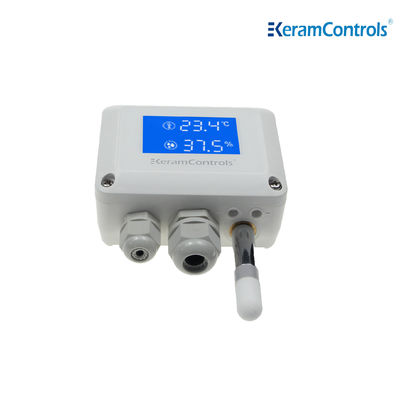

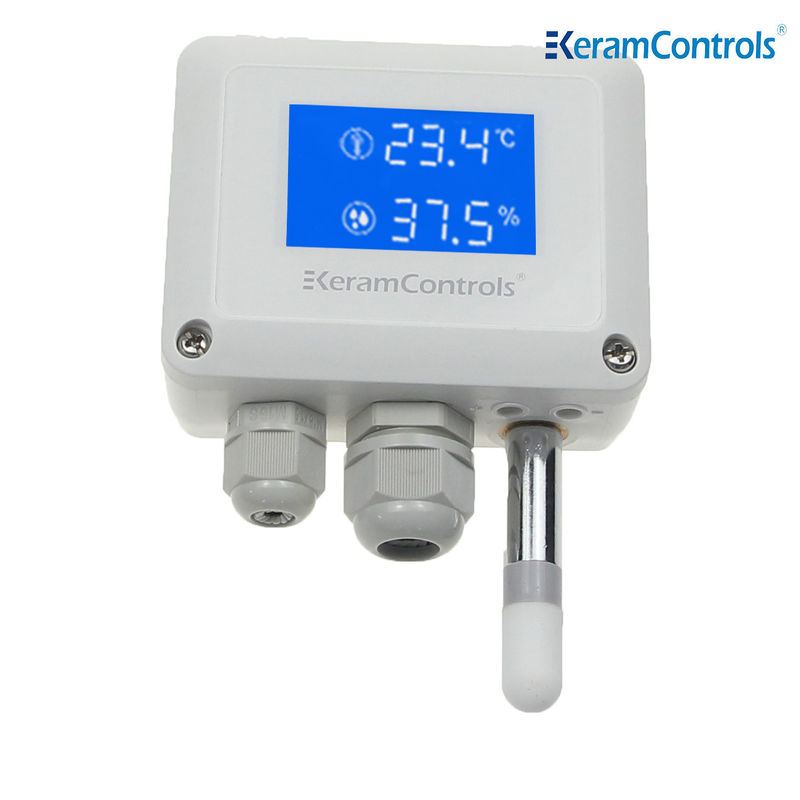

LED Display Temperature Humidity Transmitter 16-30V

LED Display Temperature Humidity Transmitter 16-30V
LED Display Temperature Humidity Transmitter 16-30V
LED Display Temperature Humidity Transmitter 16-30V LED Display Temperature Humidity Transmitter 16-30V LED Display Temperature Humidity Transmitter 16-30V LED Display Temperature Humidity Transmitter 16-30V LED Display Temperature Humidity Transmitter 16-30V

Large Image :  LED Display Temperature Humidity Transmitter 16-30V

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KTH500
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD45-60/piece EXW factory
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs per month

LED Display Temperature Humidity Transmitter 16-30V

Description
Name: Temperature Humidity Transmitter Customized: OEM
Certification: CE Accuracy (Humidity): 2.0% (0-90% @ 25℃)
Accuracy (Temperature): 0.1 ℃ @ 20~60℃ Operation Termperature: -35~+80℃
Power Supply: 16-30Vac/dc Output: RS-485
Material: GF+PC Protection: IP65
High Light:

KTH500 LED Display Temperature Humidity Transmitter

,

Keram Controls Temperature Humidity Transmitter

,

KTH500 30V temperature humidity transmitter

LED Display Temperature Humidity Transmitter 16-30V



Description



KTH500 Humidity and temperature Transmitter

LED Display Air Duct Temperature Humidity Transmitter Digital Output IP65



KTH500 temperature and humidity transmitters can be used to measure relative humidity and temperature in various HVAC, as well as monitor building energy management systems. This series of products includes duct-mounted transmitters,IP65 protection wall-mounted transmitter.

KTH500 uses a new generation of digital sensors, with a humidity accuracy of 2%, a temperature accuracy of 0.1°C, harsh environment testing, aging testing and accuracy calibration before shipment to make the detection data more accurate and stable.




Feature



  • LCD display

Large size backlight display

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH500
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Display Backlight LCD
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



LED Display Temperature Humidity Transmitter 16-30V 0LED Display Temperature Humidity Transmitter 16-30V 1


Measuring range adjustment



LED Display Temperature Humidity Transmitter 16-30V 2


Output setting(3 wire Model)



LED Display Temperature Humidity Transmitter 16-30V 3


Ordering guide



KTH500——Output——Installation——Filter



Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



LED Display Temperature Humidity Transmitter 16-30V 4

LED Display Temperature Humidity Transmitter 16-30V 5



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
