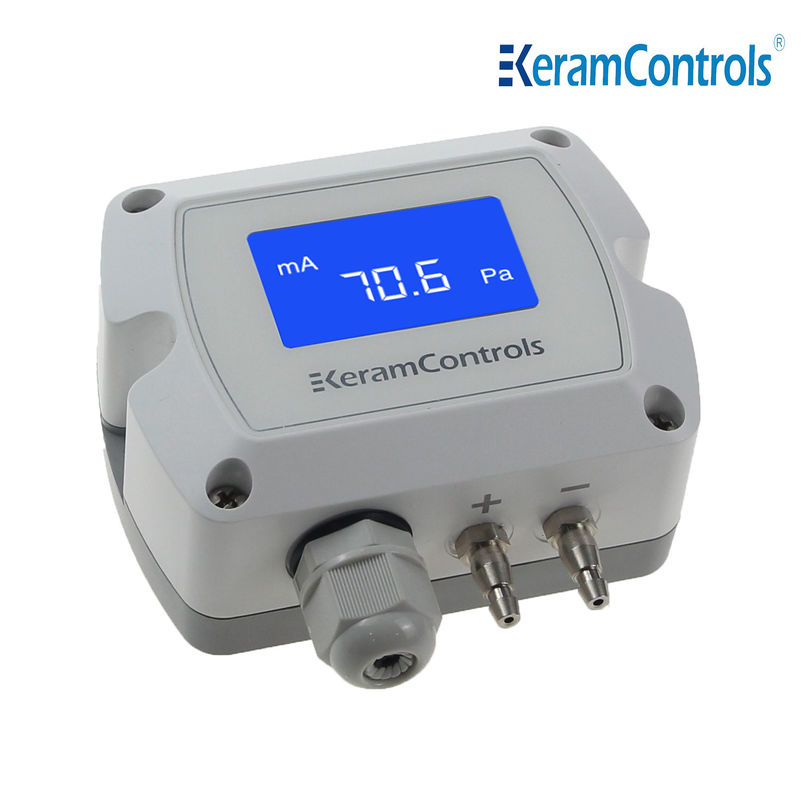

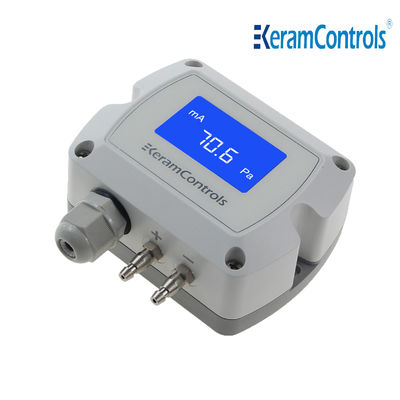

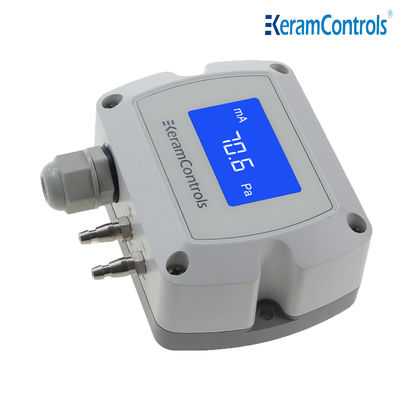

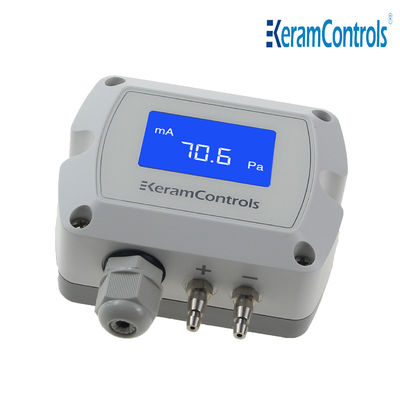

LED Display Air Pressure Transducer Sensor 0-5V HVAC

LED Display Air Pressure Transducer Sensor 0-5V HVAC
LED Display Air Pressure Transducer Sensor 0-5V HVAC
LED Display Air Pressure Transducer Sensor 0-5V HVAC LED Display Air Pressure Transducer Sensor 0-5V HVAC LED Display Air Pressure Transducer Sensor 0-5V HVAC LED Display Air Pressure Transducer Sensor 0-5V HVAC LED Display Air Pressure Transducer Sensor 0-5V HVAC

Large Image :  LED Display Air Pressure Transducer Sensor 0-5V HVAC

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD55-70/piece EXW factory
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs per month

LED Display Air Pressure Transducer Sensor 0-5V HVAC

Description
Name: Air Differential Pressure Transmitter Customized Support: OEM
Warranty: 1 Year Accuracy: 1.0% FS
Pressure Range: 0~100...1,000Pa...10,000Pa Power Supply: 16-30Vac/dc
Output Signal: 4-20mA, 0-10V, 0-5V, RS485 Operation Temperature: -20~+80℃
Certification: CE Meida: Air And Neutral Gases
Material: ABC+PC Protection: IP65
High Light:

LED Display Air Pressure Transducer Sensor

,

5V air pressure transducer sensor

,

HVAC air pressure transmitter

LED Display Air Pressure Transducer Sensor 0-5V HVAC



Description



KDP210 Series Differential pressure transmitter



LED Display Building Automation DPT Air Differential Pressure Transmitter 4-20mA Output IP65



The KDP210 differential pressure transmitter are engineered for building automation in the HVAC/R industry.

The KDP210 has high accuracy, ultra-low & adjustable range, fast response characteristics, widely used in clean electronics and pharmaceutical factories, as well as large commercial buildings, medical centers and transportation hub.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display
Cable Gland M16*1.5

Dimension(mm)



LED Display Air Pressure Transducer Sensor 0-5V HVAC 0

LED Display Air Pressure Transducer Sensor 0-5V HVAC 1


Measuring range adjustment



LED Display Air Pressure Transducer Sensor 0-5V HVAC 2


Output setting(3 wire Model)



LED Display Air Pressure Transducer Sensor 0-5V HVAC 3

LED Display Air Pressure Transducer Sensor 0-5V HVAC 4


Manual Zero-point correction



LED Display Air Pressure Transducer Sensor 0-5V HVAC 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



LED Display Air Pressure Transducer Sensor 0-5V HVAC 6



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
