Product Details:
|
Model: | QAD | Media: | Air,non-combustible And Non-aggressive Gasses |
---|---|---|---|
Max Operating Pressure: | 10kPa | Operating Temperature: | -40℃to 85℃ |
Contact Arrangement: | SPDT | ||
Highlight: | KML1 24V Liquid Flow Sensors,KML1 5V Liquid Flow Sensors,KML1 0.35 Mpa water flow rate sensor |

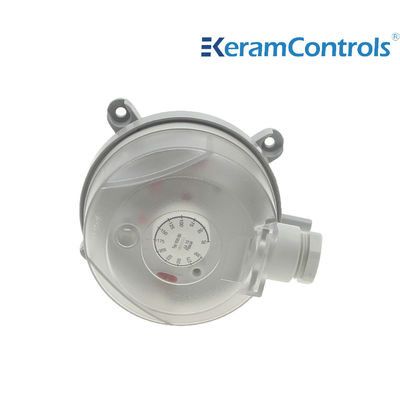

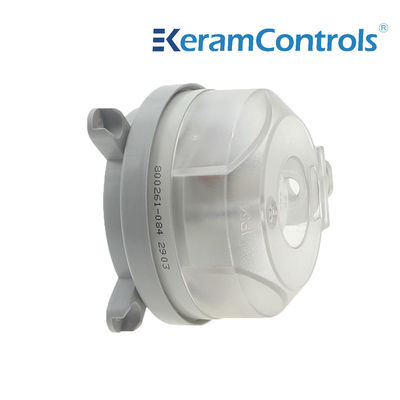

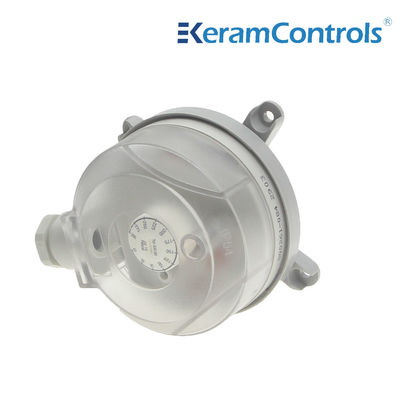

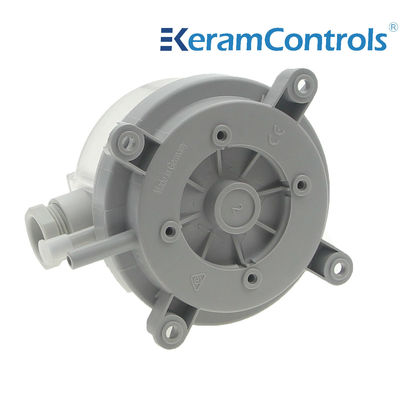

QAD series gas pressure controller can effectively protect against overheating and overcooling, can effectively sense the pressure change of small gases, and can be used for monitoring air conditioning and fans.
Model | QAD |
Media | Air,non-combustible and non-aggressive gasses |
Max Operating Pressure | 10kPa |
Mounting Position | Diaphragm in any vertical plane |
Degree of protection | IP54(with cover) |
Operating Temperature | -40℃to 85℃ |
Contact Arrangement | SPDT |
Electrical Rating | Resistance: Initial: < 50 milliohms; |
Current1.5A resistive(0.4A inductive) 250V | |
Electric Connection | 6.3x0.8 blade 46244 or screw terminals |
Material | Housing:ABS |
Duct connectors: ABS | |
Membrane: Silicone | |
Cable sleeve:PVC | |
Weight | 0.15kg(0.35kg with flexible pipe) |
Connection | φ6.0mm for tube connection |
Approval | UL,CE,RoHS |
QAD series air pressure controls is factory-calibrated for vertical position. If installed horizontally, this will affect the switching point as following:
• with cover facing upwards, switching point is 15Pa higher than scale;
• with cover facing downwards, switching point is 15Pa lower than scale.
Note: Do not install upside down with trip pressures of less than 50pa!
Model | Pressure Range | Differential | Tolerance |
QAD-1 | 20~200Pa | 10Pa | ±15% |
QAD-2 | 30~300Pa | 10Pa | ±15% |
QAD-3 | 40~400Pa | 20Pa | ±15% |
QAD-4 | 50~500Pa | 20Pa | ±15% |
QAD-5 | 200~1000Pa | 100Pa | ±15% |
QAD-6 | 500~2500Pa | 150Pa | ±15% |
QAD-7 | 1000~5000Pa | 250Pa | ±15% |
