Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KTC111
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: USD2-7/piece EXW factory
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 pcs per week

2 Wire Waterproof Temperature Sensors 316 Stainless IP65

Description
Name: Waterproof Temperature Sensors Warranty: 1 Year
Accuracy: 2B, B, A, 1 / 3B Etc. Measuring Range: -30 To 100℃
Probe Diameter: 4mm, 2, 3, 5, 6mm Or Customized Probe Length: 30mm (default), 10,20,40,50,60,70,80,90,100mm Or Customized
Cable Length: 0.5 M, 5 M Or Customized Probe Material: Stainless 316
Protection: IP65
High Light:

KTC111 Waterproof Temperature Sensors

,

316 Stainless Waterproof Temperature Sensor

,

KTC111 IP65 sensor waterproof

2 Wire Waterproof Temperature Sensors 316 Stainless IP65



Description

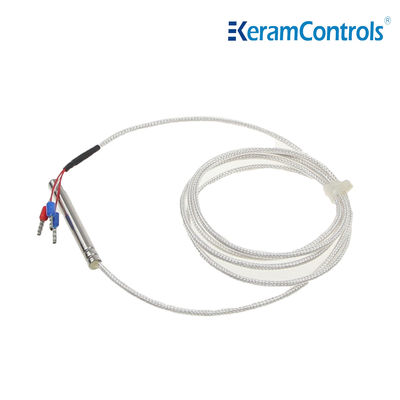

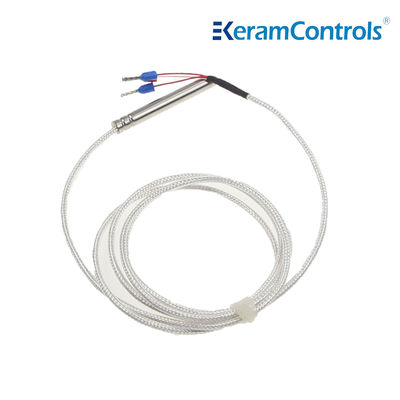

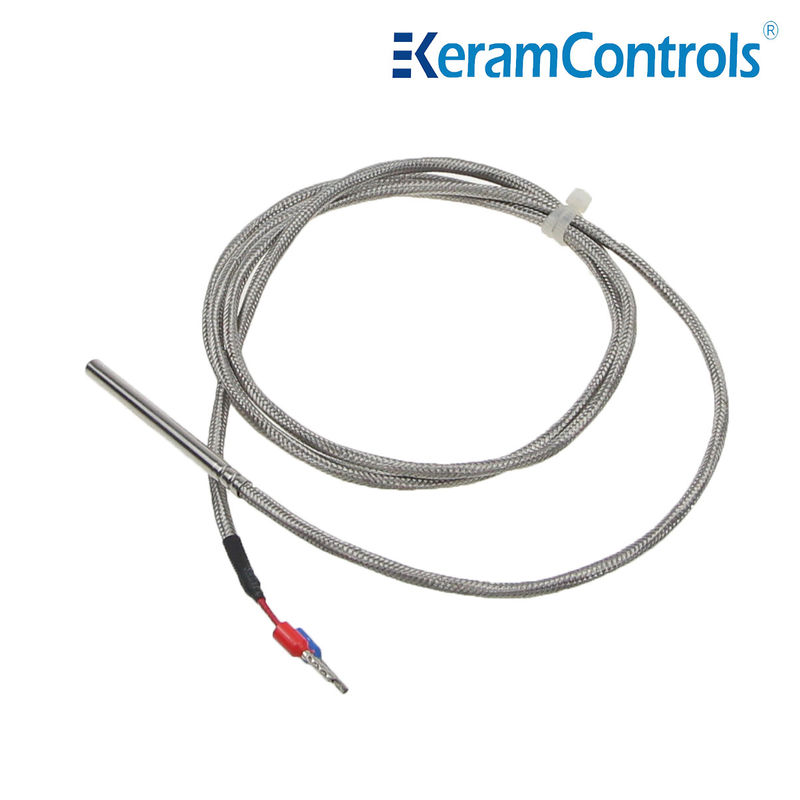

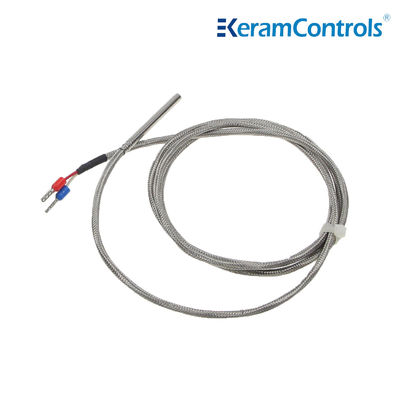

KTC111 Cable Temperature Sensor

PT100 PT1000 Waterproof Temperature Sensors 2 / 3 Wire Output



KTC111 series temperature sensor designed for the high temperature measurement in the field of HVAC and various industrial process control.

The KTC111 series uses passive resistance signal output, with a variety of temperature-sensitive components, such as NTC10K, Pt100, Pt1000, etc.

The IP65 cable interface can effectively guarantee the waterproof performance of the sensor.


Specifications



Model KTC111
Temperature sensor Element Standard resistance
NTC10K B3435 R25:10KΩ±1%
Pt100 R0: 100Q
Pt1000 R0:1000Q
Element connection 2 wire or 3 wire
Cable material Fiberglass,Silicone,PTFE
Sensor probe material 316 stainless steel
Protection class IP65/NEMA4
operating temperature Fiberglass cable 0...350℃
Silicone cable -60...180℃
PTFE cable -20...250℃
Storage temperature -30...+70℃

Dimensions





2 Wire Waterproof Temperature Sensors 316 Stainless IP65 0


Ordering Guide



KTC111-Element-Cable material-Cable length



Model Element Cable material Cable length
KTC111 NTC10K B3435 (G) Fiberglass cable (J) 1m (A)
Pt100 (H) Silicone cable (K) 2m (B)
Pt1000 (l) PTFE cable (L) 3m (C)
        4m (D)
        5m (E)
        10m (F)



2 Wire Waterproof Temperature Sensors 316 Stainless IP65 1



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
