Product Details:
|
| Name: | Airflow Switch | Permissible Temperature: | Housing(-40 ~ 85℃）Paddle（-10 ~ 85℃） |
|---|---|---|---|
| Application: | Air And Non Aggressive Gases | Output: | SPDT |
| Protection: | IP65 | Color: | White |
| High Light: | 250V HVAC duct air flow switch,250V duct air flow switch,8A airflow hvac |
||
KAFS Series Flow Switch.

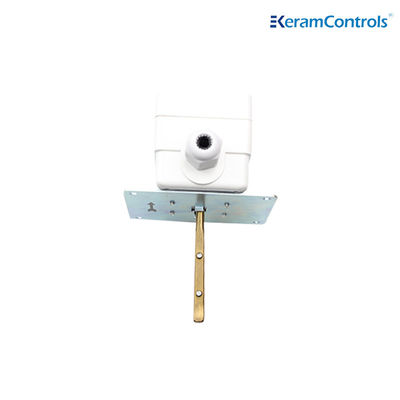

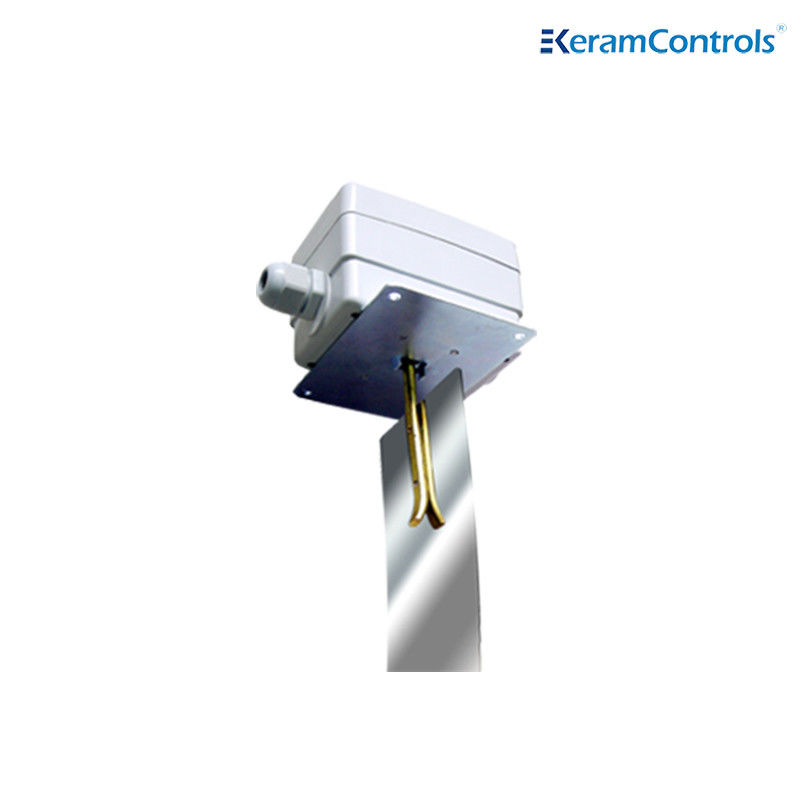

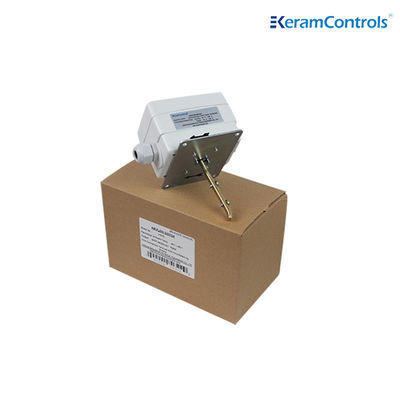

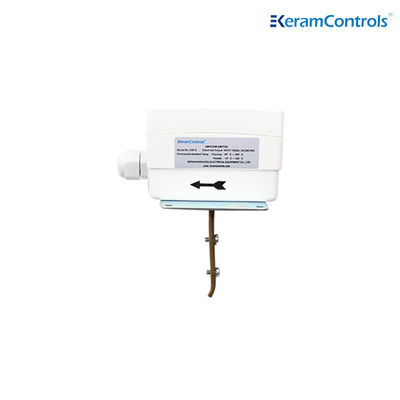

HVAC Air Duct Mounted IP65 250V 8A Stainless Steel Paddle Airflow Switch.
KAFS series adjustable air flow paddle switch is used to control and monitor air and non-aggressive gas flow in ducts. Well-suited for air ducts, air conditioning and air handling systems.
Control and monitor air and non aggressive gases flow in ducts, chambers, etc.,of heating, cooling, and air conditioning equipment.
● Renovated SPDT micro switch ensures the reliable switch function
● Stainless steel paddle
● Cut-in and cut-out
● Brass level
● IP65
| Model | KAFS |
| Type of operation | On/Off,single-stage,micro switch |
| Flow rate switching | |
| - Cut-out | Min. 1.0 m/sec, Max. 8.0 m/sec |
| - Cut-in | Min. 2.5 m/sec, Max. 9.2 m/sec |
| Flow rate setting adjustment | Internal screw |
| Sensing element | Paddle |
| Paddle size | 3.2 x 6.9 in. (80 x 175 mm) |
| Paddle w/level - Length | 7.9 in. (200 mm) |
| Flow applications | Air and non aggressive gases |
| Paddle material | Stainless steel |
| Paddle level material | Brass |
| Permissible ambient temperature | |
| - Housing | -40℉ to 185℉(-40℃ to 85℃) |
| - Paddle | 14℉ to 185℉(-10℃ to 85℃) |
| Permissible ambient humidity | 10...90%RH,non-condensing |
| Cable entry | M18 fitting |
| Housing - Material | Base:Steel,galvanized; Cover:ABS,fire retardant or PC |
| - Color | white |
| - Protection | IP65 |
| Installation | Duct mounted |
| Ship weight | 0.7kg |
The flow switch should be mounted into a duct or chamber where the air paddle can freely point horizontally downwards. To avoid air swirl and paddle instability, straight zones should be provided for a length of 5 times the diameter of duct upstream and downstream from the installation location.
The units are factory calibrated to the minimum switch-off value. To increase the set value, adjust the range screw clockwise. Due to the risk of fracture at air speeds of higher than 5.0 m/sec, the paddle must be cut off on the marked side. When the paddle is cut off, the minimum cut-out value increases from 1.0 m/sec to 2.5 m/sec.
