Product Details:
|
| Name: | Airflow Switch | Permissible Temperature: | Housing(-40 ~ 85℃）Paddle（-10 ~ 85℃） |
|---|---|---|---|
| Application: | Air And Non Aggressive Gases | Output: | SPDT |
| Protection: | IP65 | Color: | White |
| Highlight: | KAFS Non Aggressive Gases Airflow Switch,KAFS Air Airflow Switch,KAFS White switch air flow |
||
KAFS Series Flow Switch.

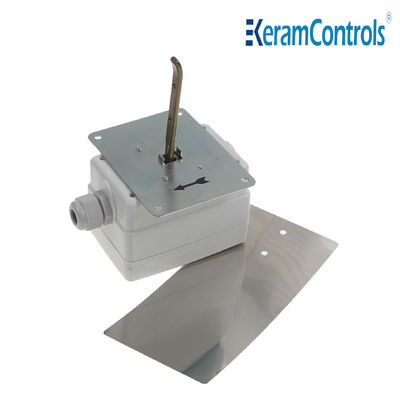

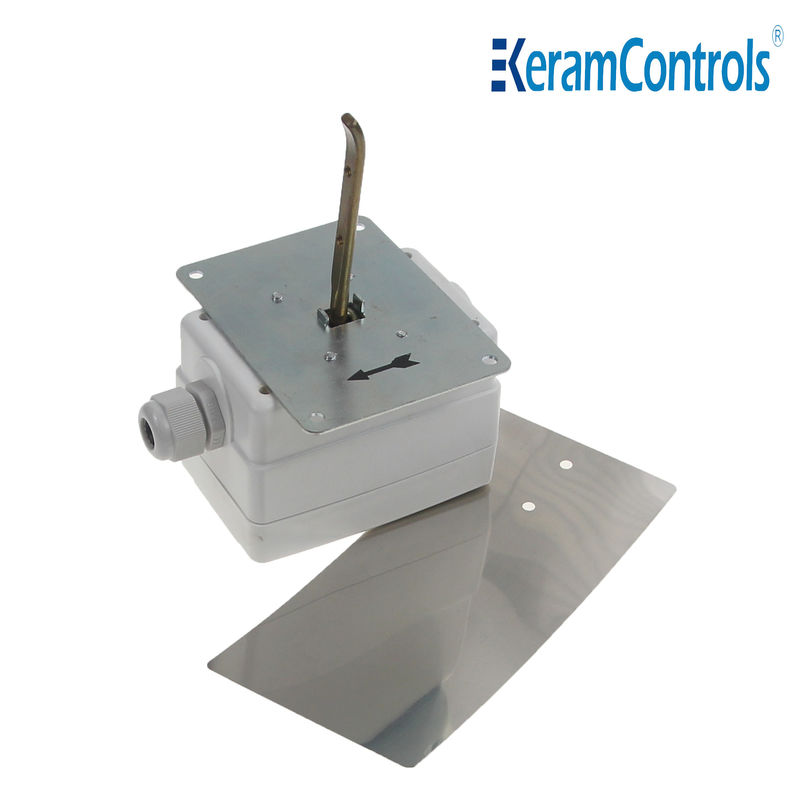

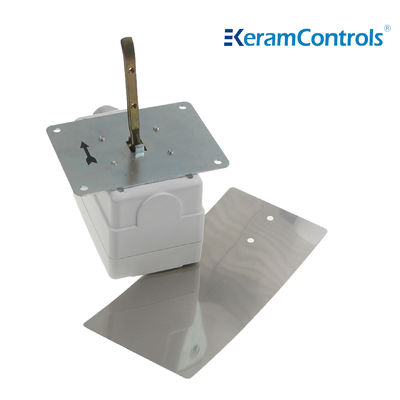

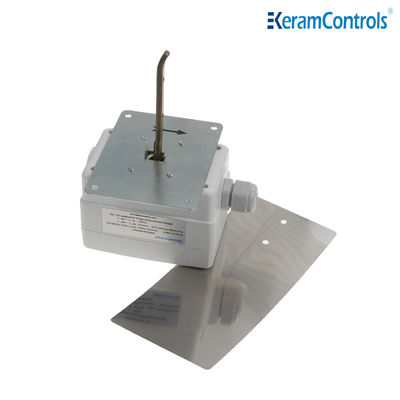

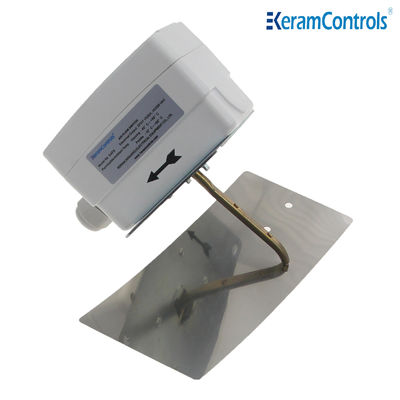

Airflow Switch Air flow monitoring IP65 Stainless Steel Paddle.
KAFS series adjustable air flow paddle switch is used to control and monitor air and non-aggressive gas flow in ducts. Well-suited for air ducts, air conditioning and air handling systems.
Control and monitor air and non aggressive gases flow in ducts, chambers, etc.,of heating, cooling, and air conditioning equipment.
● Renovated SPDT micro switch ensures the reliable switch function
● Stainless steel paddle
● Cut-in and cut-out
● Brass level
● IP65
| Model | KAFS |
| Type of operation | On/Off,single-stage,micro switch |
| Flow rate switching | |
| - Cut-out | Min. 1.0 m/sec, Max. 8.0 m/sec |
| - Cut-in | Min. 2.5 m/sec, Max. 9.2 m/sec |
| Flow rate setting adjustment | Internal screw |
| Sensing element | Paddle |
| Paddle size | 3.2 x 6.9 in. (80 x 175 mm) |
| Paddle w/level - Length | 7.9 in. (200 mm) |
| Flow applications | Air and non aggressive gases |
| Paddle material | Stainless steel |
| Paddle level material | Brass |
| Permissible ambient temperature | |
| - Housing | -40℉ to 185℉(-40℃ to 85℃) |
| - Paddle | 14℉ to 185℉(-10℃ to 85℃) |
| Permissible ambient humidity | 10...90%RH,non-condensing |
| Cable entry | M18 fitting |
| Housing - Material | Base:Steel,galvanized; Cover:ABS,fire retardant or PC |
| - Color | white |
| - Protection | IP65 |
| Installation | Duct mounted |
| Ship weight | 0.7kg |
The flow switch should be mounted into a duct or chamber where the air paddle can freely point horizontally downwards. To avoid air swirl and paddle instability, straight zones should be provided for a length of 5 times the diameter of duct upstream and downstream from the installation location.
The units are factory calibrated to the minimum switch-off value. To increase the set value, adjust the range screw clockwise. Due to the risk of fracture at air speeds of higher than 5.0 m/sec, the paddle must be cut off on the marked side. When the paddle is cut off, the minimum cut-out value increases from 1.0 m/sec to 2.5 m/sec.
