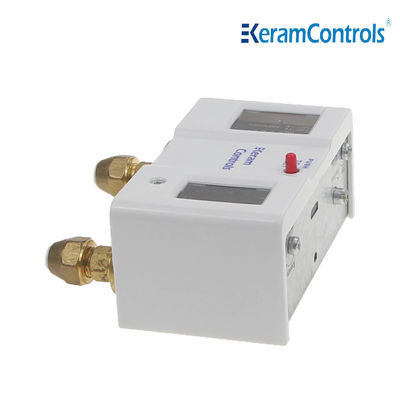

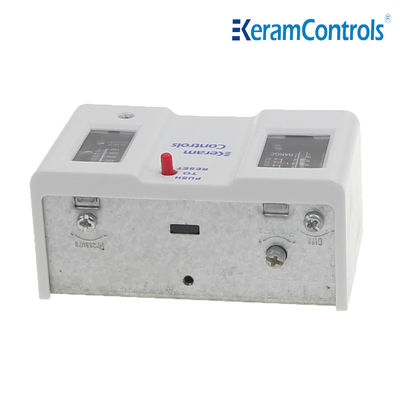

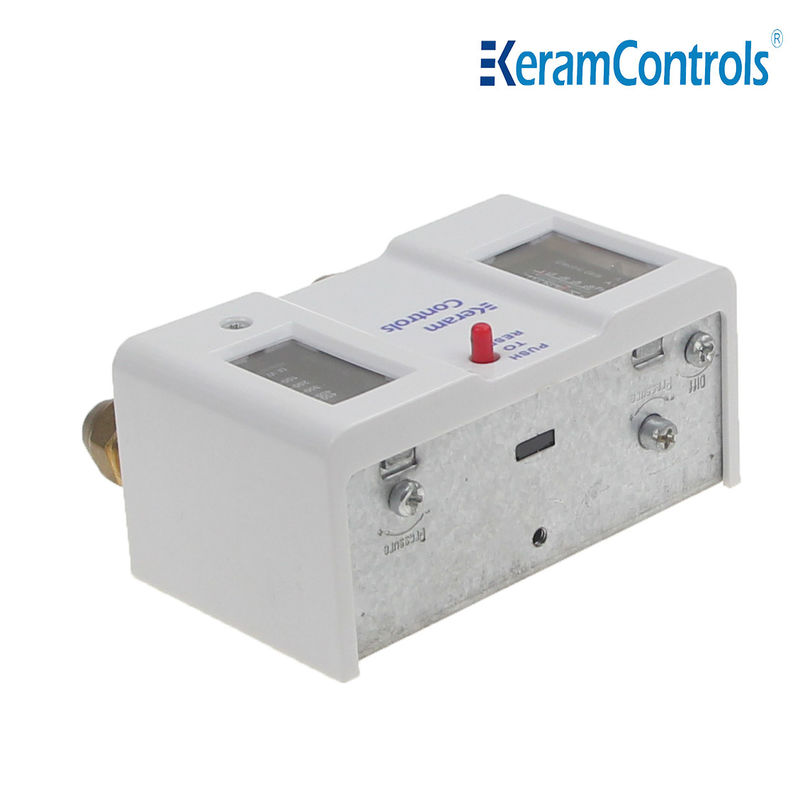

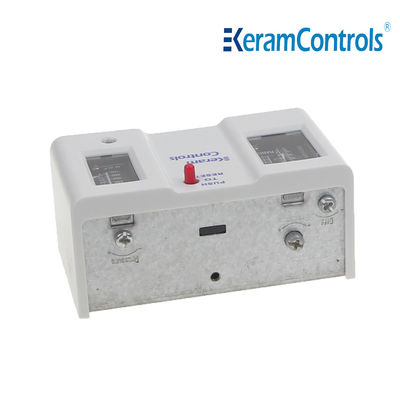

250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44

250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44
250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44
250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44 250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44 250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44 250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44 250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44

Large Image :  250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: Q830 seires
Payment & Shipping Terms:
Minimum Order Quantity: 40 pcs
Price: USD10-20/piece EXW factory
Packaging Details: Carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs per month

250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44

Description
Name: Adjustable Pressure Switches Media: Air Or Liquid
Max Current: 72A Max Voltage: 250V
Max Working Pressure: 33 Bar Permissible Temperature: -20 ~ 120℃
Installation: Vertical Installation Delivery: 7-10 Working Days
Contact Arrangement: SPDT Electrical Rating: 125VAC/20A, 250VAC/10A, 24VC/64A
Protection: IP44 Color: White
High Light:

72A Adjustable Pressure Switches

,

250V Adjustable Pressure Switches

,

IP44 adjustable air pressure switch

Description



Q830 Series Pressure Switch.

Q830 series adjustable pressure switches, suitable for the monitoring of flow failure and proving in pumps, chillers, valves etc. Units have an adjustable setpoint and differential. It can be not only used in fluorinated refrigerant, but also in the air and liquid (allowed liquid temp. -20 to 120°C)


Specification



Model Low pressure(bar) High pressure(bar) Reset form(bar) Factory setting(bar)
Pressure adjust range Differential Pressure adjust range Differential Low pressure High pressure Low pressure High pressure
OFF ON OFF ON
Q830 -0.5~6 -0.6~4 8~30 3~5(fixed) Auto Auto 3 2 20 15
Q830HM -0.5~6 -0.6~4 8~30 ≤5 Auto Manual 3 2 20 Manual reset
Q830HLM -0.5~6 ≤1 8~30 ≤5 Manual Manual 3 Manual 20 Manual reset

Dimensions(mm)



250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44 0


Electric Wiring



Rated Amps(A)

Rated Voltage(V)

Power Factory

(Cosφ)

125/250V

AC

Non-Industry Current 1 12
Industry Current Full Load 0.75 12
Locked Roter 0.45 72

Connection & Installation



250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44 1


Mounting Plate

250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44 2

250V 72A Adjustable Pressure Switches For Pressure Monitoring IP44 3



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
