Product Details:
|
| Name: | Temperature Transmitter | Protection: | IP65 |
|---|---|---|---|
| Accuracy (Temperature): | 0.3 ℃ @ 20~60℃ | Operation Termperature: | -35~+80℃ |
| Power Supply: | 16-30Vac/dc | Output: | 4-20mA 0-10V 0-5V RS485 |
| Highlight: | Keram Controls 30V Digital Temperature Transmitters,Keram Controls Digital Temperature Transmitters,Keram Controls temperature and humidity transmitter |
||

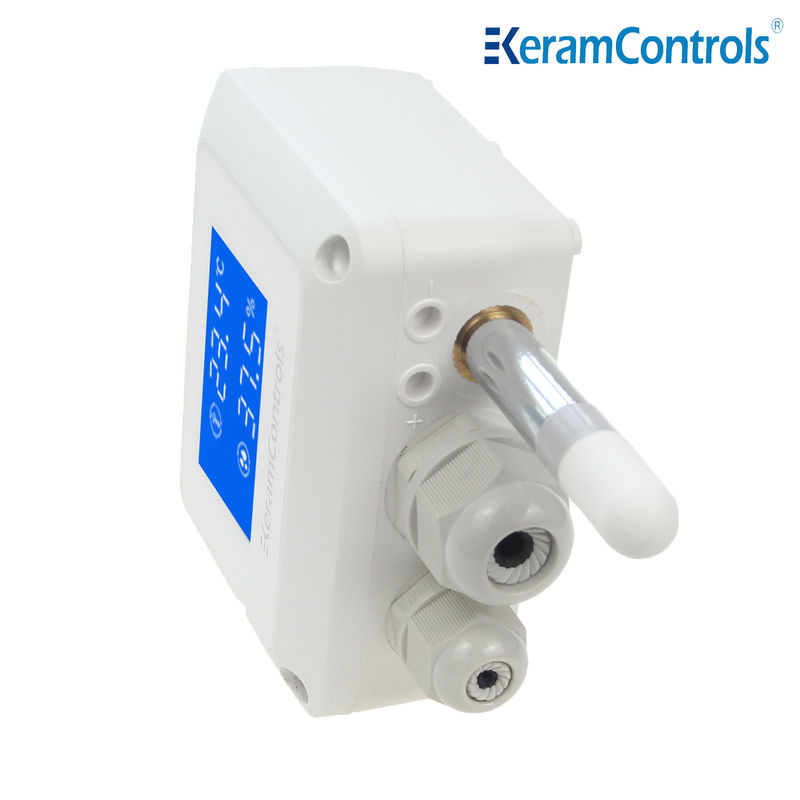

KTH500 temperature Transmitter

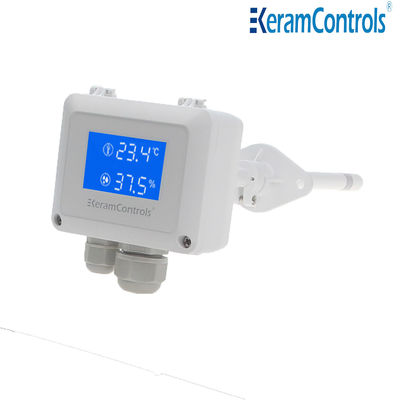

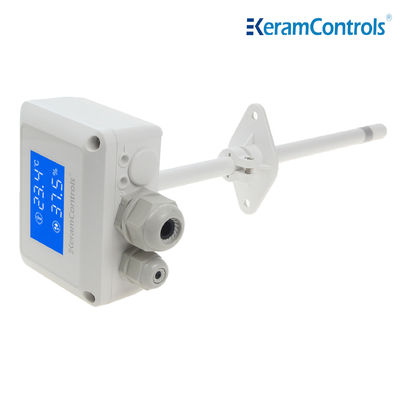

Temperature Transmitter Air Duct Mounted 4-20mA Output IP65

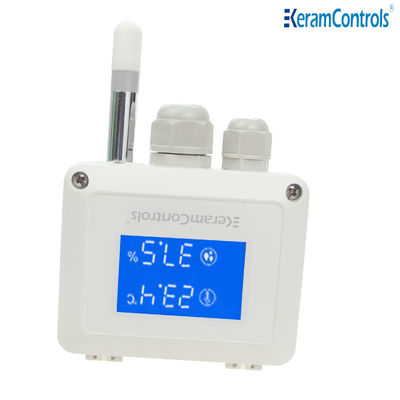

KTH500 temperature transmitters can be used to measure temperature in various HVAC applications, as well as monitor building energy management systems. This series of products includes duct-mounted transmitters, IP65 protection wall-mounted transmitter.
KTH500 uses a new generation of digital sensors, with a temperature accuracy of 0.3°C, harsh environment testing, aging testing and accuracy calibration before shipment to make the detection data more accurate and stable.
Large size backlight display
More convenient wiring and setting
Cable size φ5…12mm
Prevent the pollution of the shell surface in harsh environment
| Model | KTH500 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 ) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Display | Backlight LCD |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature | |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity | |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter | |||
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) | |
| 0-5V/0-10VAD(3 wire) | (G) | |||||
| RS-485 | (H) | |||||
