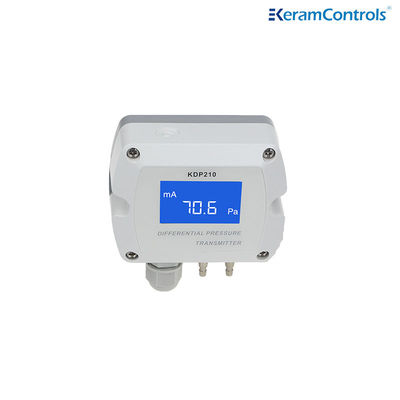

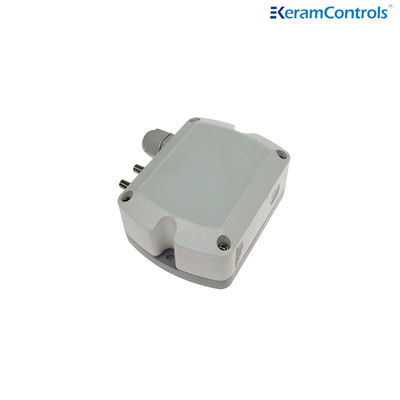

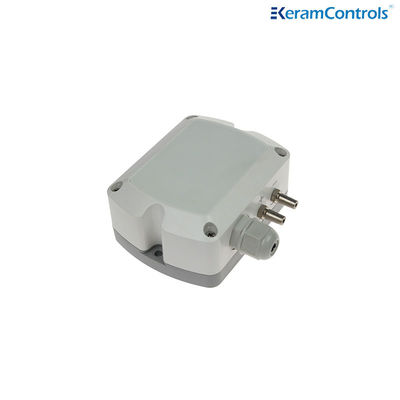

0-10V DPT Differential Pressure Transmitter

0-10V DPT Differential Pressure Transmitter
0-10V DPT Differential Pressure Transmitter
0-10V DPT Differential Pressure Transmitter 0-10V DPT Differential Pressure Transmitter 0-10V DPT Differential Pressure Transmitter 0-10V DPT Differential Pressure Transmitter 0-10V DPT Differential Pressure Transmitter

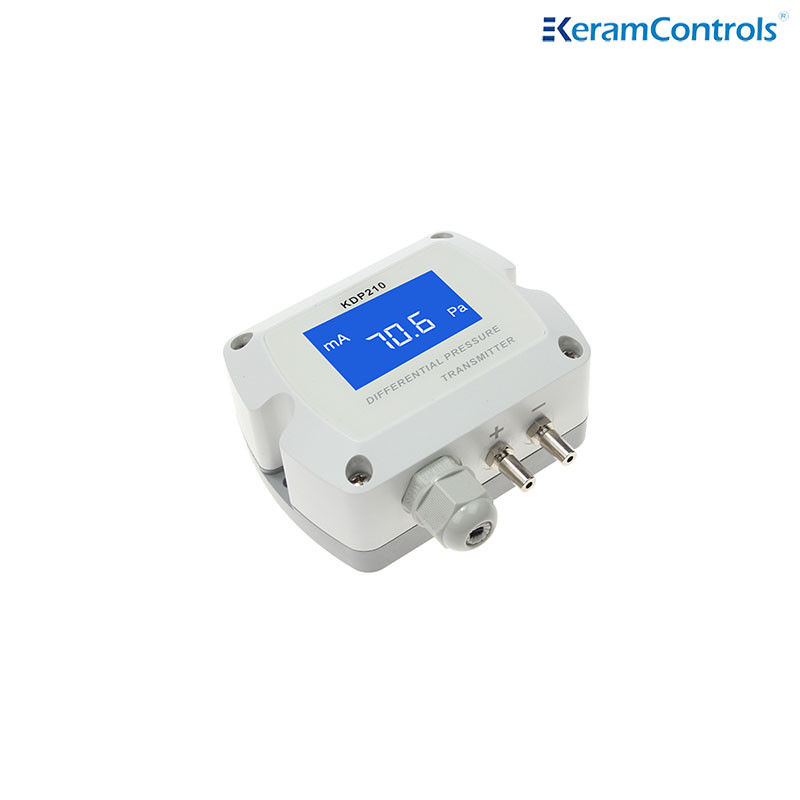

Large Image :  0-10V DPT Differential Pressure Transmitter

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD55-70/piece EXW factory
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs per month

0-10V DPT Differential Pressure Transmitter

Description
Name: Air Differential Pressure Transmitter Certification: CE
Warranty: 1 Year Customized Support: OEM
Accuracy: 1.0% FS Pressure Range: 0~100...1,000Pa...10,000Pa
Power Supply: 16-30Vac/dc Output Signal: 4-20mA, 0-10V, 0-5V, RS485
Operation Temperature: -20~+80℃ Meida: Air And Neutral Gases
Material: ABC+PC Protection: IP65
High Light:

10V DPT Differential Pressure Transmitter

,

20mA DPT Differential Pressure Transmitter

,

4mA diff pressure sensor



0-10V DPT Differential Pressure Transmitter



Description



Building Automation DPT Differential Pressure Transmitter 0-10V Output



The KDP210 differential pressure transmitter has high accuracy, ultra-low & adjustable range, fast response characteristics, widely used in clean electronics and pharmaceutical factories, as well as large commercial buildings, medical centers and transportation hub. The most technologically advanced transmitters on the market measuring static and differential pressure, with field selectable units, range and output, all in a single device.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display
Cable Gland M16*1.5

Dimension(mm)



0-10V DPT Differential Pressure Transmitter 0

0-10V DPT Differential Pressure Transmitter 1


Measuring range adjustment



0-10V DPT Differential Pressure Transmitter 2


Output setting(3 wire Model)



0-10V DPT Differential Pressure Transmitter 3

0-10V DPT Differential Pressure Transmitter 4


Manual Zero-point correction



0-10V DPT Differential Pressure Transmitter 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



0-10V DPT Differential Pressure Transmitter 6



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
