HVAC Temperature Humidity Transmitter IP65 Automation

HVAC Temperature Humidity Transmitter IP65 Automation
HVAC Temperature Humidity Transmitter IP65 Automation
HVAC Temperature Humidity Transmitter IP65 Automation HVAC Temperature Humidity Transmitter IP65 Automation HVAC Temperature Humidity Transmitter IP65 Automation HVAC Temperature Humidity Transmitter IP65 Automation

Large Image :  HVAC Temperature Humidity Transmitter IP65 Automation

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KTH510
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD40-55/piece EXW factory
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs per month

HVAC Temperature Humidity Transmitter IP65 Automation

Description
Name: Temperature Humidity Transmitter Certification: CE
Customized: OEM Operation Termperature: -35~+70℃
Accuracy (Humidity): 2.5% (0-90% @ 25℃) Accuracy (Temperature): 0.2 ℃ @ 20~60℃
Power Supply: 16-30Vac/dc Output: RS-485
Material: GF+PC Protection: IP65
High Light:

HVAC Temperature Humidity Transmitter

,

IP65 Temperature Humidity Transmitter

,

Automation duct temperature

HVAC Temperature Humidity Transmitter IP65 Automation



Description

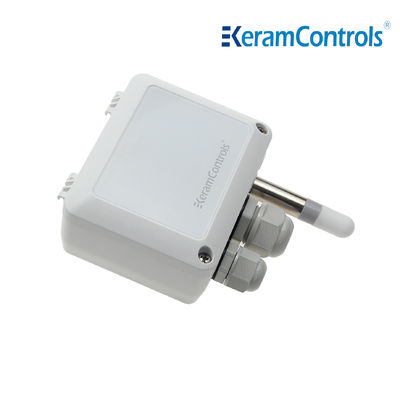

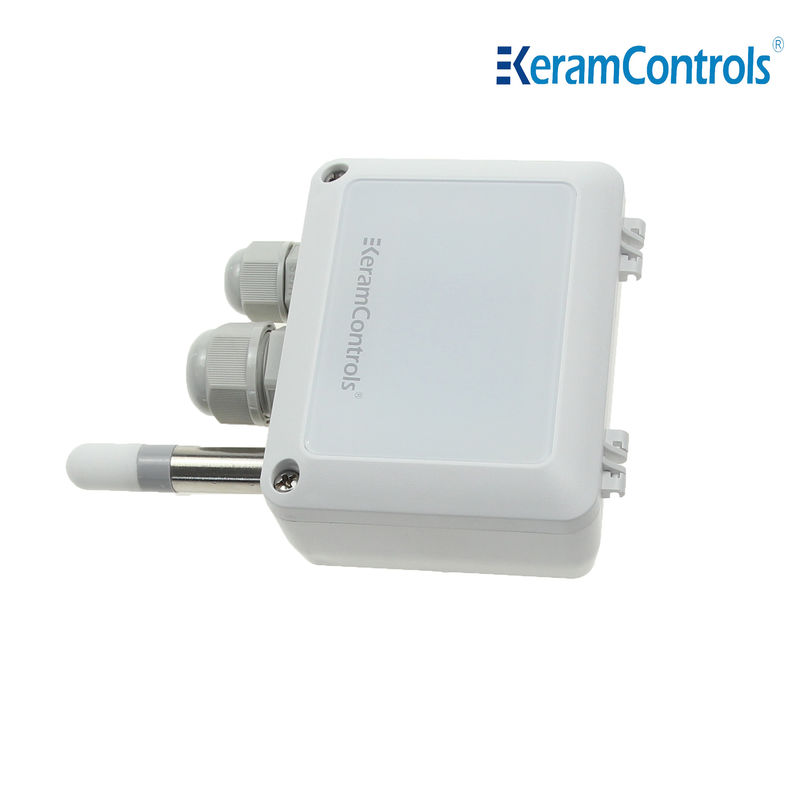

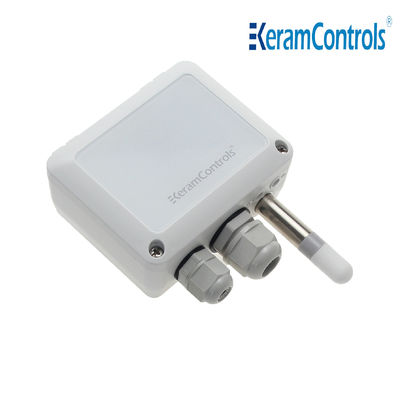

KTH510 Humidity and temperature Transmitter

HVAC Automation Temperature Humidity Transmitter Digital Output IP65



KTH510 temperature and humidity transmitters can be used to measure relative humidity and temperature in various HVAC applications, as well as monitor building energy management systems.

KTH510 uses a new generation of digital sensors, with a humidity accuracy of 2.5%, a temperature accuracy of 0.2°C, harsh environment testing, aging testing and accuracy calibration before shipment to make the detection data more accurate and stable.

These transmitters combine easy installation and reliable operation with a low requirement for maintenance.

There are IP65-classified transmitters for humid areas and sensors with a radiation shield for outdoor use. The series also includes temperature-only transmitters and transmitters with an optional display.


Feature



  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH510
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



HVAC Temperature Humidity Transmitter IP65 Automation 0HVAC Temperature Humidity Transmitter IP65 Automation 1


Measuring range adjustment



HVAC Temperature Humidity Transmitter IP65 Automation 2


Output setting(3 wire Model)



HVAC Temperature Humidity Transmitter IP65 Automation 3


Ordering guide



KTH500——Output——Installation——Filter



Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



HVAC Temperature Humidity Transmitter IP65 Automation 4

HVAC Temperature Humidity Transmitter IP65 Automation 5



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
