Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65

Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65
Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65
Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65 Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65 Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65 Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65 Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65

Large Image :  Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KTH500
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD45-60/piece EXW factory
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs per month

Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65

Description
Name: Temperature Humidity Transmitter Protection: IP65
Customized: OEM Certification: CE
Accuracy (Humidity): 2.0% (0-90% @ 25℃) Accuracy (Temperature): 0.1 ℃ @ 20~60℃
Operation Termperature: -35~+80℃ Power Supply: 16-30Vac/dc
Output: 0-10V 0-5V
High Light:

Wall Mounted Temp Humidity Pressure Sensor

,

10V Temp Humidity Pressure Sensor

,

IP65 temperature and humidity

Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65



Description

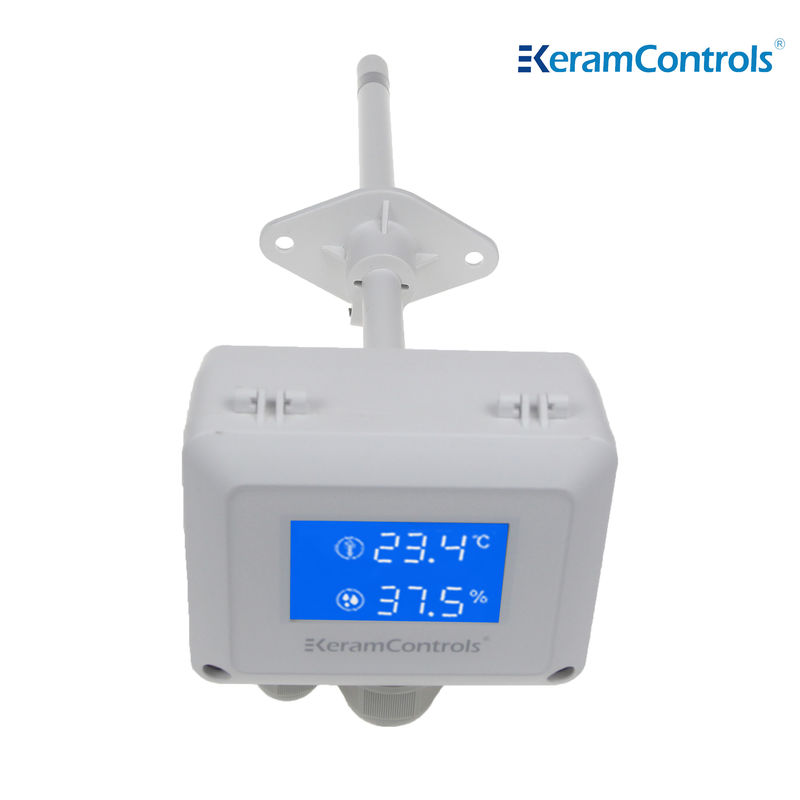

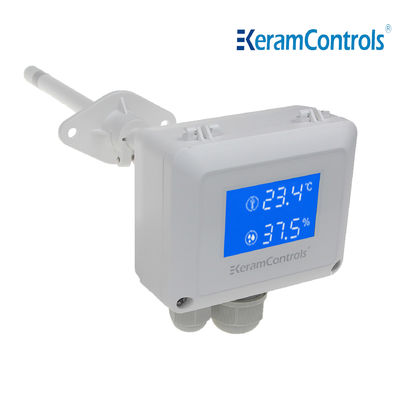

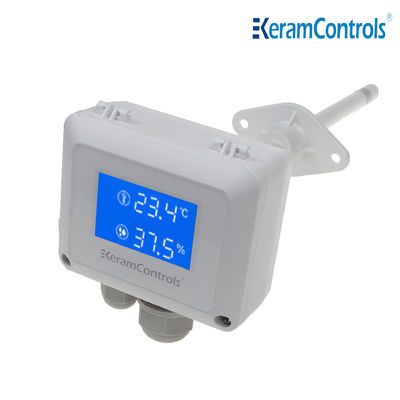

KTH500 Humidity and temperature Transmitter

Wall Mounted Temperature Humidity Transmitter 0-10V Output IP65



KTH500 temperature and humidity transmitters can be used to measure relative humidity and temperature in various HVAC applications, as well as monitor building energy management systems.

This series of products includes duct-mounted transmitters

There are IP65-classified transmitters for humid areas and sensors with a radiation shield for outdoor use.


Feature



  • LCD display

Large size backlight display

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH500
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Display Backlight LCD
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65 0Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65 1


Measuring range adjustment



Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65 2


Output setting(3 wire Model)



Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65 3


Ordering guide



KTH500——Output——Installation——Filter



Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65 4

Wall Mounted Temp Humidity Pressure Sensor 0-10V IP65 5



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
