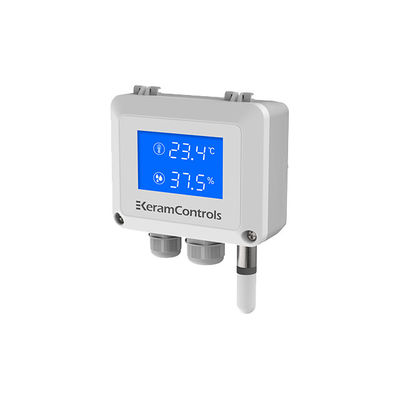

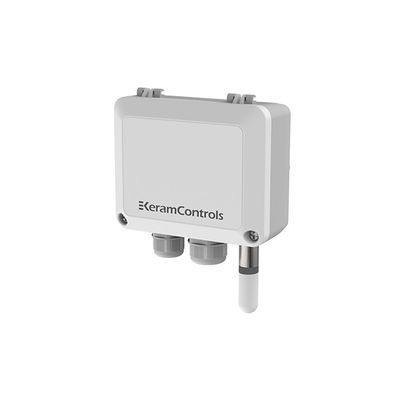

RS485 Temp Humidity Pressure Sensor
| Name: | Temperature Humidity Transmitter | Customized: | OEM |
|---|---|---|---|
| Certification: | CE | Accuracy (Humidity): | 2.5% （0-90% @ 25℃） |
| Accuracy (Temperature): | 0.2 ℃ @ 20~60℃ | Operation Termperature: | -35~+80℃ |
| Output: | RS485 | Power Supply: | 16-30Vac/dc |
| Material: | GF+PC | Protection: | IP65 |
| Highlight |
RS485 Temp Humidity Pressure Sensor,IP65 Temp Humidity Pressure Sensor,30V temperature and humidity |
||
KTH510 Humidity and temperature Transmitter

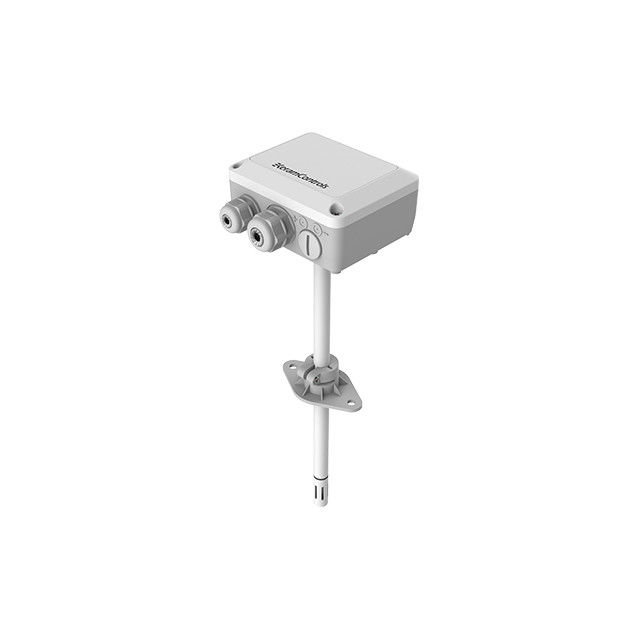

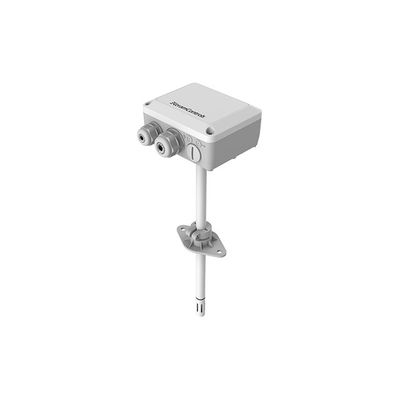

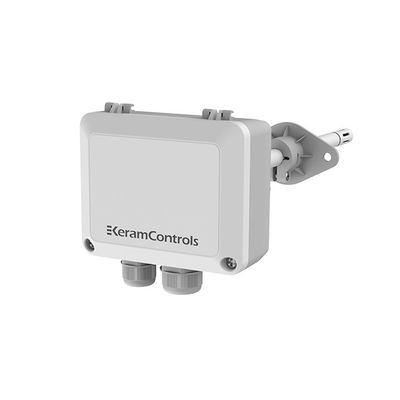

Air Duct Mounted Temperature Humidity Transmitter Digital Output
KTH510 temperature and humidity transmitters can be used to measure relative humidity and temperature in various HVAC applications, as well as monitor building energy management systems.
KTH510 uses a new generation of digital sensors, with a humidity accuracy of 2.5%, a temperature accuracy of 0.2°C, harsh environment testing, aging testing and accuracy calibration before shipment to make the detection data more accurate and stable.
This series of products includes duct-mounted transmitters
There are IP65-classified transmitters for humid areas and sensors with a radiation shield for outdoor use.
Features
Shell connected by hinge
Input voltage:16~30Vac/Vdc
0-10, 0-5V, 4-20mA, RS485 signal output
M20 & M6 double cable gland
IP65 house protection
Applications
- HVAC& Building automation
- Clean room
- Greenhouse
- Public transport hub
- Air handling unit
- Cold storage and refrigeration
Specifictions
| Model | KTH510 |
| Power supply | 16-30VDC/AC |
| Output | 4-20mA / 0-5V / 0-10V / RS485 |
| Operating temp | -35 to 80℃ |
| Storage temp | -40 to 80℃ |
| Operating humidity | 0 to 100% |
| Temperature range setting | DIP switch |
| Display | No |
| Max wind/ flow speed | 30m/s |
| Electomagnetic compliance | EN61326-1, Industrial Environment |
| Housing | PC+GF (UL-V0) |
| Protection | IP65 / NEMA 4 |
| Cable gland | M16*1.5 and M20*1.5 |
Measurement Performance
| Temperature | |
| Measurement range | -35 to 80℃ |
| Accuracy | 0.2℃@(20-60℃) |
| Temperature dependence | ±0.01℃/℃ |
| Relative Humidity | |
| Measurement range | 0 to 100%RH |
| Accuracy | 2.5%( 0-90% @25°C ) |
| 3% ( 90-100% @25°C ) | |
| Stability in Typical HVAC Applications | ±1 %RH/year |
Dimensions
Ordering Guide
