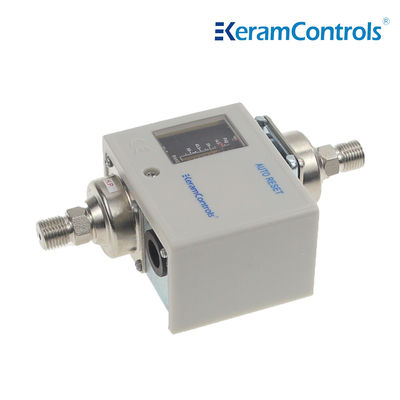

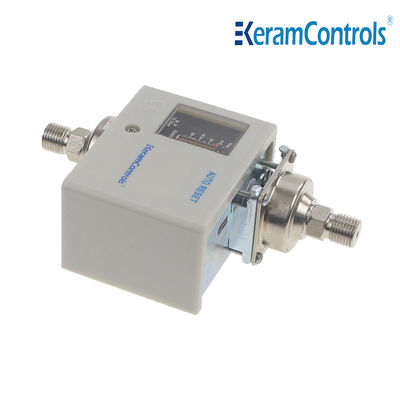

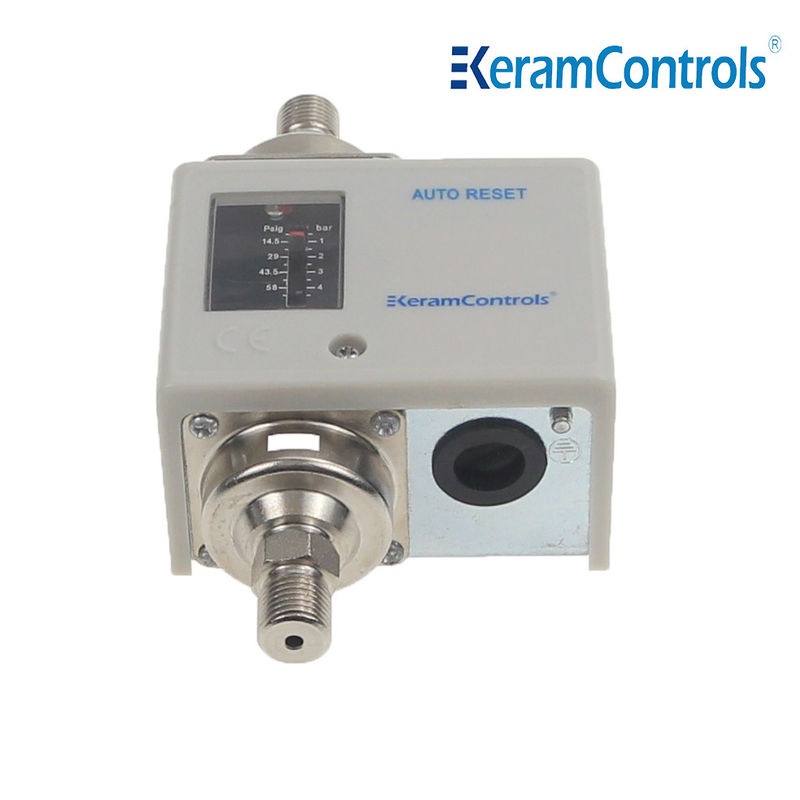

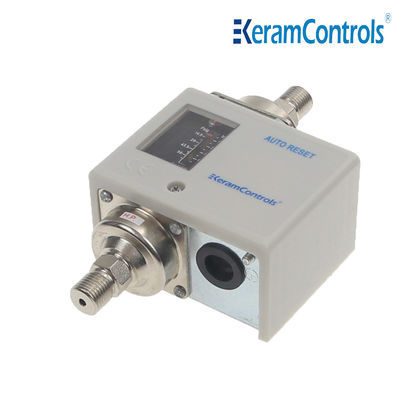

250V CE 15A Differential Pressure Switch For Air

250V CE 15A Differential Pressure Switch For Air
250V CE 15A Differential Pressure Switch For Air
250V CE 15A Differential Pressure Switch For Air 250V CE 15A Differential Pressure Switch For Air 250V CE 15A Differential Pressure Switch For Air 250V CE 15A Differential Pressure Switch For Air 250V CE 15A Differential Pressure Switch For Air

Large Image :  250V CE 15A Differential Pressure Switch For Air

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: QYD
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: USD15-25/piece EXW factory
Packaging Details: Carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs per month

250V CE 15A Differential Pressure Switch For Air

Description
Name: Differential Pressure Switches Certification: CE
Warranty: 1 Year Customized Support: OEM
Max. Current: 15A Max. Voltage: 250V
Max. Working Pressure: 30 Bar Temperature: -40 ~+85℃
High Light:

15A Differential Pressure Switch For Air

,

CE Differential Pressure Switch For Air

,

250V differential pressure switch

250V CE 15A Differential Pressure Switch For Air



Description



QYD Series DPS

Adjustable Differential Pressure Switches for Air Conditioning



QYD series differential pressure switch is designed to prove flow through pumps.

It can be used in fluorinated refrigerant, also in air and liquid (-20 to 120°C).

The renovated SPDT micro-switch ensure the reliable switch function and flexible mounting bracket suits various kinds of application.


Model Specification



Model Differential(Bar) Factory Setting Max Working
pressure
Min Max
QYD2C 0.5 2 0.5 12
QYD4C 0.5 3.5 1 12
QYD4CH 0.5 3.5 1 30
QYD6CH 1 6 6 30
QYD4C/B 0.3 4 0.3 17

Dimensions(mm)



250V CE 15A Differential Pressure Switch For Air 0


Electric Rating



Rated Amps(A)

Rated Voltage(V)

125V
A.C
250V
A.C
Non-Inductive Current 20A 10A
Inductive
Current
Full Load 15A 8A
Locked Roter 72A

Contact Function



250V CE 15A Differential Pressure Switch For Air 1



1 Common Terminal
2 Close on Pressure Increase
3 Close on Pressure Decrease

l Operating direction on press Increase at High Press. Side


Connection & Installation



250V CE 15A Differential Pressure Switch For Air 2


Mounting Plate

250V CE 15A Differential Pressure Switch For Air 3



Operating Instruction



1. The new outer cover,two fingers pinch both sides of the plastic lid,open the outer cover can be pumped out;

2. To be installed in the pipe,must use two wrenches and twist tight;

3. Do not install the controller over electric rating of the device.





250V CE 15A Differential Pressure Switch For Air 4



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
