5k 10k Waterproof NTC Sensor Temperature 10mm 20mm

5k 10k Waterproof  NTC Sensor Temperature 10mm 20mm
5k 10k Waterproof  NTC Sensor Temperature 10mm 20mm
5k 10k Waterproof  NTC Sensor Temperature 10mm 20mm 5k 10k Waterproof  NTC Sensor Temperature 10mm 20mm 5k 10k Waterproof  NTC Sensor Temperature 10mm 20mm 5k 10k Waterproof  NTC Sensor Temperature 10mm 20mm 5k 10k Waterproof  NTC Sensor Temperature 10mm 20mm

Large Image :  5k 10k Waterproof NTC Sensor Temperature 10mm 20mm

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KTC111
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: USD2-7/piece EXW factory
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 pcs per week

5k 10k Waterproof NTC Sensor Temperature 10mm 20mm

Description
Name: Waterproof Temperature Sensors Warranty: 1 Year
Measuring Range: -30 To 100℃ Cable Length: 0.5 M, 5 M Or Customized
Probe Material: Stainless 316 Protection: IP65
High Light:

10k ntc sensor temperature

,

KTC111 5k ntc sensor temperature

,

KTC111 20mm pt100 ntc

5k 10k Waterproof NTC Sensor Temperature 10mm 20mm



Description

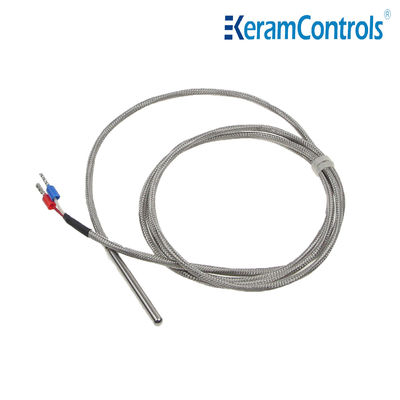

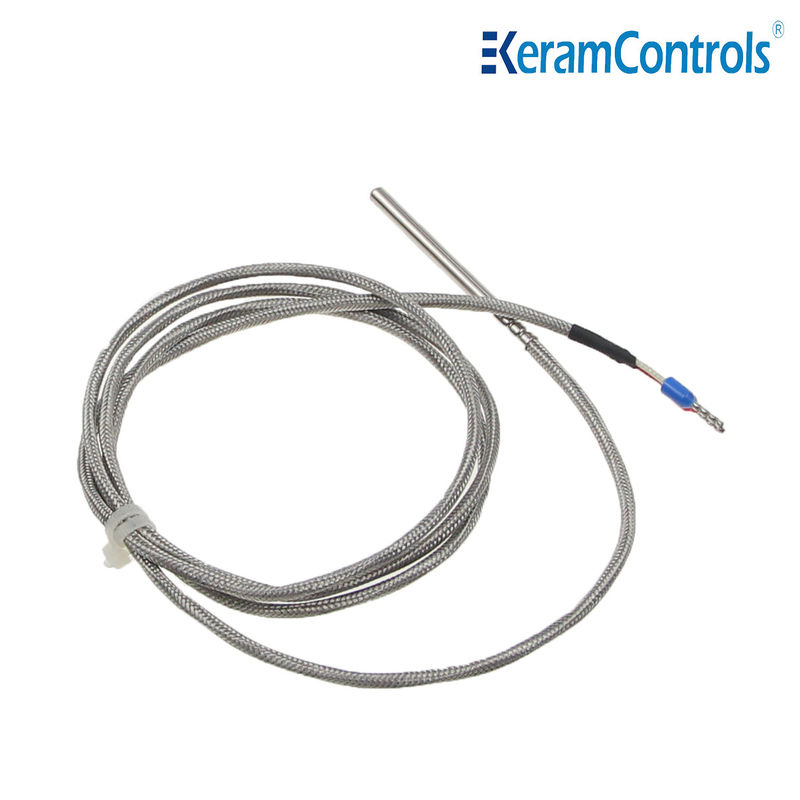

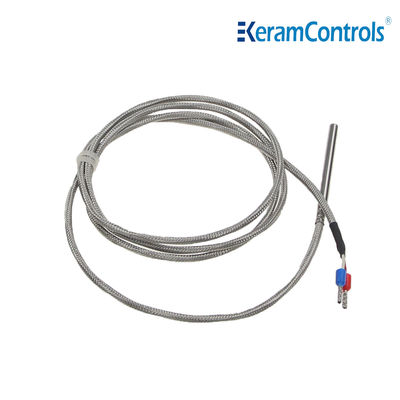

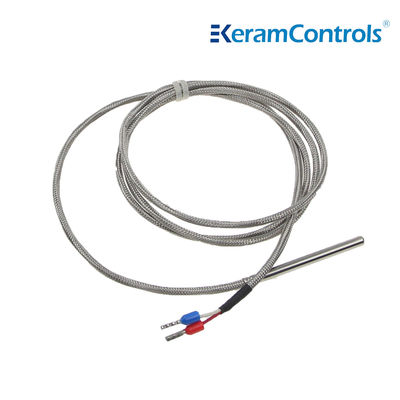

KTC111 Cable Temperature Sensor

5k 10k NTC PT100 PT1000 Waterproof Temperature Sensors 2 Wire Output



KTC111 series temperature sensor designed for the high temperature measurement in the field of HVAC and various industrial process control.

The IP65 cable interface can effectively guarantee the waterproof performance of the sensor.

The KTC111 series uses passive resistance signal output, with a variety of temperature-sensitive components, such as NTC10K, Pt100, Pt1000, etc.


Specifications



Model KTC111
Temperature sensor Element Standard resistance
NTC10K B3435 R25:10KΩ±1%
Pt100 R0: 100Q
Pt1000 R0:1000Q
Element connection 2 wire or 3 wire
Cable material Fiberglass,Silicone,PTFE
Sensor probe material 316 stainless steel
Protection class IP65/NEMA4
operating temperature Fiberglass cable 0...350℃
Silicone cable -60...180℃
PTFE cable -20...250℃
Storage temperature -30...+70℃

Dimensions





5k 10k Waterproof  NTC Sensor Temperature 10mm 20mm 0


Ordering Guide

KTC111-Element-Cable material-Cable length



Model Element Cable material Cable length
KTC111 NTC10K B3435 (G) Fiberglass cable (J) 1m (A)
Pt100 (H) Silicone cable (K) 2m (B)
Pt1000 (l) PTFE cable (L) 3m (C)
        4m (D)
        5m (E)
        10m (F)



5k 10k Waterproof  NTC Sensor Temperature 10mm 20mm 1



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
