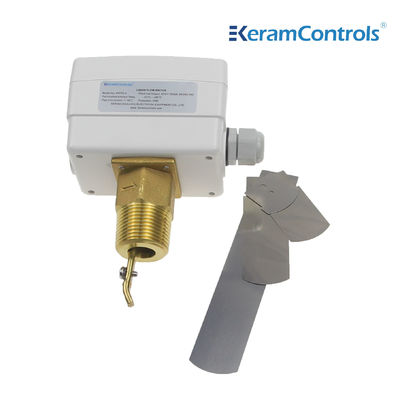

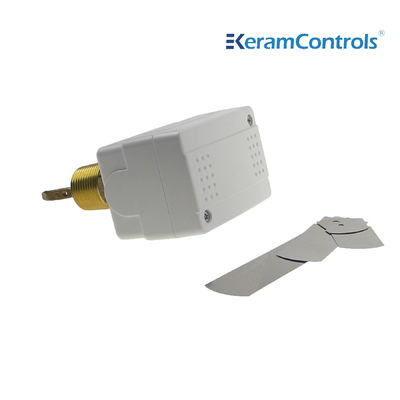

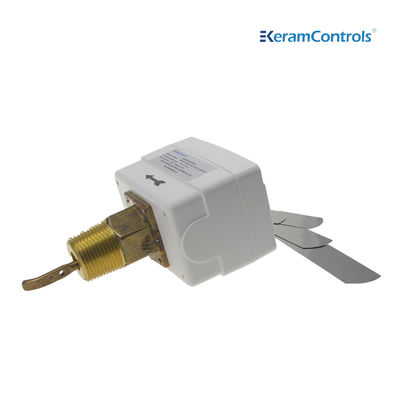

Replaceable honeywell flow switch wfs 6000

Replaceable honeywell flow switch wfs 6000
Replaceable honeywell flow switch wfs 6000
Replaceable honeywell flow switch wfs 6000 Replaceable honeywell flow switch wfs 6000 Replaceable honeywell flow switch wfs 6000 Replaceable honeywell flow switch wfs 6000 Replaceable honeywell flow switch wfs 6000

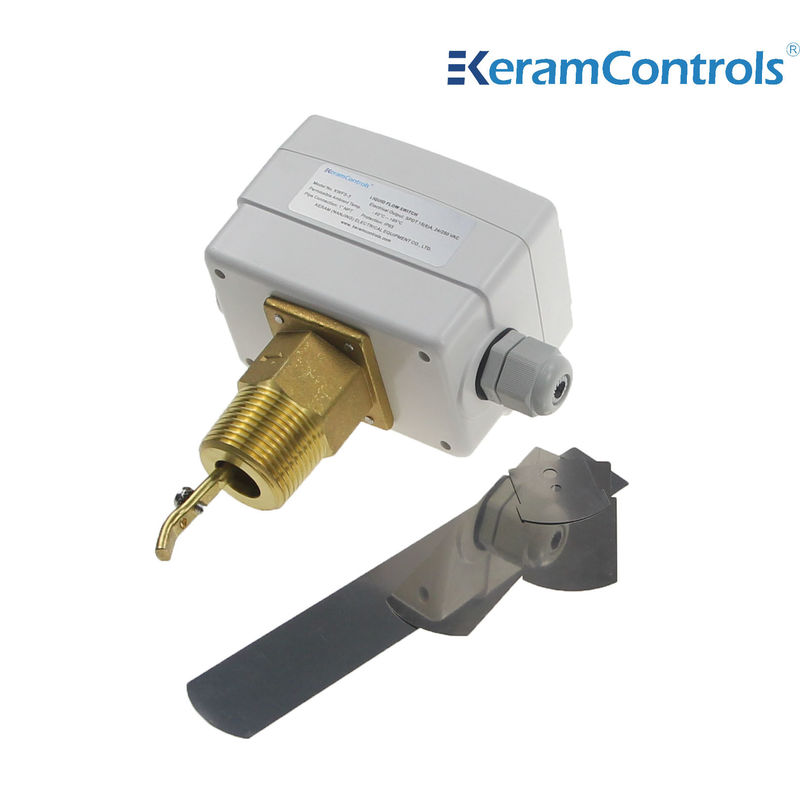

Large Image :  Replaceable honeywell flow switch wfs 6000

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KWFS
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: USD3-10/piece EXW factory
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs per month

Replaceable honeywell flow switch wfs 6000

Description
Type Of Operation: On/Off,single-stage,micro Switch Output: SPDT 15(8A) 24/250VAC
Warranty: 1 Year Certification: CE
Flow Rates: See Flow Rate Table Sensing Element: Paddle
Paddle Material: Stainless Steel Liquid Temperature: -20℃~120℃
High Light:

Water Heater Liquid Flow Sensors

,

KML1 Gas Furnace Heating Hot Water Liquid Flow Sensors

,

KML1 24V water flow sensor

Replaceable honeywell flow switch wfs 6000



Description



KWFS series flow switch, is a flow switch that can be used for general liquid media, there are also flow switch models suitable for corrosive liquids, through the micro switch to induce changes in flow rate to give the model of the switch, so that customers can choose according to their actual needs.


Application


Control and monitor liquid flow of boilers, pumps, etc., of heating, cooling, and air conditioning equipment.


Features


● Flow control of water and normal media
● Renovated SPDT micro switch ensures the reliable switch function
●15(8A)250VAC switch rating
● IP65, class I enclosure
● Set point adjustable
● Stainless steel paddle
●Brass material
● Max. liquid temp 120℃
● Max working pressure 13.5Ba


Specifications



Type of operation On/Off,single-stage,micro switch
Output SPDT 15(8A) 24/250VAC
Flow rates See flow rate table
Flow rate setting adjustment Internal screw
Sensing element Paddle
Liquid applications Hot, chilled, well, pool and sea water,Brine or ethylene glycol
Parts material in contact with fluid Brass
Paddle material Stainless steel
Liquid temperature -20℃~120℃
Permissible ambient temperature -40℃~85℃
Permissible ambient humidity 10…90% RH, non-condensing
Cable entry M18 Fitting
Housing Fire Resistance ABS or PC
Protection IP65
Color White
Weight 1.0Kg

Types of Model

Model Connection
KWFS-1 1/2" -14 NPT
KWFS-2 3/4" -14 NPT
KWFS-3 1" -11½ NPT

Liquid Flow Rate Table



Line Pipe Size(in.) 1 1-¼ 1-½ 2 2-¼ 3 4 4Z 5 5Z 6 6Z 8 8Z
Min.flow Flow Increase
&②Connected
4.2
(1.0)
5.8
(1.3)
7.5
(1.7)
13.7
(3.1)
17.6
(4.0)
27.5
(6.2)
64..7
(14.7)
35.2
(8.0)
12.5
(28.4)
57.01
(12.9)
90.0
(43.1)
74.0
(16.8)
374.7
(85.1)
204.7
(46.5)
Flow Decrease
&③Connected
2.5
(0.6)
3.7
(0.8)
5.0
(1.1)
13.7
(2.2)
11.9
(2.7)
19
(4.3)
50.1
(11.4)
26.9
(6.1)
101.1
(22.9)
41.0
(9.3)
158.0
(35.9)
54.0
(12.3)
319.7
(72.6)
170.0
(3806)
Max.flow Flow Increase
&②Connected
9.2
(2.1)
13.3
(3.0)
17.6
(4.0)
26.9
(6.1)
30.8
(7.0)
50.2
(11.4)
127.6
(29.0)
81.0
(18.4)
245.0
(55.6)
118.0
(18.4)
374.7
(85.1)
144.0
(32.7)
759.5
(172.5)
415.0
(94.2)
Flow Decrease
&③Connected
8.1
(1.9)
12.5
(2.8)
16.3
(3.7)
25.1
(5.7)
28.6
(6.5)
471
(10.7)
122.0
(27.7)
76.2
(17.3)
234.7
(53.3)
111.0
(25.2)
359.7
(81.7)
134.7
(30.6)
729.6
(165.7)
400.6
(90.8)


Note:
①For flow rates with suffix "Z", the 6 inch paddle must be installed.
②The flow rate unit of the above table is GPM (m /h)




Electrical Wiring


Replaceable honeywell flow switch wfs 6000 0



Installation


The flow switch can be installed in every position far from elbows or throttlings, with arrow on flow direction. If pipe is vertical, recalibrate range to balance paddle weight. If the device is downwards mounted, take care to slags and apply it in a straight pipe that is far from filters,valves,etc.,with length at least 5 times the diameter of pipe upstream and downstream the unit.


Note:
The flow switch is factory calibrated at its minimum sensitivity.To increase the set valve,turn the adjustment screw clockwise.The cut-out valve must be ≥the minimum flow necessary to guarantee the protection of the plant.




Dimensions (mm)
Replaceable honeywell flow switch wfs 6000 1
Paddles

Replaceable honeywell flow switch wfs 6000 2



Install Paddle
Pipe NO.
1" 1
11/4" 1
11/2" 1
2" 1,2
21/2" 1,2
3" 1,2,3
4" 1,2,3
4"Z 1,2,3,4
5" 1,2,3
5"Z 1,2,3,4
6" 1,2,3
6"Z 1,2,3,4
8" 1,2,3
8"Z 1,2,3,4



Replaceable honeywell flow switch wfs 6000 3



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
