Product Details:
|
| Name: | Temperature Transmitter | Protection: | IP65 |
|---|---|---|---|
| Customized: | OEM | Certification: | CE |
| Accuracy: | ±(0.1+0.0017t) | Operation Termperature: | -70~+500℃ |
| Output: | K Value | ||
| High Light: | Oil Water Sensor Transmitters,PT1000 Sensor Transmitters,10V water pressure transmitter |
||

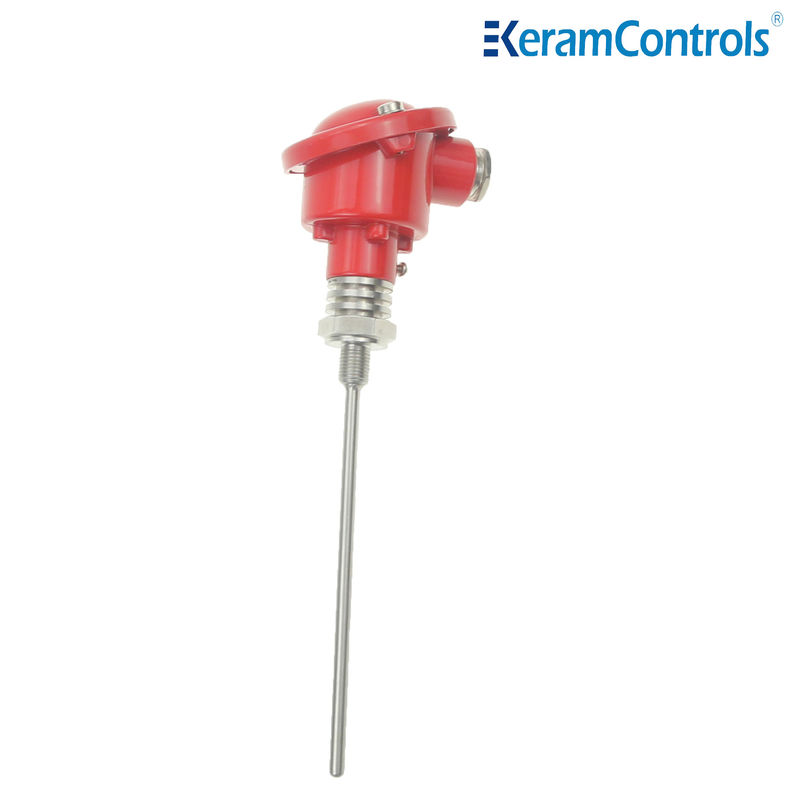

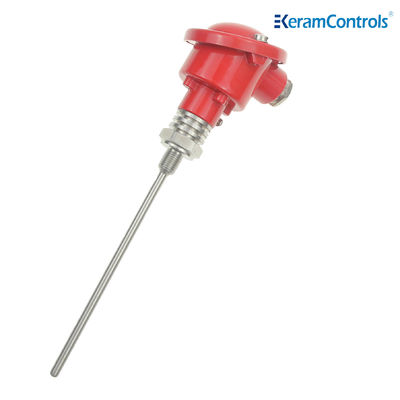

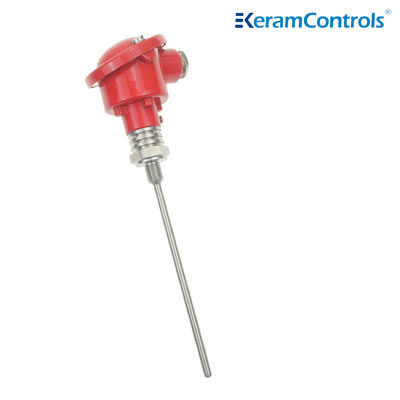

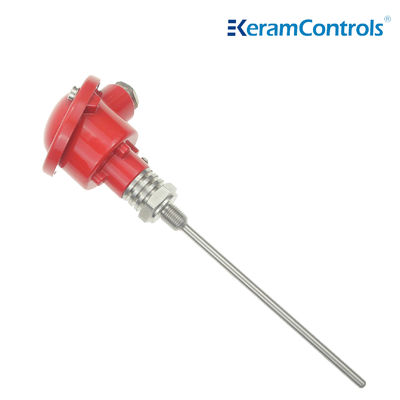

KTP110 temperature Transmitter.
Temperature Sensor Transmitters For Water or oil 0-10V Output IP65.
For temperature measurement in gases, in pipes and tanks at low pressure and low flow.
To be mounted with compression fitting either direct into the process.
HVAC system
Green houses
Refrigeration system measuring
Indoor pools
| Model | KTP110 |
| Temperature sensor | Element Standard resistance |
| NTC10K B3435 R25:10KΩ±1% | |
| Pt100 R0:100Ω | |
| Pt1000 R0:1000Ω | |
| Element connection | 2-wire |
| 4-wire optional | |
| Dimensions | See dimensional drawing |
| Connection head | Aluminium |
| Ambient temperature -20 to +100°C | |
| Protective tube | SS316 |
| φ: 6mm | |
| Inserted length (EL) 50mm-400mm (see table) | |
| Protection class | IP65 |
| Operating temperature | -35 to +150°C |
| Storage temperature | -30 to +70°C |
| Humidity | <95% RH, non-precipitating air |
| F-06 | Mounting flange |
| Galvanized steel | |
| φ: 32mm | |
| Tmax: 700°C | |
| A-B/xx | Immersion sleeve, brass, nickel-plated |
| φ: 8mm | |
| Tmax: 150°C | |
| Pmax: 10 bar | |
| A-Sxx | Immersion sleeve, stainless steel |
| φ: 8mm | |
| Tmax: 600°C | |
| Pmax: 40 bar |
KTP110-E-I
| Model | Element | Inserted length(EL) | ||
| KTP110 | NTC10K | (E) | 50mm | (I) |
| Pt100 | (F) | 100mm | (K) | |
| Pt1000 | (G) | 150mm | (L) | |
| 200mm | (M) | |||
| 250mm | (N) | |||
| 300mm | (O) | |||
| 400mm | (P) | |||
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
