Product Details:
|
| Name: | Air Differential Pressure Switches | Certification: | CE |
|---|---|---|---|
| Warranty: | 1 Year | Customized Support: | OEM |
| Max. Current: | 1.5A | Max. Voltage: | 250V |
| Max. Working Pressure: | 10 KPa | Application: | Air Compressor |
| Temperature: | -40 ~+85℃ | Connection: | 6.4mm |
| Highlight: | QAD 500Pa Differential Pressure Switches,QAD 50pa Differential Pressure Switches,QAD HVAC air differential pressure switch |
||

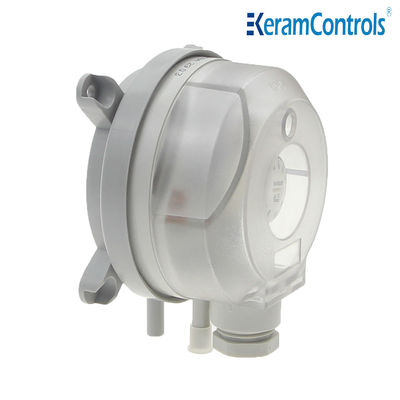

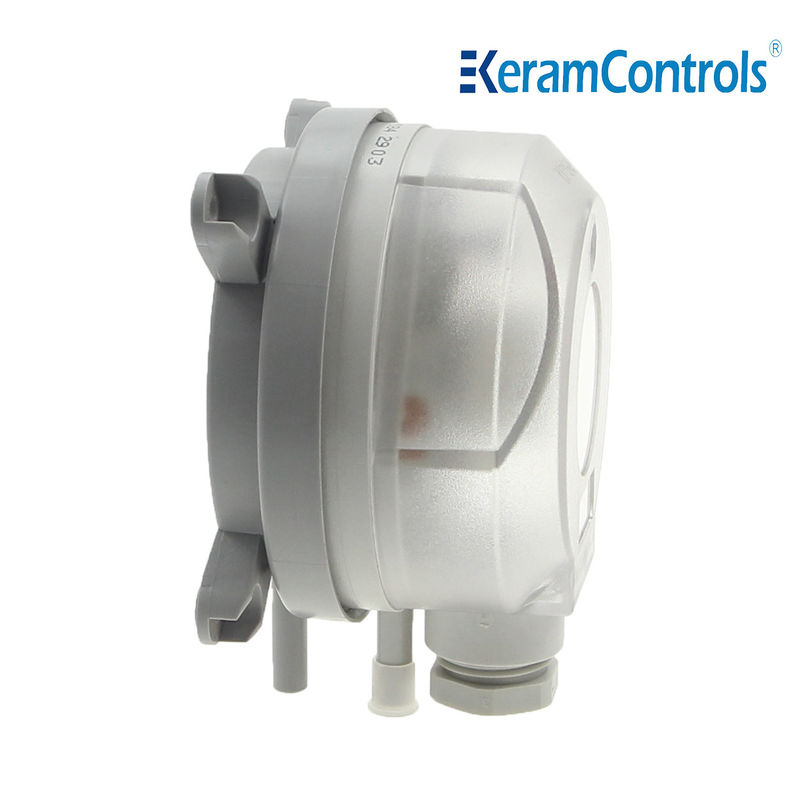

QAD Series DPS.
The QAD series air differential pressure switch is used to sense tiny pressure change and widely used to control the flow of aerator, to monitor fan and air conditioner. It is also suitable for over heating protection and frost protection in industrial cooling system.

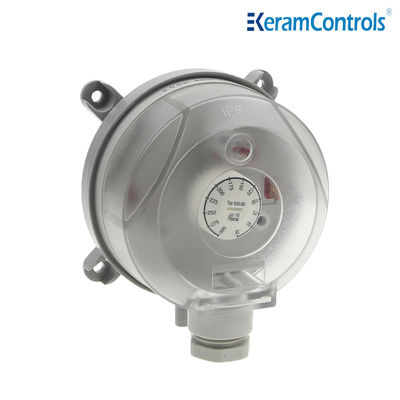

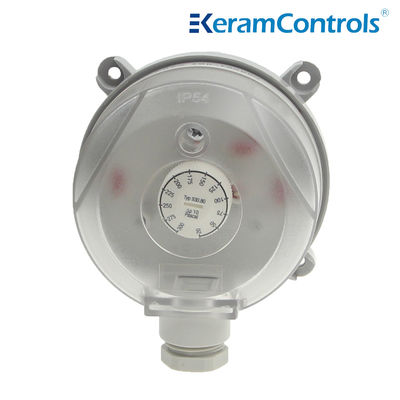

Due to its outstanding design, the set point can be adjusted visually.
| Model | QAD |
| Media | Air,non-combustible and non-aggressive gasses |
| Max Operating Pressure | 10kPa |
| Mounting Position | Diaphragm in any vertical plane |
| Degree of protection | IP54(with cover) |
| Operating Temperature | -40℃to 85℃ |
| Contact Arrangement | SPDT |
| Electrical Rating | Resistance: Initial: < 50 milliohms; |
| Current1.5A resistive(0.4A inductive) 250V | |
| Electric Connection | 6.3x0.8 blade 46244 or screw terminals |
| Material | Housing:ABS |
| Duct connectors: ABS | |
| Membrane: Silicone | |
| Cable sleeve:PVC | |
| Weight | 0.15kg(0.35kg with flexible pipe) |
| Connection | φ6.0mm for tube connection |
| Approval | UL,CE,RoHS |
QAD series air pressure controls is factory-calibrated for vertical position. If installed horizontally, this will affect the switching point as following:
• with cover facing upwards, switching point is 15Pa higher than scale;
• with cover facing downwards, switching point is 15Pa lower than scale.
Note: Do not install upside down with trip pressures of less than 50pa!
| Model | Pressure Range | Differential | Tolerance |
| QAD-1 | 20~200Pa | 10Pa | ±15% |
| QAD-2 | 30~300Pa | 10Pa | ±15% |
| QAD-3 | 40~400Pa | 20Pa | ±15% |
| QAD-4 | 50~500Pa | 20Pa | ±15% |
| QAD-5 | 200~1000Pa | 100Pa | ±15% |
| QAD-6 | 500~2500Pa | 150Pa | ±15% |
| QAD-7 | 1000~5000Pa | 250Pa | ±15% |
