Renovated SPDT Adjustable Air Pressure Switch CE Certificated
| Certificate: | CE | Pressure Interface: | Brass |
|---|---|---|---|
| Micro-switch: | SPDT | Housing Protection: | IP44 |
| Highlight |
SPDT Adjustable Air Pressure Switch,CE Adjustable Air Pressure Switch,Renovated SPDT Adjustable Pressure Switch |
||

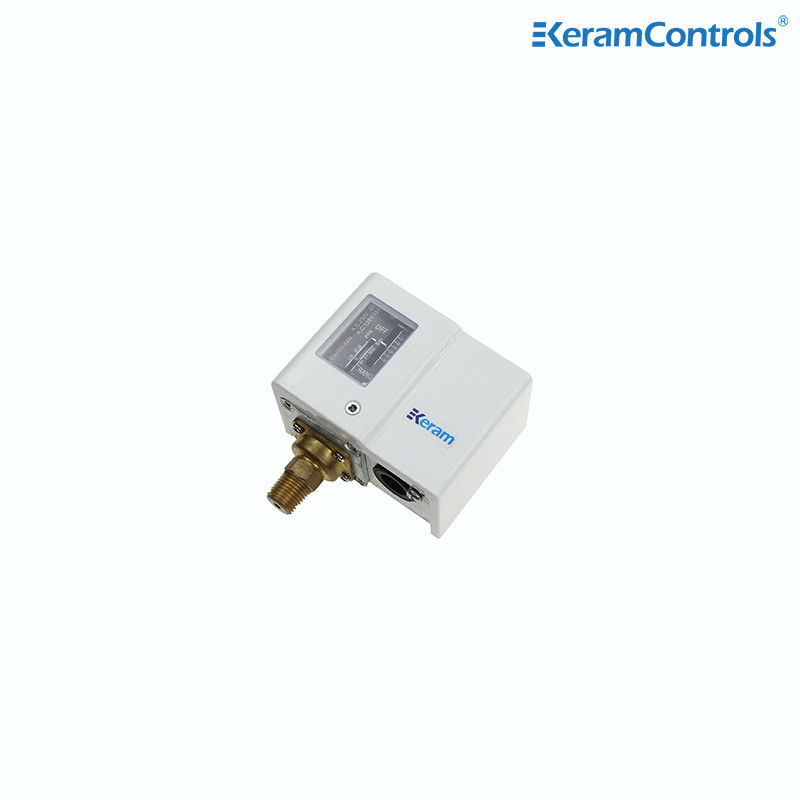

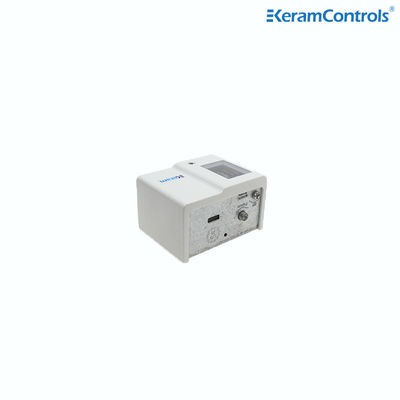

Adjustable air pressure switch
Description
The pressure switch adopts the pressure sensor and transmission circuit with high precision and high stability, and then uses the special CPU modular signal processing technology to realize the detection, display, alarm and control signal output of the medium pressure signal. Pressure switch can be widely used in the fields of petroleum, chemical, metallurgy, electric power, water supply and other fields to measure and control the gauge pressure and absolute pressure of various gases and liquids. It is an ideal intelligent measurement and control instrument in industrial field.
Feature
- Q series single pressure controls can be not only used in fluorinated refrigerant, but also in the air and liquid(allowed liquid temp. -20 to 120°C)
- Adjustable range and differential settings
- Renovated SPDT micro-switch ensures the reliable switch function
- Flexible mounting bracket suits various kids of application
- Upper lid is optional (IP44)
- Various connections are available on request
- Automatic and manual reset version
- The material of bellows is copper and pressure interface is brass
- Several models available in drip-proof enclosure for marine applications or in explosion-proof enclosure for special applications
- CE approval
Technical Data
| Model | Range(bar) | Differential(bar) | Factory setting(bar) | Max bellows pressure | |||
| Min | Max | Min | Max | OFF | ON | ||
| Q3 | -0.5 | 3 | 0.35 | 1.5 | 2 | 1 | 16.5 |
| Q6 | -0.5 | 6 | 0.6 | 4 | 3 | 2 | 16.5 |
| Q6M | -0.5 | 6 | ≤1 | 3 | Manual reset | 16.5 | |
| Q10 | 1 | 10 | 1 | 3 | 6 | 5 | 16.5 |
| Q16 | 5 | 16 | 1 | 4 | 10 | 8 | 33 |
| Q20 | 5 | 20 | 2 | 5 | 16 | 3 | 33 |
| Q30D | 5 | 30 | 3 | 10 | 20 | 15 | 33 |
| Q30 | 6 | 30 | 3-5(fixed) | 20 | 15-17 | 33 | |
| Q30M | 6 | 30 | ≤4 | 20 | Manual reset | 33 | |
Note:
Calibration unit on scale plate with “bar” & “psig”, could be revised into “Mpa”& “kgf/cm2” if required by customers. Connections could have selections as British Flare (E), solder (C) and capillary (S).
Dimensions (mm)
Electric Rating
|
125V AC |
250V AC |
24V DC |
||
| Non-Inductive Current | 20A | 10A | 10A | ||
| Inductive Current | Full Load Current | 15A | 8A | 8A | |
| Locked Roter | 72A | 64A | |||
Electric wiring
IP44 SPDT Brass Adjustable Pressure Switch For Water Pump
16.5bar SPDT Adjustable Pressure Switches -20~120℃
-0.5~3bar SPDT Brass Adjustable Pressure Switches
