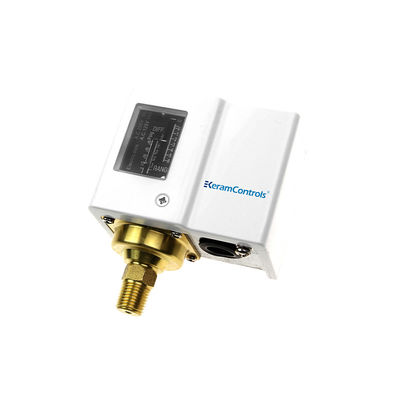

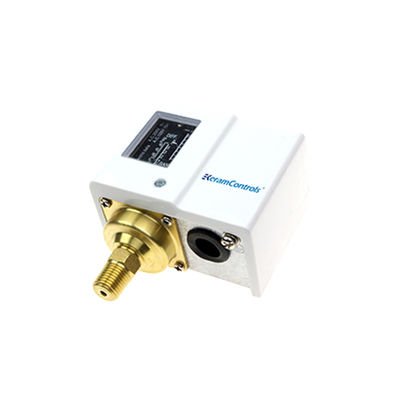

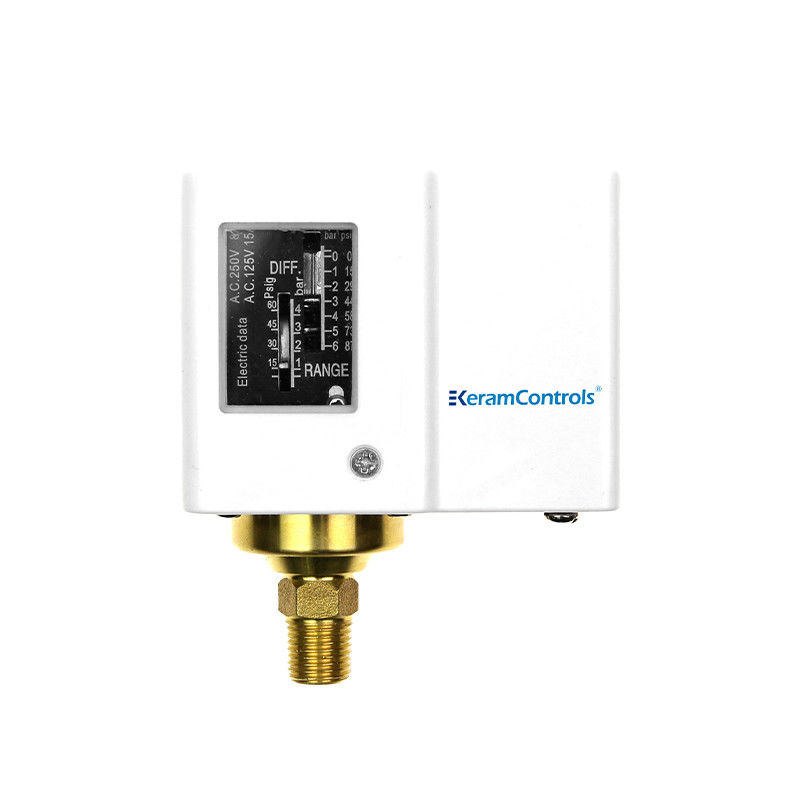

72A Adjustable Air Pressure Switch
Place of Origin:
China
Brand Name:
Keram Controls
Certification:
CE
Model Number:
KPS seires
Minimum Order Quantity:
40 pcs
Price:
USD6-10/piece EXW factory
| Name: | Adjustable Pressure Switches | Media: | Air Or Liquid |
|---|---|---|---|
| Max Current: | 72A | Max Voltage: | 250V |
| Max Working Pressure: | 33 Bar | Permissible Temperature: | -20 ~ 120℃ |
| Installation: | Vertical Installation | Delivery: | 7-10 Working Days |
| Contact Arrangement: | SPDT | Electrical Rating: | 125VAC/20A, 250VAC/10A, 24VC/64A |
| Protection: | IP44 | Color: | White |
| Highlight |
72A adjustable air pressure switch,250V adjustable air pressure switch,33 bar adjustable pressure switches |
||
Product Description

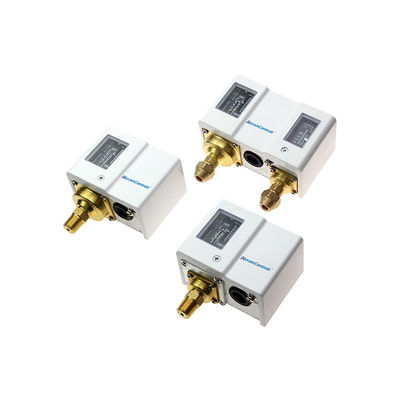

KPS Series Pressure Switch
Keram Controls Adjustabe Pressure Switches Sensor For Pressure Monitoring
KPS series adjustable pressure switches, suitable for the monitoring of flow failure and proving in pumps, chillers, valves etc. Units have an adjustable setpoint and differential. It can be not only used in fluorinated refrigerant, but also in the air and liquid (allowed liquid temp. -20 to 120°C)
Features
- Adjustable range and differential settings.
- Renovated SPDT micro-switch ensures the reliable switch function.
- Flexible mounting bracket suits various kids of application.
- Upper lid is optional (IP44)
- Various connections are available on request.

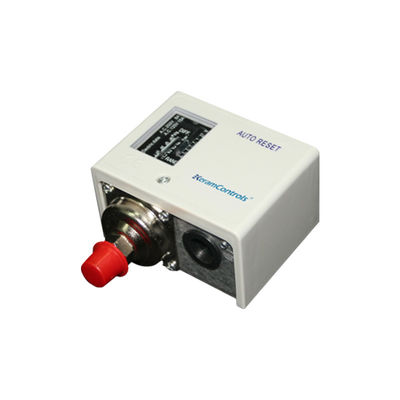

- Automatic and manual reset version
- The material of bellows is copper and pressure interface is brass.
- Several models available in drip-proof enclosure for marine applications or in explosion-proof enclosure for special applications
- CE approval
Specifictions
|
Model |
Range(bar) | Differential (bar) | Factory Setting(bar) | Max. Bellows Pressure (bar) | |||
| Min. | Max. | Min. | Max. | OFF | ON | ||
| KPS3 | -0.5 | 3 | 0.35 | 1.5 | 2 | 1 | 16.5 |
| KPS6 | -0.5 | 6 | 0.6 | 4 | 3 | 2 | 16.5 |
| KPS6M | -0.5 | 6 | ≤1 | 3 | Manual Reset | 16.5 | |
| KPS10 | 1 | 10 | 1 | 3 | 6 | 5 | 16.5 |
| KPS16 | 5 | 16 | 1 | 4 | 10 | 8 | 33 |
| KPS20 | 5 | 20 | 2 | 5 | 16 | 3 | 33 |
| KPS30D | 5 | 30 | 3 | 10 | 20 | 15 | 33 |
| KPS30 | 6 | 30 | 3-5(Fixed | 20 | 15-17 | 33 | |
| KPS30M | 6 | 30 | ≤4 | 20 | Manual Reset | 33 | |
Note: Calibration unit on scale plate with “bar” & “psig”, could be revised into “Mpa”& “kgf/cm2” if required by customers. Connections could have selections as British Flare (E), solder (C) and capillary (S).
Dimensions
Conection & Installation
Electric Rating
| 125V A.C | 250V A.C | 24VD.C | ||
| Non-Inductive Current | 20A | 10A | 10A | |
| Inductive Current | Full Load Current | 15A | 8A | 8A |
| Locked Roter | 72A | 64A | ||
