Industry Automation DPT Differential Pressure Transmitter 4-20mA Output
| Name: | Air Differential Pressure Transmitter | Certification: | CE |
|---|---|---|---|
| Warranty: | 1 Year | Customized Support: | OEM |
| Protection: | IP65 | Accuracy: | 1.0% FS |
| Pressure Range: | 0~100...1,000Pa...10,000Pa | Power Supply: | 16-30Vac/dc |
| Output Signal: | 4-20mA, 0-10V, 0-5V, RS485 | Operation Temperature: | -20~+80℃ |
| Meida: | Air And Neutral Gases | Material: | ABC+PC |
| Highlight |
Automation DPT Differential Pressure Transmitter,20mA Output Differential Pressure Transmitter,IP65 Industry Differential Pressure Sensor |
||

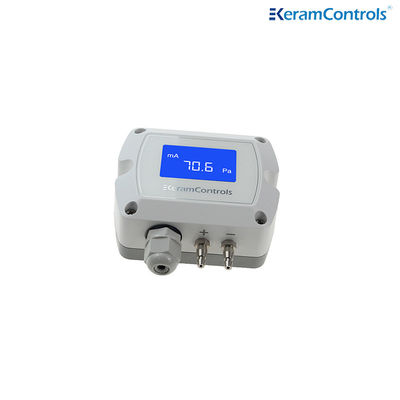

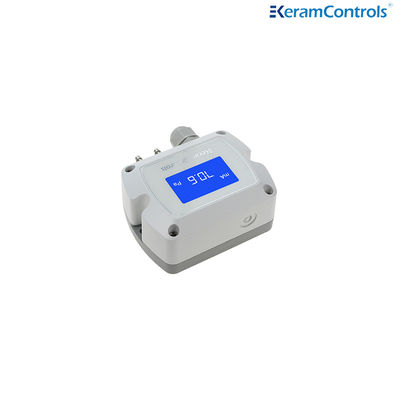

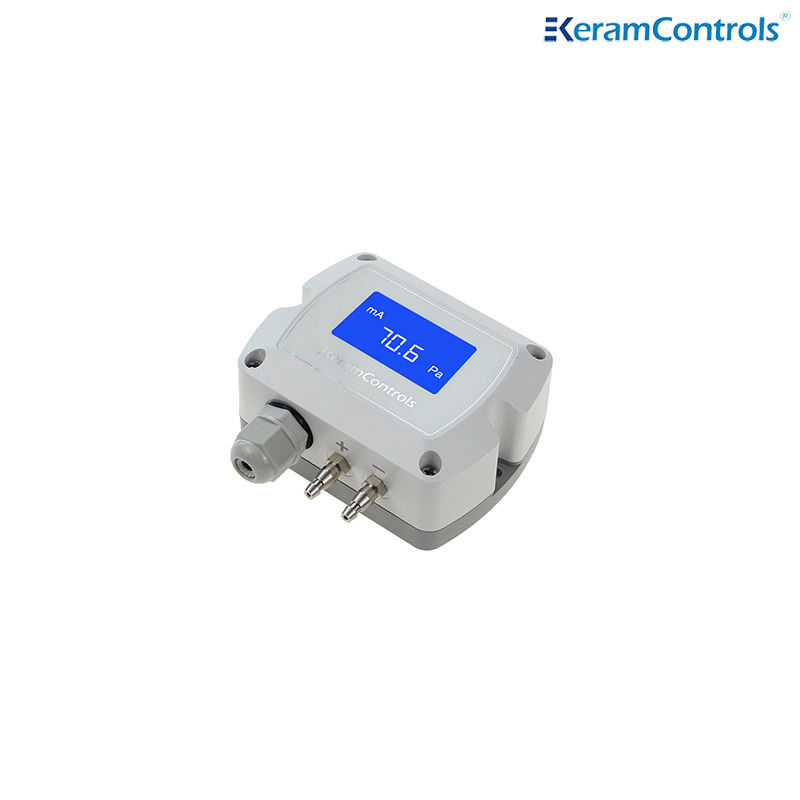

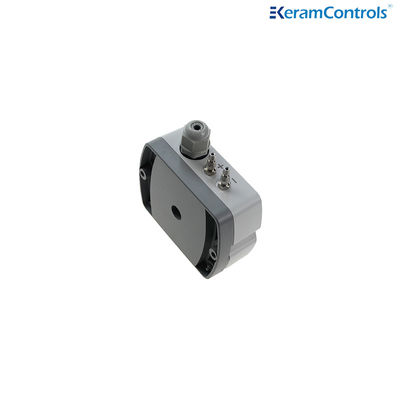

Industry Automation DPT Differential Pressure Transmitter 4-20mA Output
Description
KDP210 Series Differential pressure transmitter
The KDP210 differential pressure transmitter has high accuracy, ultra-low & adjustable range, fast response characteristics, widely used in clean electronics and pharmaceutical factories, as well as large commercial buildings, medical centers and transportation hub.
KDP210 transmitters are engineered for building automation in the HVAC/R industry. The most technologically advanced transmitters on the market measuring static and differential pressure, with field selectable units, range and output, all in a single device.
Feature
- Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
- Auto zero manual calibration
- Voltage, current, digital signal output
- Standard accuracy <±1% FS
- IP65 house protection
Application
- HVAC system
- Pharmaceutical clean rooms
- Electronic clean rooms
- Medical clean rooms
- Commercial buildings
- Public transport hub
Technical data
| Model | KDP210 |
| Measurement Units | Pa,mmH2O,inWG,mmHG,KPa,mbar |
| Accuracy | <±1% FS@-5 to +65℃ |
| Response Time | 0.5s |
| Repeat Stability | ±0.01 % at FS /Year |
| Resolution | 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG |
| Media | Air and neutral gases |
| Operating Temperature | -20…+70℃ |
| Storage Temperature | -40…+60℃ |
| Power Consumption | ＜1.5W |
| Tolerated over pressure | x15 |
| Power Supply | 16~30VAC/DC (3wire) / 18~30VDC (2wire) |
| Output Signal | 4-20mA(2wire) |
| 4-20mA(3wire) | |
| 0~5V/0~10VDC(3wire) | |
| RS-485 | |
| Customized | |
| Auto Zero | Manual calibration |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA4 |
| Display | Backlight LCD display |
| Cable Gland | M16*1.5 |
Dimension(mm)
Measuring range adjustment
Output setting(3 wire Model)
Manual Zero-point correction
Ordering guide
KDP210-Range-display-output
| Model | Ranges | Display | output | |||
| KDP210 | -100~+100Pa | (1) | LCD backlight | (D) | 4-20mA(2 wire) | (E) |
| -1000~+1000Pa | (2) | 4-20mA(3 wire) | (F) | |||
| -2000~+2000Pa | (3) | 0-5/0-10VDC (3 wire) | (G) | |||
| -10000~+10000Pa | (4) | RS-485 | (H) | |||
| Customized | ||||||
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
