Water Or Oil Digital Temperature Transmitter 0-10V Output IP65

Certification
China Keram (Nanjing)ELECTRICAL Equipment Co., Ltd. certification
China Keram (Nanjing)ELECTRICAL Equipment Co., Ltd. certification
Customer Reviews
The flow switch is very good, the appearance is also beautiful, in line with the manufacturer's description.

—— KENT

The differential pressure transmitter is in line with my use requirements, and the manufacturer is also very cooperative, helping me solve a lot of problems, and the service is very good.

—— John

I'm Online Chat Now

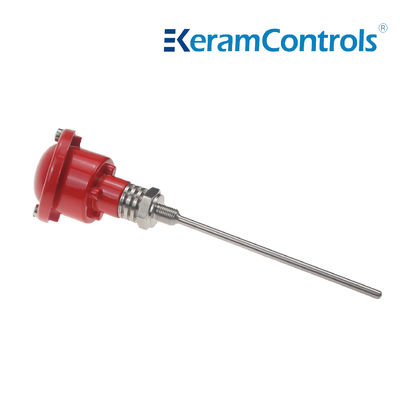

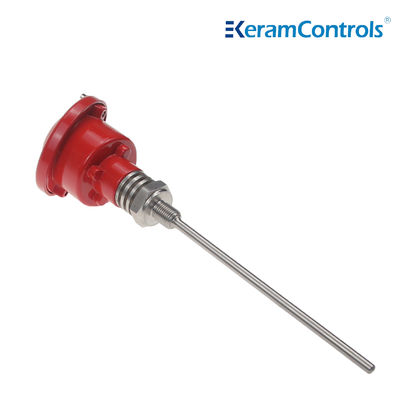

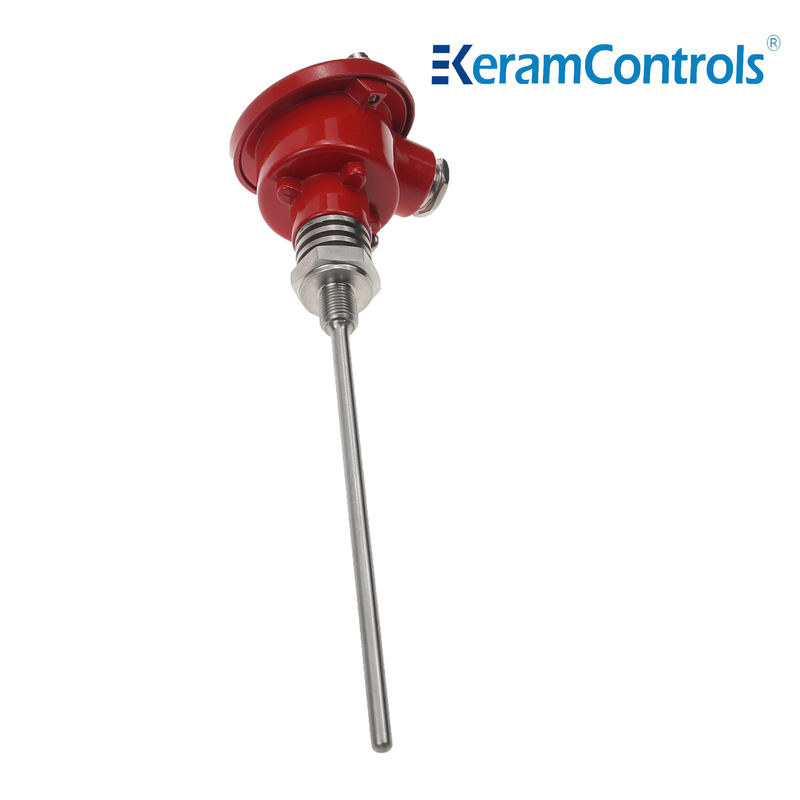

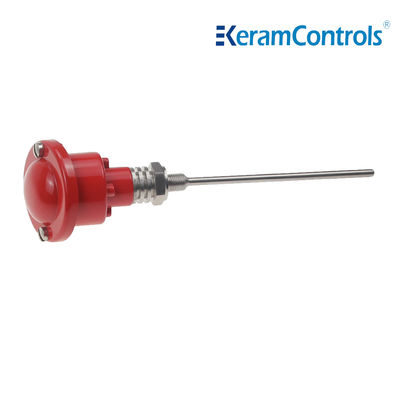

Water Or Oil Digital Temperature Transmitter 0-10V Output IP65

Water Or Oil Digital Temperature Transmitter 0-10V Output IP65
Water Or Oil Digital Temperature Transmitter 0-10V Output IP65
Water Or Oil Digital Temperature Transmitter 0-10V Output IP65 Water Or Oil Digital Temperature Transmitter 0-10V Output IP65 Water Or Oil Digital Temperature Transmitter 0-10V Output IP65 Water Or Oil Digital Temperature Transmitter 0-10V Output IP65 Water Or Oil Digital Temperature Transmitter 0-10V Output IP65

Large Image :  Water Or Oil Digital Temperature Transmitter 0-10V Output IP65

Product Details:
Place of Origin: China
Brand Name: Keram Controls
Certification: CE
Model Number: KTP110
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD25-30/piece EXW factory
Packaging Details: Carton
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs per month

Water Or Oil Digital Temperature Transmitter 0-10V Output IP65

Description
Name: Temperature Transmitter Protection: IP65
Customized: OEM Certification: CE
Accuracy: ±(0.1+0.0017t) Operation Termperature: -70~+500℃
Output: K Value
High Light:

Oil Digital Temperature Transmitter 10V

,

Water Digital Temperature Transmitter

,

IP65 Oil Temperature Transmitters

Water Or Oil Digital Temperature Transmitter 0-10V Output IP65



Description



Temperature Transmitter For Water Or Oil 0-10V Output IP65

KTP110 temperature Transmitter

For temperature measurement in gases, in pipes and tanks at low pressure and low flow.

To be mounted with compression fitting either direct into the process.


Features



  • Temperature range from -70...+500 °C
  • Different heads available, up to IP65
  • Optional head-mounted transmitter
  • Inserts sheath material stainless steel
  • Suitable for most common thermowells

Application



HVAC system

Green houses

Refrigeration system measuring

Indoor pools


Technical Data



Model KTP110
Temperature sensor Element Standard resistance
NTC10K B3435 R25:10KΩ±1%
Pt100 R0:100Ω
Pt1000 R0:1000Ω
Element connection 2-wire
4-wire optional
Dimensions See dimensional drawing
Connection head Aluminium
Ambient temperature -20 to +100°C
Protective tube SS316
φ: 6mm
Inserted length (EL) 50mm-400mm (see table)
Protection class IP65
Operating temperature -35 to +150°C
Storage temperature -30 to +70°C
Humidity <95% RH, non-precipitating air
F-06 Mounting flange
Galvanized steel
φ: 32mm
Tmax: 700°C
A-B/xx Immersion sleeve, brass, nickel-plated
φ: 8mm
Tmax: 150°C
Pmax: 10 bar
A-Sxx Immersion sleeve, stainless steel
φ: 8mm
Tmax: 600°C
Pmax: 40 bar

Dimensions(mm)



Water Or Oil Digital Temperature Transmitter 0-10V Output IP65 0


Ordering Guide



KTP110-E-I



Model Element Inserted length(EL)
KTP110 NTC10K (E) 50mm (I)
Pt100 (F) 100mm (K)
Pt1000 (G) 150mm (L)
    200mm (M)
    250mm (N)
    300mm (O)
    400mm (P)



Water Or Oil Digital Temperature Transmitter 0-10V Output IP65 1



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
