Product Details:
|
Name: | Liquid Flow Switches | Customized Support: | OEM |
---|---|---|---|
Warranty: | 1 Year | Certification: | CE |
Contact Arrangement: | SPDT | Electrical Rating: | 15(8)A 24/250VAC |
Permissible Temperature: | Paddle(-20 ~ 120℃) | Installation: | Vertical Installation |
Delivery: | 3-5 Working Days | Cable: | M18 |
Sensing Element: | Paddle | Protection: | IP65 |
Color: | White | ||
Highlight: | Brass Liquid Flow Switches 24V,24V Brass Liquid Flow Switches,24V 15A on off water flow switch |

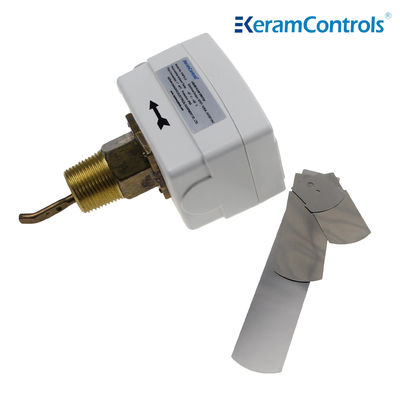

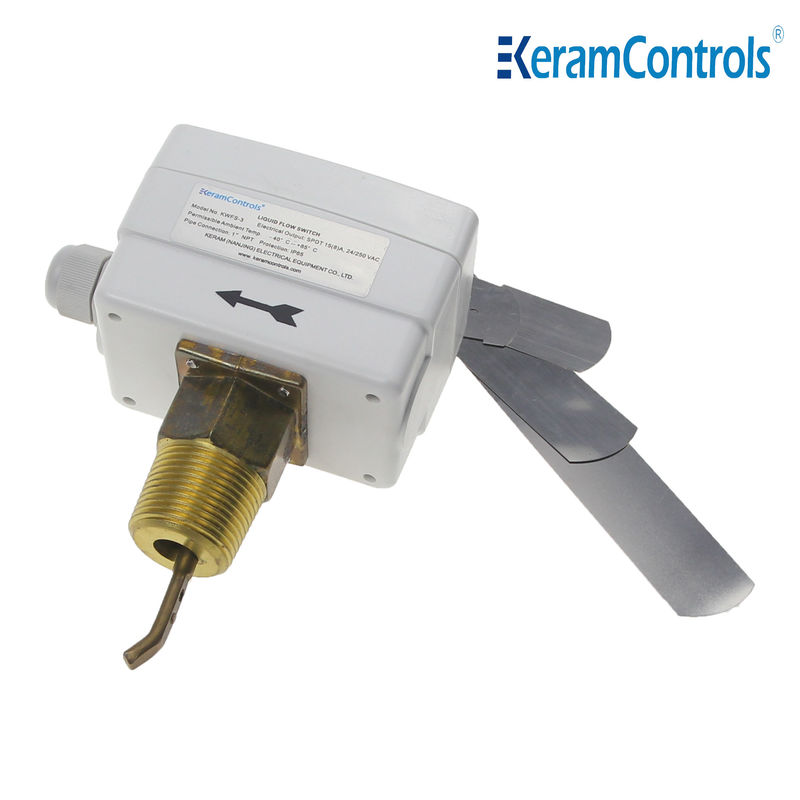

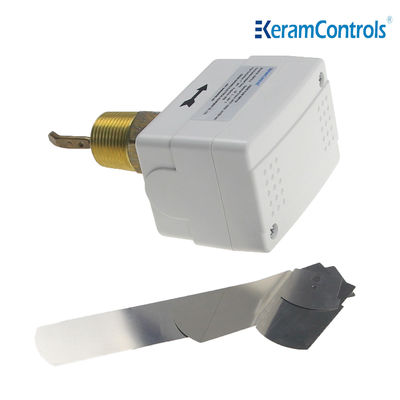

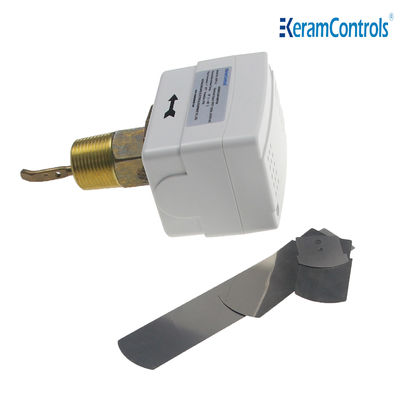

KWFS Series Liquid Flow Switch
The KWFS series liquid flow paddle switch, suited for pipes of industrial plants: heating and air conditioning, refrigeration systems and heat pumps. Flow control of water and normal media.
The paddles are adjustable to fit 1 to 8" size pipe.
The KWFS series liquid flow paddle switch offers an economical flow proving solution.
Control and monitor liquid flow of boilers, pumps, etc., of heating, cooling, and air conditioning equipment.
Features
● Flow control of water and normal media
● Renovated SPDT micro switch ensures the reliable switch function
●15(8A)250VAC switch rating
● IP65, class I enclosure
● Set point adjustable
● Stainless steel paddle
●Brass material
● Max. liquid temp 120℃
● Max working pressure 13.5Ba
Type of operation | On/Off,single-stage,micro switch |
Output | SPDT 15(8A) 24/250VAC |
Flow rates | See flow rate table |
Flow rate setting adjustment | Internal screw |
Sensing element | Paddle |
Liquid applications | Hot, chilled, well, pool and sea water,Brine or ethylene glycol |
Parts material in contact with fluid | Brass |
Paddle material | Stainless steel |
Liquid temperature | -20℃~120℃ |
Permissible ambient temperature | -40℃~85℃ |
Permissible ambient humidity | 10…90% RH, non-condensing |
Cable entry | M18 Fitting |
Housing | Fire Resistance ABS or PC |
Protection | IP65 |
Color | White |
Weight | 1.0Kg |
Types of Model
Model | Connection |
KWFS-1 | 1/2" -14 NPT |
KWFS-2 | 3/4" -14 NPT |
KWFS-3 | 1" -11½ NPT |
Line Pipe Size(in.) | 1 | 1-¼ | 1-½ | 2 | 2-¼ | 3 | 4 | 4Z | 5 | 5Z | 6 | 6Z | 8 | 8Z | |
Min.flow | Flow Increase ①&②Connected |
4.2 (1.0) |
5.8 (1.3) |
7.5 (1.7) |
13.7 (3.1) |
17.6 (4.0) |
27.5 (6.2) |
64..7 (14.7) |
35.2 (8.0) |
12.5 (28.4) |
57.01 (12.9) |
90.0 (43.1) |
74.0 (16.8) |
374.7 (85.1) |
204.7 (46.5) |
Flow Decrease ①&③Connected |
2.5 (0.6) |
3.7 (0.8) |
5.0 (1.1) |
13.7 (2.2) |
11.9 (2.7) |
19 (4.3) |
50.1 (11.4) |
26.9 (6.1) |
101.1 (22.9) |
41.0 (9.3) |
158.0 (35.9) |
54.0 (12.3) |
319.7 (72.6) |
170.0 (3806) |
|
Max.flow | Flow Increase ①&②Connected |
9.2 (2.1) |
13.3 (3.0) |
17.6 (4.0) |
26.9 (6.1) |
30.8 (7.0) |
50.2 (11.4) |
127.6 (29.0) |
81.0 (18.4) |
245.0 (55.6) |
118.0 (18.4) |
374.7 (85.1) |
144.0 (32.7) |
759.5 (172.5) |
415.0 (94.2) |
Flow Decrease ①&③Connected |
8.1 (1.9) |
12.5 (2.8) |
16.3 (3.7) |
25.1 (5.7) |
28.6 (6.5) |
471 (10.7) |
122.0 (27.7) |
76.2 (17.3) |
234.7 (53.3) |
111.0 (25.2) |
359.7 (81.7) |
134.7 (30.6) |
729.6 (165.7) |
400.6 (90.8) |
Note:
①For flow rates with suffix "Z", the 6 inch paddle must be installed.
②The flow rate unit of the above table is GPM (m /h)
The flow switch can be installed in every position far from elbows or throttlings, with arrow on flow direction. If pipe is vertical, recalibrate range to balance paddle weight. If the device is downwards mounted, take care to slags and apply it in a straight pipe that is far from filters,valves,etc.,with length at least 5 times the diameter of pipe upstream and downstream the unit.
Note:
The flow switch is factory calibrated at its minimum sensitivity.To increase the set valve,turn the adjustment screw clockwise.The cut-out valve must be ≥the minimum flow necessary to guarantee the protection of the plant.
Install Paddle | |
Pipe | NO. |
1" | 1 |
11/4" | 1 |
11/2" | 1 |
2" | 1,2 |
21/2" | 1,2 |
3" | 1,2,3 |
4" | 1,2,3 |
4"Z | 1,2,3,4 |
5" | 1,2,3 |
5"Z | 1,2,3,4 |
6" | 1,2,3 |
6"Z | 1,2,3,4 |
8" | 1,2,3 |
8"Z | 1,2,3,4 |
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
