NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor

NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor
NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor
NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor

Large Image :  NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor

Product Details:
Place of Origin: China
Brand Name: Keramcontrols
Certification: CE
Model Number: KTH510
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $51-$69/pic
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: L/C, T/T
Supply Ability: 1000pics/month

NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor

Description
Model: KTH510 Power Supply: 16-30VDC(2wire 4-20mA)/16-30V AC Or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output: 4-20mA/0-5V/0-10V/RS-485
High Light:

RS485 high temperature humidity transmitter

,

NEMA 4 high temperature humidity transmitter

,

30m/s temp humidity pressure sensor

NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor



Description

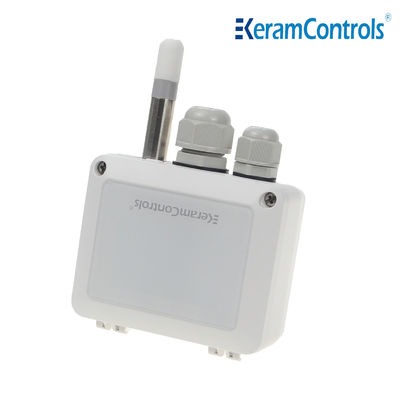

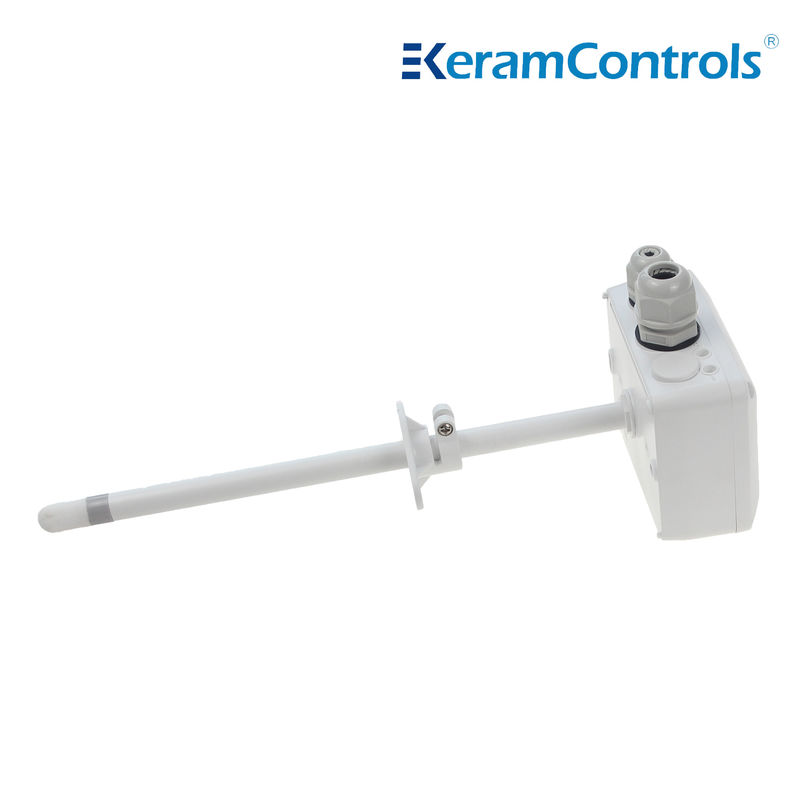

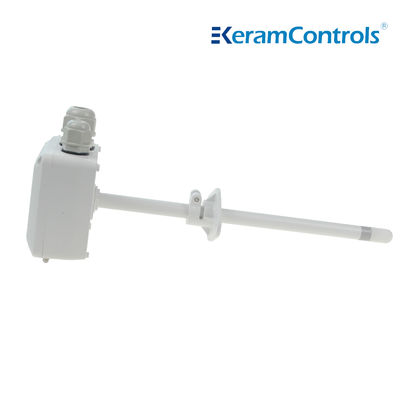

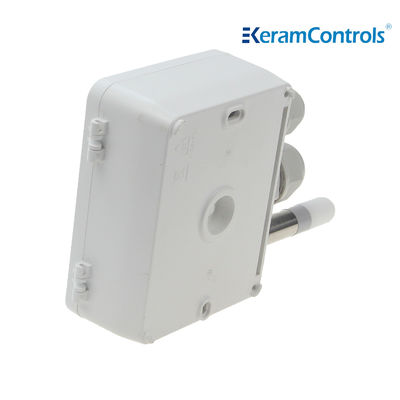

KTH510 temperature and humidity transmitters can be used to measure relative humidity and temperature in various HVAC applications, as well as monitor building energy management systems. This series of products includes duct-mounted transmitters, IP65 protection grade wall-mounted transmitter. KTH510 series temperature and humidity transmitters are easy to install, have high accuracy, stable and reliable operation, and are ideal for various harsh environments.


Feature



  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application



  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data



Model KTH510
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)



NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor 0NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor 1


Measuring range adjustment



NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor 2


Output setting(3 wire Model)



NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor 3


Ordering guide



KTH510——Output——Installation——Filter



Model Output Installation Filter
KTH510 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)



NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor 4

NEMA 4 High Temperature Humidity Transmitter 30m/s Temp Humidity Pressure Sensor 5

FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
