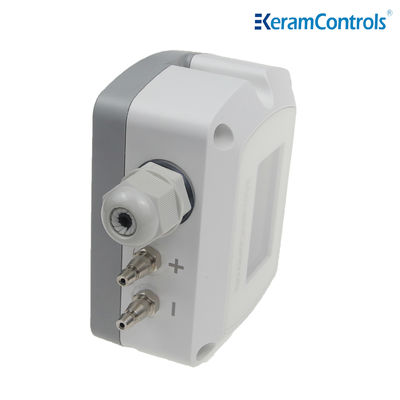

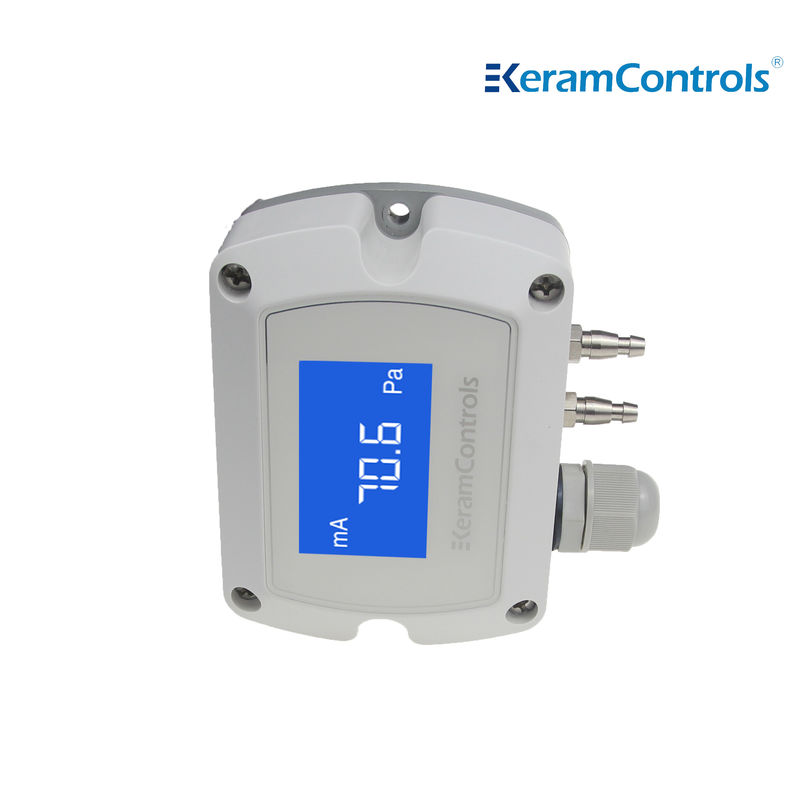

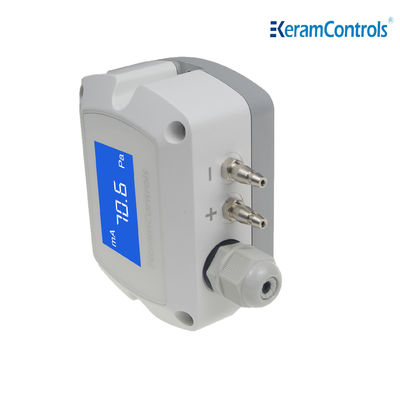

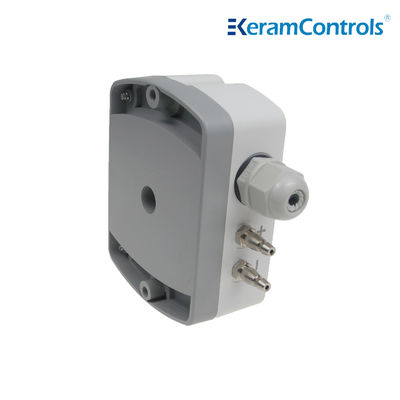

4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor

4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor
4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor
4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor 4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor 4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor 4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor 4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor

Large Image :  4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor

Description
Model: KDP210 Measurement Units: Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy: <±1% FS@-5 To +65℃
High Light:

KDP210 DPT Differential Pressure Transmitter

,

4-20mA DPT Differential Pressure Transmitter

,

LCD display dpt sensor

4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor



Description



KDP series differential pressure transmitters are engineered for building automation in the HVAC/R industry. The most technologically advanced transmitters on the market measuring static and differential pressure, with field selectable units, range and output, all in a single device.



KDP series devices include:
• Multiple measurement units, field selectable via jumper, including: inWC, mmWC, Pa, mbar.
• Proportional output options including: voltage (0–10 V / 0-5V) and current (4–20 mA).


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection
  • When ≤100Pa,accuracy<±3%FS±2Pa

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display(4-20mA 2 wire without backlight)
Cable Gland M16*1.5

Dimension(mm)



4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor 0

4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor 1


Measuring range adjustment



4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor 2


Output setting(3 wire Model)



4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor 3

4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor 4


Manual Zero-point correction



4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor 64-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor 7

4-20mA DPT Differential Pressure Transmitter LCD Display DPT Sensor 8



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
