Product Details:
|
| Range: | -0.5-3bar | Operating Temperature:: | -20~120℃ |
|---|---|---|---|
| Maximum Pressure: | 16.5bar | Material: | Stainless Steel |
| Ingress Protection: | IP54 | Media: | Air And Liquid |
| Highlight: | Stainless steel Adjustable Pressure Switches,IP54 Adjustable Pressure Switches,CE adjustable air compressor pressure switch |
||
The pressure switch adopts high-precision, high-stability pressure sensor and transmission circuit, and then uses the special CPU modular signal processing technology to realize the detection, display, alarm and control signal output of the medium pressure signal. Pressure switches can be widely used in petroleum, chemical, metallurgy, electric power, water supply and other fields to measure and control the gauge pressure and absolute pressure of various gases and liquids. It is an ideal intelligent measurement and control instrument for industrial sites.

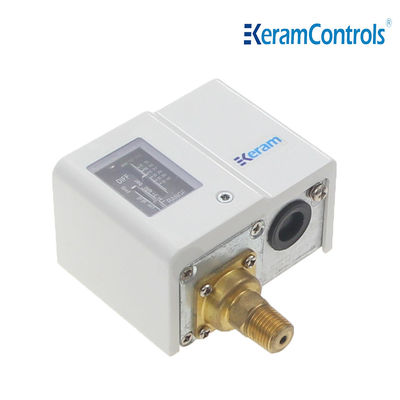

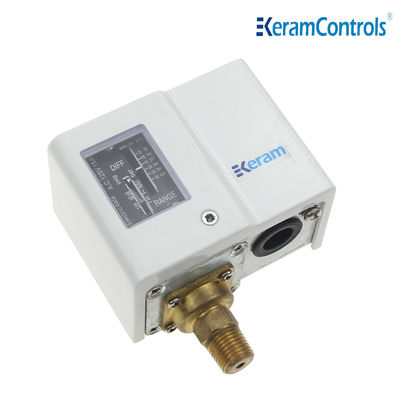

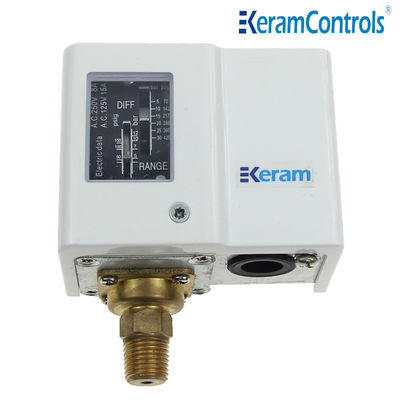

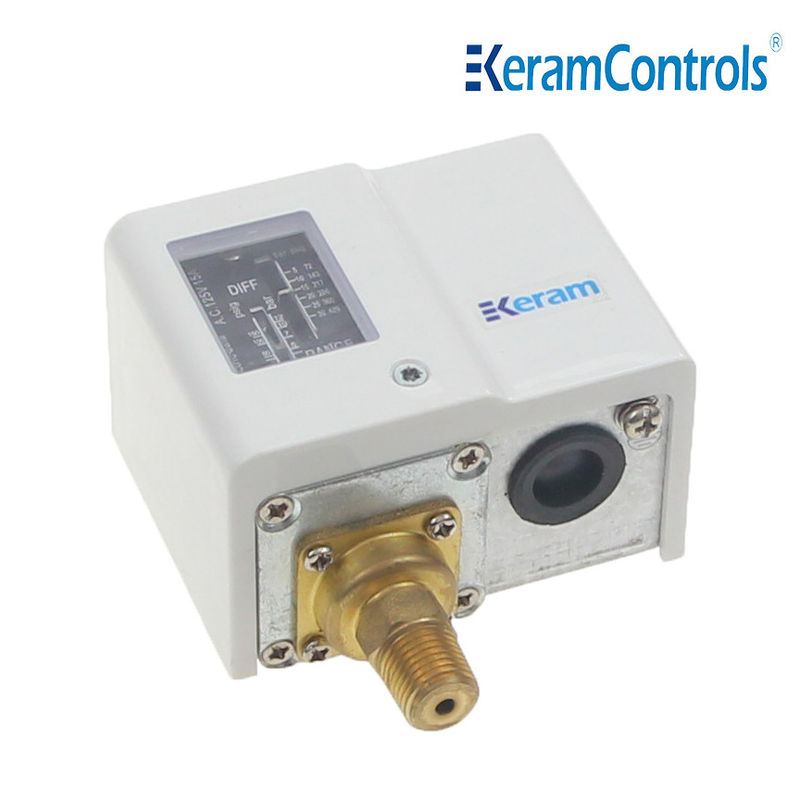

Q series single pressure controls can be not only used in fluorinated refrigerant, but also in the air and liquid(allowed liquid temp. -20 to 120°C)
Adjustable range and differential settings
Renovated SPDT micro-switch ensures the reliable switch function
Flexible mounting bracket suits various kids of application
Upper lid is optional (IP44)
Various connections are available on request
Automatic and manual reset version
The material of bellows is copper and pressure interface is brass
Several models available in drip-proof enclosure for marine applications or in explosion-proof enclosure for special applications
CE approval
| Model | Range(bar) | Differential(bar) | Factory setting(bar) | Max bellows pressure | |||
| Min | Max | Min | Max | OFF | ON | ||
| Q3 | -0.5 | 3 | 0.35 | 1.5 | 2 | 1 | 16.5 |
| Q6 | -0.5 | 6 | 0.6 | 4 | 3 | 2 | 16.5 |
| Q6M | -0.5 | 6 | ≤1 | 3 | Manual reset | 16.5 | |
| Q10 | 1 | 10 | 1 | 3 | 6 | 5 | 16.5 |
| Q16 | 5 | 16 | 1 | 4 | 10 | 8 | 33 |
| Q20 | 5 | 20 | 2 | 5 | 16 | 3 | 33 |
| Q30D | 5 | 30 | 3 | 10 | 20 | 15 | 33 |
| Q30 | 6 | 30 | 3-5(fixed) | 20 | 15-17 | 33 | |
| Q30M | 6 | 30 | ≤4 | 20 | Manual reset | 33 | |
Note:
Calibration unit on scale plate with “bar” & “psig”, could be revised into “Mpa”& “kgf/cm2” if required by customers. Connections could have selections as British Flare (E), solder (C) and capillary (S).
|
125V AC |
250V AC |
24V DC |
||
| Non-Inductive Current | 20A | 10A | 10A | ||
| Inductive Current | Full Load Current | 15A | 8A | 8A | |
| Locked Roter | 72A | 64A | |||
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
