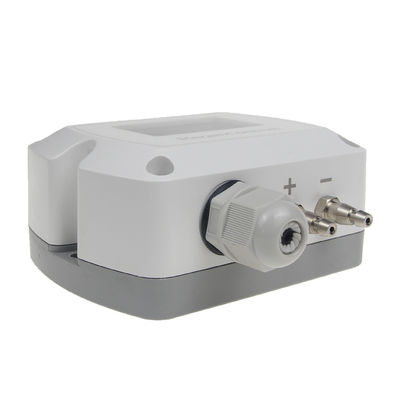

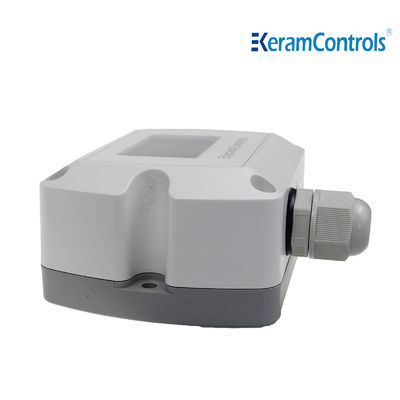

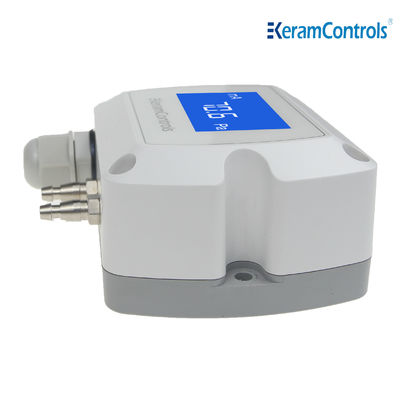

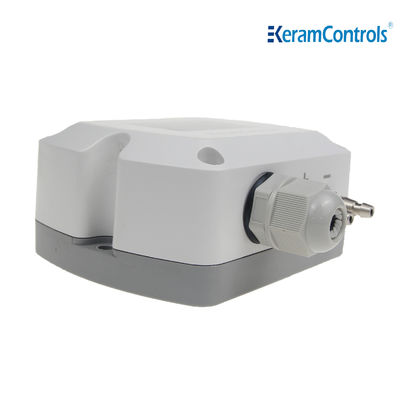

Buildings DPT Differential Pressure Transmitter Sensor LCD Display

Buildings DPT Differential Pressure Transmitter Sensor LCD Display
Buildings DPT Differential Pressure Transmitter Sensor LCD Display
Buildings DPT Differential Pressure Transmitter Sensor LCD Display Buildings DPT Differential Pressure Transmitter Sensor LCD Display Buildings DPT Differential Pressure Transmitter Sensor LCD Display Buildings DPT Differential Pressure Transmitter Sensor LCD Display Buildings DPT Differential Pressure Transmitter Sensor LCD Display

Large Image :  Buildings DPT Differential Pressure Transmitter Sensor LCD Display

Product Details:
Place of Origin: China
Brand Name: KeramControls
Certification: CE
Model Number: KDP210
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $69-$51/pic
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C
Supply Ability: 2000pic/month

Buildings DPT Differential Pressure Transmitter Sensor LCD Display

Description
Model: KDP210 Measurement Units: Pa,mmH2O,inWG,mmHG,KPa,mbar
Repeat Stability: ±0.01 % At FS /Year
High Light:

0.5s DPT Differential Pressure Transmitter

,

buildings DPT Differential Pressure Transmitter

,

LCD Display dpt sensor

0-+75pa Differential Pressure Transmitter LCD Display



Description



The differential pressure transmitter is used to prevent the medium in the pipeline from directly entering the transmitter, and the pressure-sensitive diaphragm and the transmitter are connected by a capillary filled with fluid. It is used to measure the liquid level, flow and pressure of liquid, gas or steam, and then convert it into 4~20mA DC signal output.


Feature



  • Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
  • Auto zero manual calibration
  • Voltage, current, digital signal output
  • Standard accuracy <±1% FS
  • IP65 house protection

Application



  • HVAC system
  • Pharmaceutical clean rooms
  • Electronic clean rooms
  • Medical clean rooms
  • Commercial buildings
  • Public transport hub

Technical data



Model KDP210
Measurement Units Pa,mmH2O,inWG,mmHG,KPa,mbar
Accuracy <±1% FS@-5 to +65℃
Response Time 0.5s
Repeat Stability ±0.01 % at FS /Year
Resolution 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG
Media Air and neutral gases
Operating Temperature -20…+70℃
Storage Temperature -40…+60℃
Power Consumption <1.5W
Tolerated over pressure x15
Power Supply 16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal 4-20mA(2wire)
4-20mA(3wire)
0~5V/0~10VDC(3wire)
RS-485
Customized
Auto Zero Manual calibration
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA4
Display Backlight LCD display
Cable Gland M16*1.5

Dimension(mm)



Buildings DPT Differential Pressure Transmitter Sensor LCD Display 0

Buildings DPT Differential Pressure Transmitter Sensor LCD Display 1


Measuring range adjustment



Buildings DPT Differential Pressure Transmitter Sensor LCD Display 2


Output setting(3 wire Model)



Buildings DPT Differential Pressure Transmitter Sensor LCD Display 3

Buildings DPT Differential Pressure Transmitter Sensor LCD Display 4


Manual Zero-point correction



Buildings DPT Differential Pressure Transmitter Sensor LCD Display 5


Ordering guide



KDP210-Range-display-output



Model Ranges Display output
KDP210 -100~+100Pa (1) LCD backlight (D) 4-20mA(2 wire) (E)
-1000~+1000Pa (2)     4-20mA(3 wire) (F)
-2000~+2000Pa (3)     0-5/0-10VDC (3 wire) (G)
-10000~+10000Pa (4)     RS-485 (H)
        Customized



Buildings DPT Differential Pressure Transmitter Sensor LCD Display 6Buildings DPT Differential Pressure Transmitter Sensor LCD Display 7

Buildings DPT Differential Pressure Transmitter Sensor LCD Display 8



FAQ



1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.



2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.



3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.



4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.



5 Q: What is the warranty of your products?

A: Normal is 12 months.



6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
